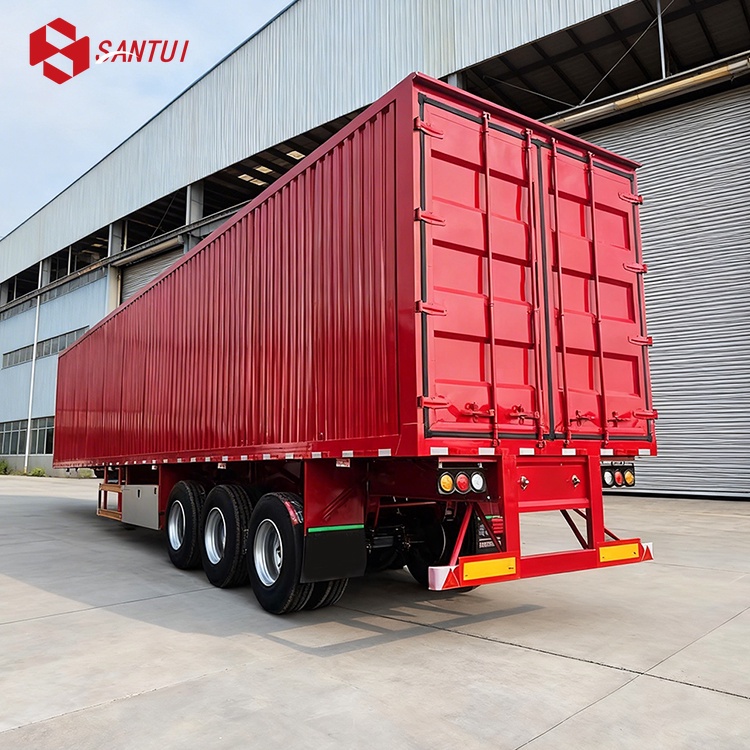

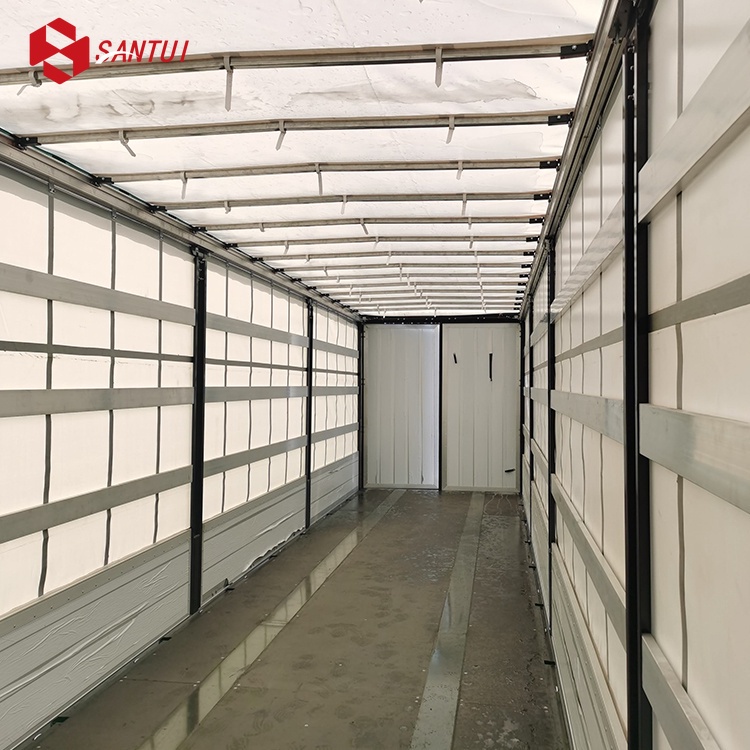

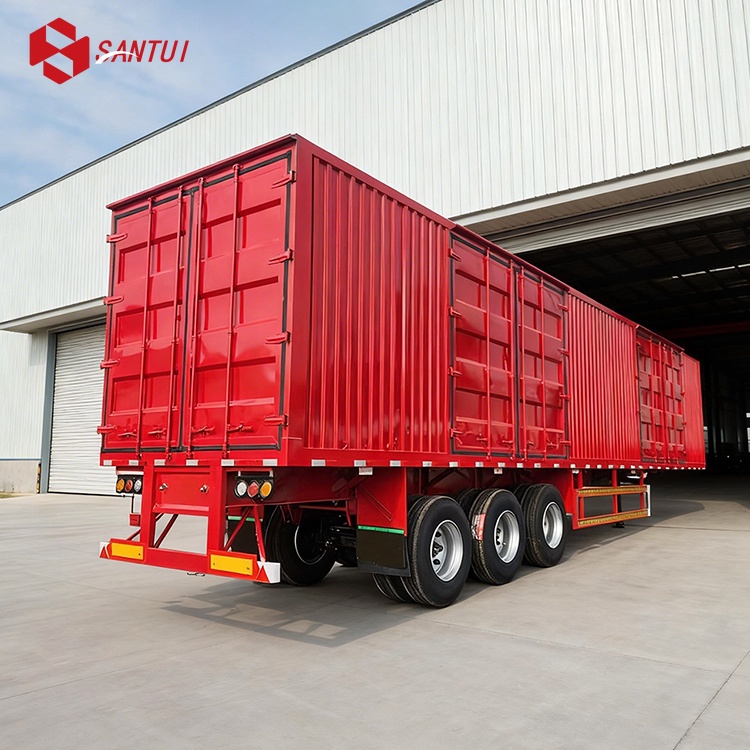

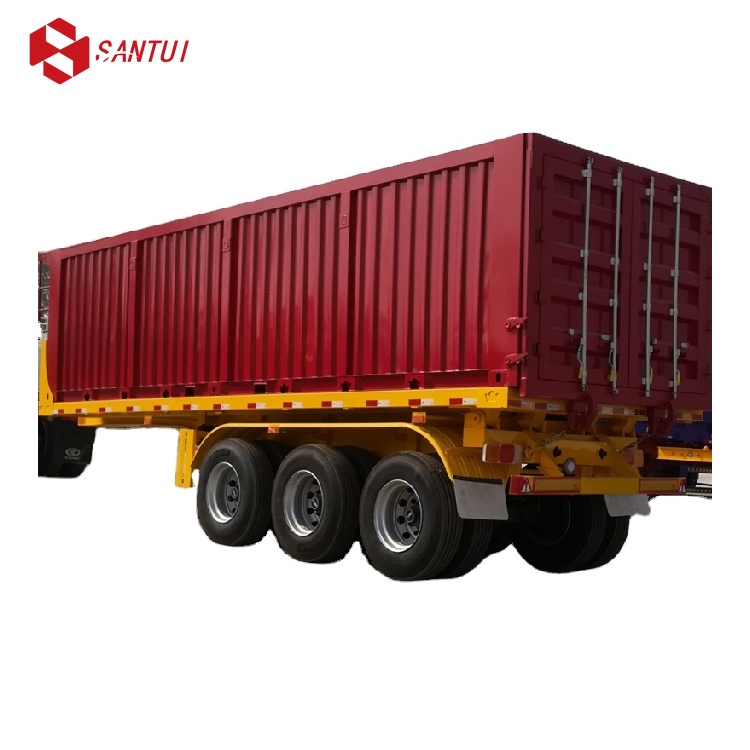

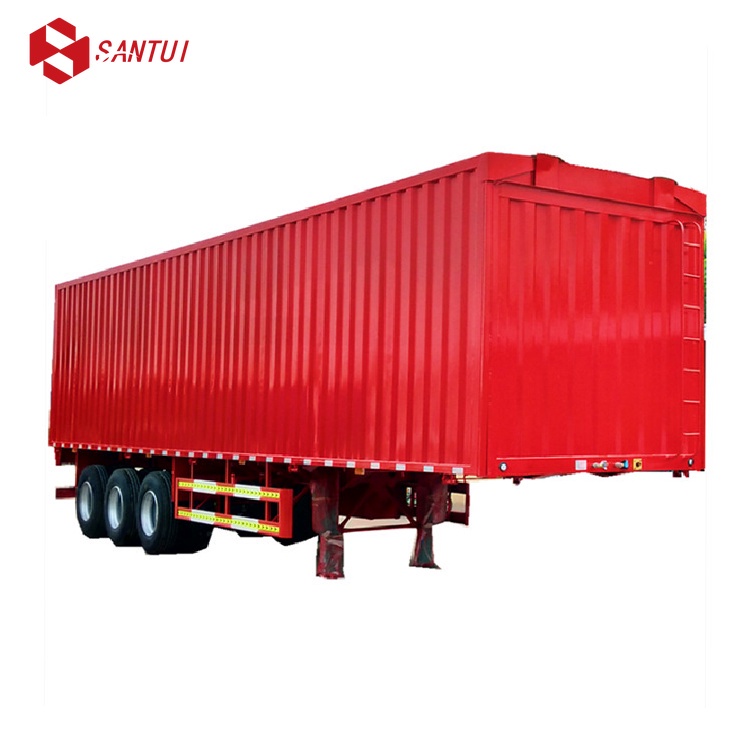

Factory Direct Sale 3 Axles 13m Steel Semi-Trailer Dry Van Enclosed Cargo Trailer Truck Trailers

Product Description

Item	Parameter
Dimension	13750,13500,13000,12500,12000,11500,11000,10500,10000×2550,2500×3350,3450,3550,3650,3750,3850,3950
Load Capacity(T)	20‑80Tons/customizable
Axle	2/3/4 axles, 13T/16T
Rim	9.00‑22.5 9.75‑22.5(Specially designed and for oversea markets)
Tire	12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)
Suspension	Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets)
Spring leaf	90(W)mm13(Thickness)mm10Layer or 10mm12mm12Layers(Specially designed for oversea markets)
Support leg	D200T or Chinese brand 28Tons(Double speed)
Main beam	Height: 500mm , Q345/T700 Upper Plate: 14mm Down Plate: 16mm Middle Plate: 8mm
Side beam	16mm or 18mm steel channel(material: Q235steel)
Brake chamber	WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks
ABS	Optional
Tool box	1m0.5m0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
