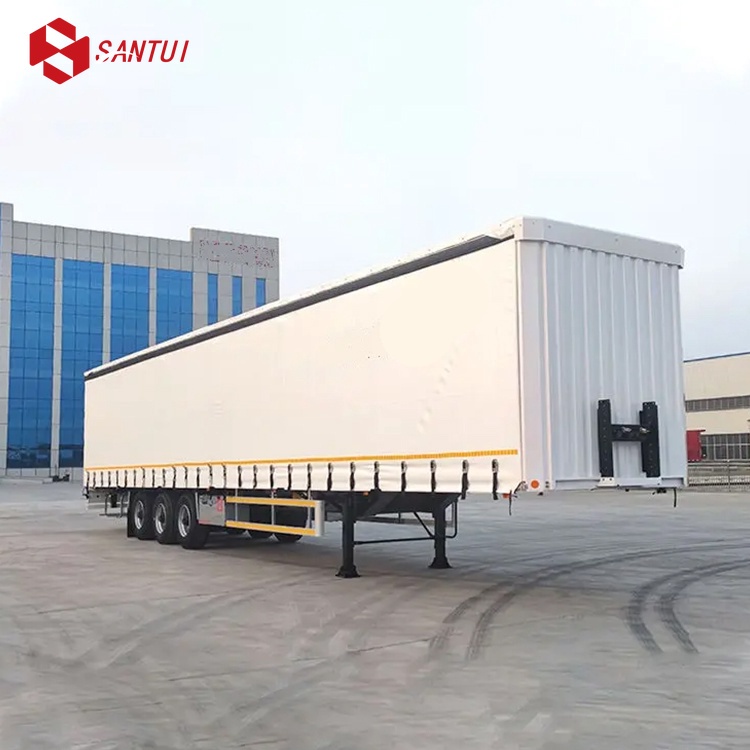

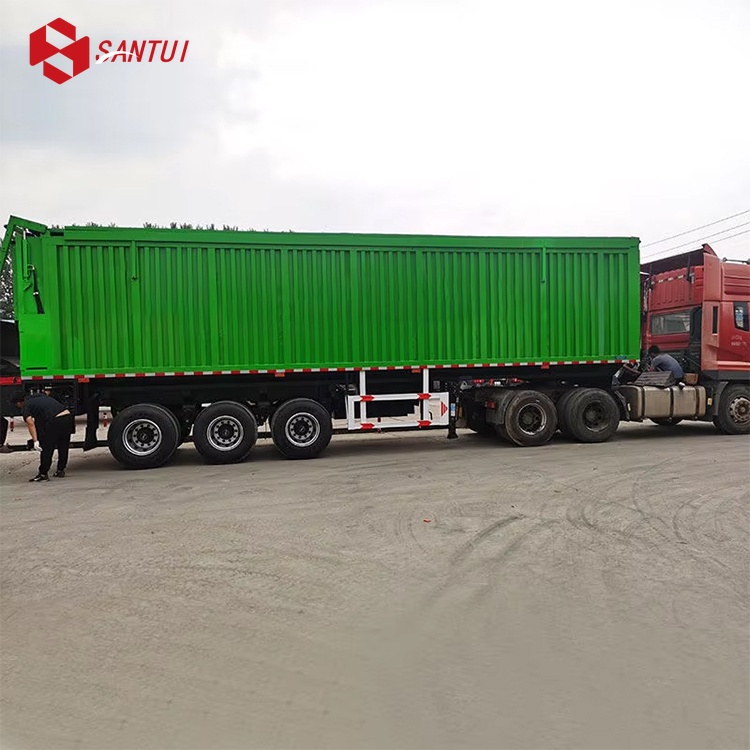

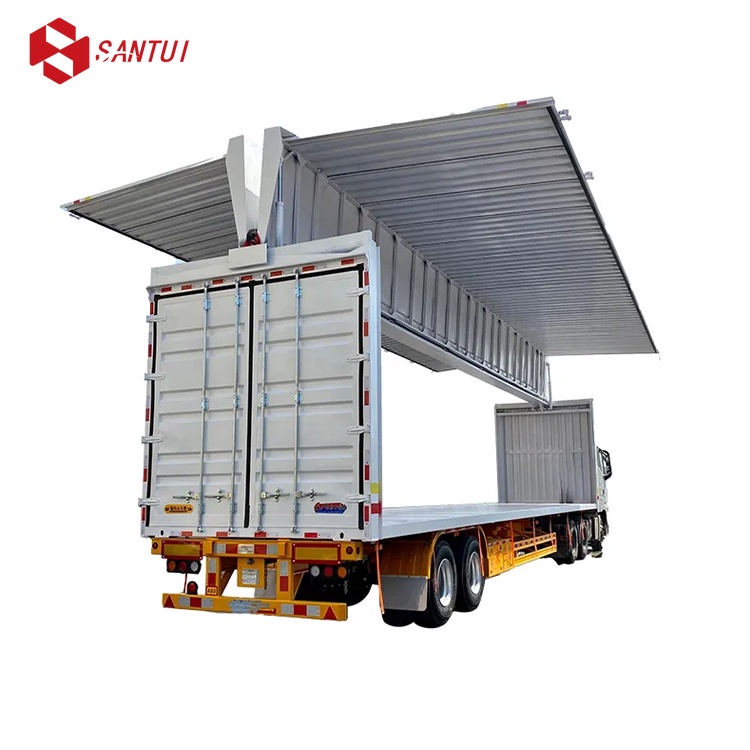

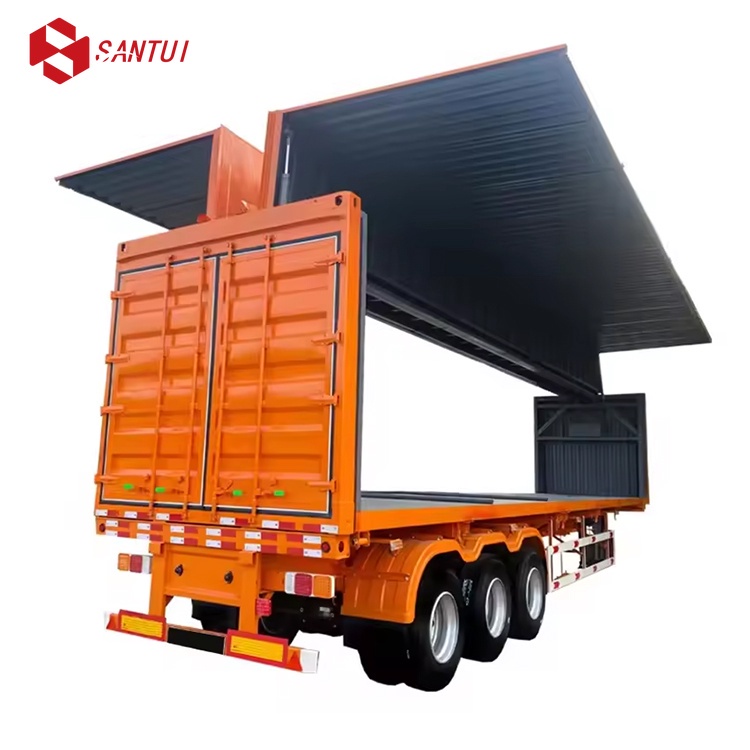

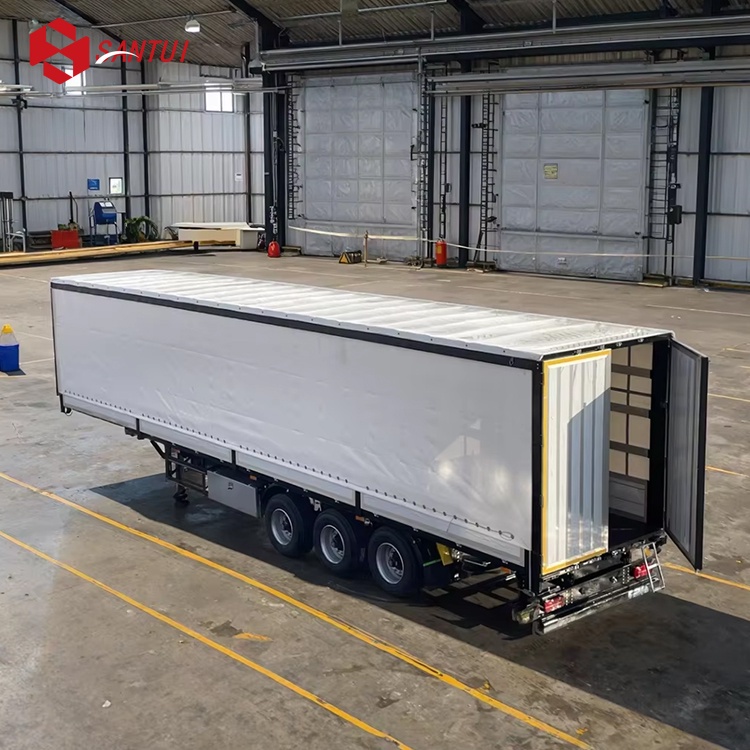

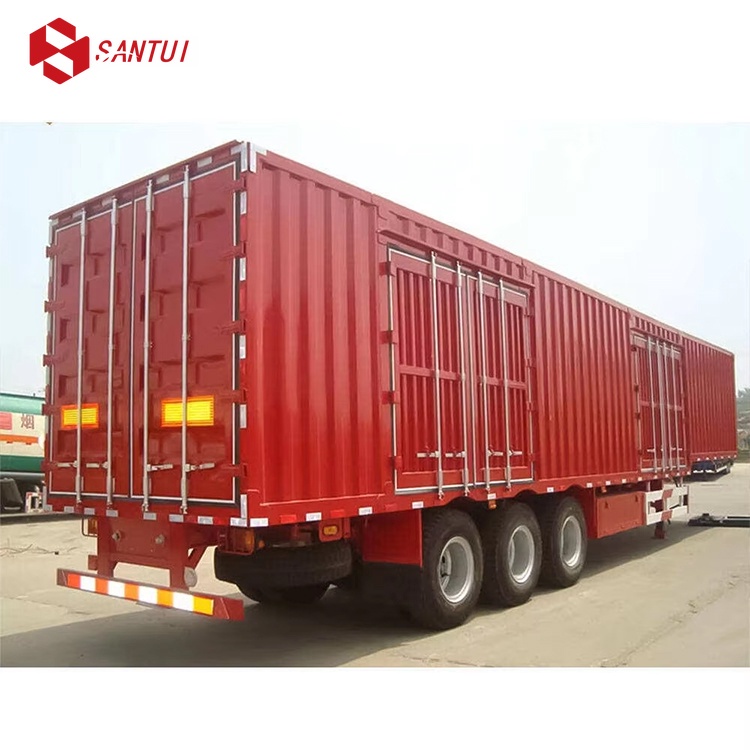

Box Semi Trailer Box Semi Trailer With Side Open Door

Product Description

Specification

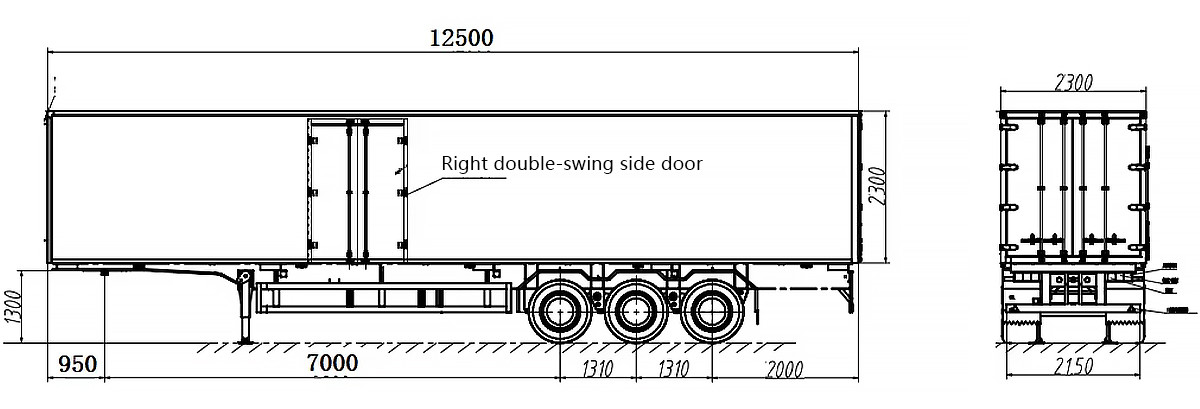

1. Overall dimension	13000 x 2500 x 3850 mm
2. Container dimension	12840 x 2400 x 2400 mm
3. Tare weight	9000 kg
4. Capacity	74 CBM
Standard Configuration
1. Axle	13 ton Fuwa brand, 150x150, 3 units
2. Suspension	Mechanical suspension
3. King pin	2", bolt on type
4. Landing gear	28 ton, two speeds
5. Tire	11R22.5, 12 units
6. Rim	8.25‑22.5, 12 units
7. Braking system	Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles
8. Electrical system	Dual circuit, 7‑way split pin receptacle plug, LED light
9. ABS	None
10. Painting	Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer
11. Mudguard	Plastic or steel
12. Others	1 tool box, 1 wheel carrier, excluding spare wheel
Optional Configurations
1. Air suspension	Firestone, Goodyear or Chinese brand
2. Lift axle system	/
3. ABS system	Wabco or Chinese brand
4. Axle	BPW 12 ton
