Product Description

ProductSide wall semi trailer
Tare Weight7.5 Tons (depends on final configuration)
Payload50 tons or customizable
Size12400×2610×1550mm (customizable)
Inside size12280×2300×600mm (customization)
Main BeamQ345B/T700 steel; Height 500mm; Upper Plate 14mm; Down plate 16mm; Middle plate 8mm or customization
Side Beam16mm channel steel (material is q235b steel)
Bottom Plate3mm Thickness (customization)
Sidewall Thickness1.5–2.5MM Q235 steel (customization)
Sidewall Height600mm (customization)
Axles13/16/20 tons, axle amount optional like 2/3/4 axles etc, axle brand optional like SAF, FUWA, BPW etc
King pin2.00'(50#), bolting king pin,  another brand according to customer
SuspensionMechanical suspension / air suspension (American or Geman)
Leaf Spring10pcs leaf spring, thickness 13mm, width 90mm
Landing gear28tons lifting capacity, Brand optional FUWA/JOST etc can be choose
Twist-Lock12 units (customization)
Tire specs12R22.5 / 315 80R22.5 / 11R20 / 12R20 Choose freely
Braking systemdual line brake system, Air chamber T30/30, 3×40L gas storage drums
Rim9.00-22.5 / 8.00-20 / 8.5-20
ABS systemNone or installed as your requirement
PaintingSanding, anti-corrosion, one primer paining add two layer top coat painting
Side GurdAccording to customer
Electrical system24 volt electrical system, 7 pin electrical connector, Parking stop, reverse, number plate and indicator lights, rear lights conform to european standard, rear front and side reflectors
spare tireTwo set of heavy duty spare wheel carriers, including a riser
Tool BoxOne Piece (1.0 × 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar
ColorAccording to customers requirements

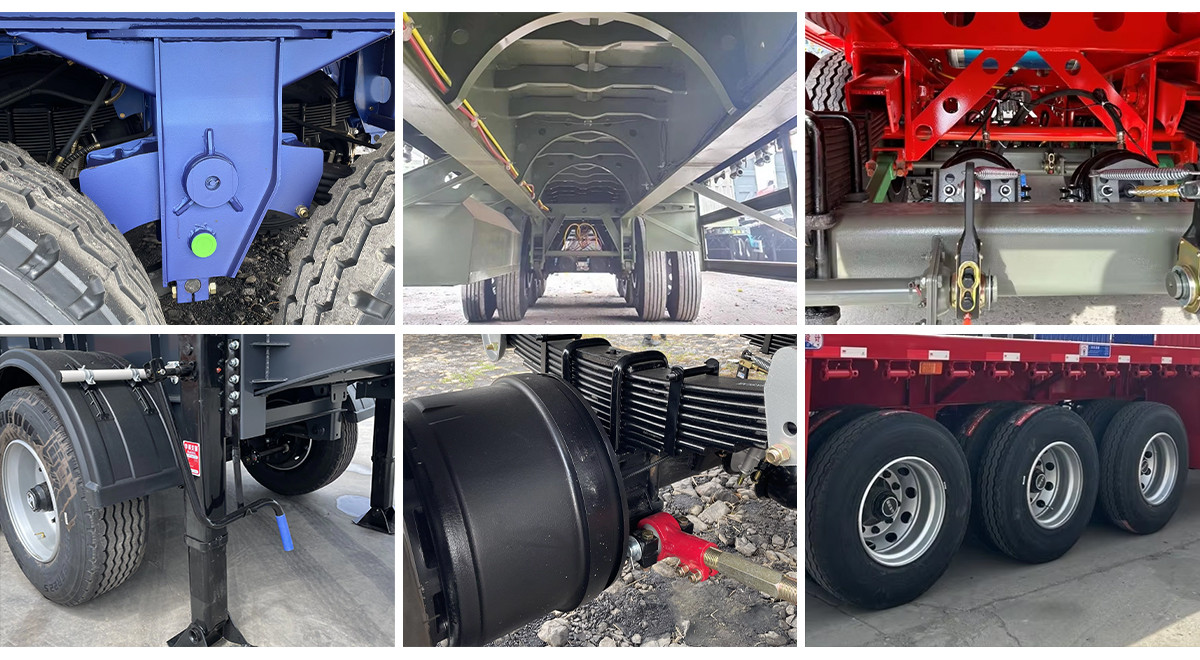

Product Display

1787735110951163754308591616.jpg@!w400
