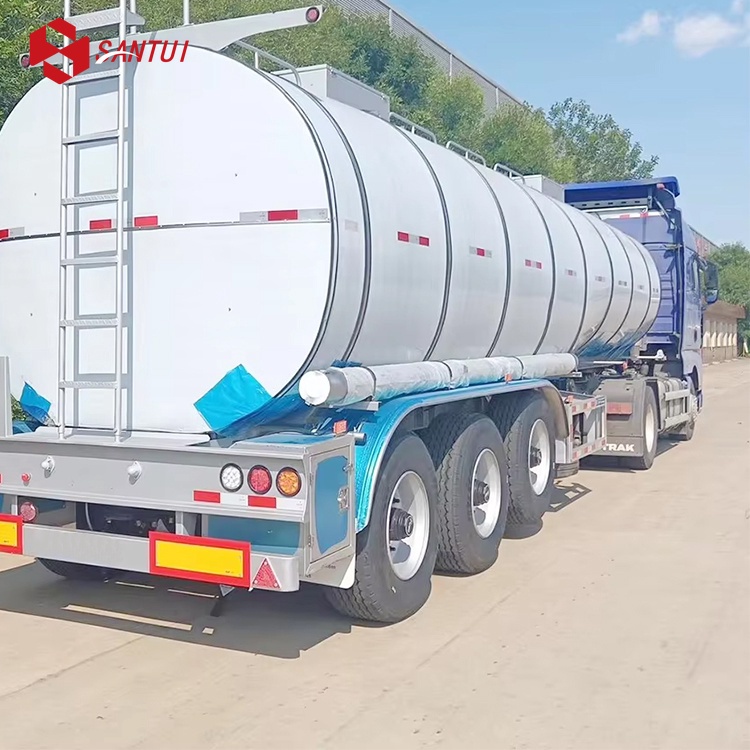

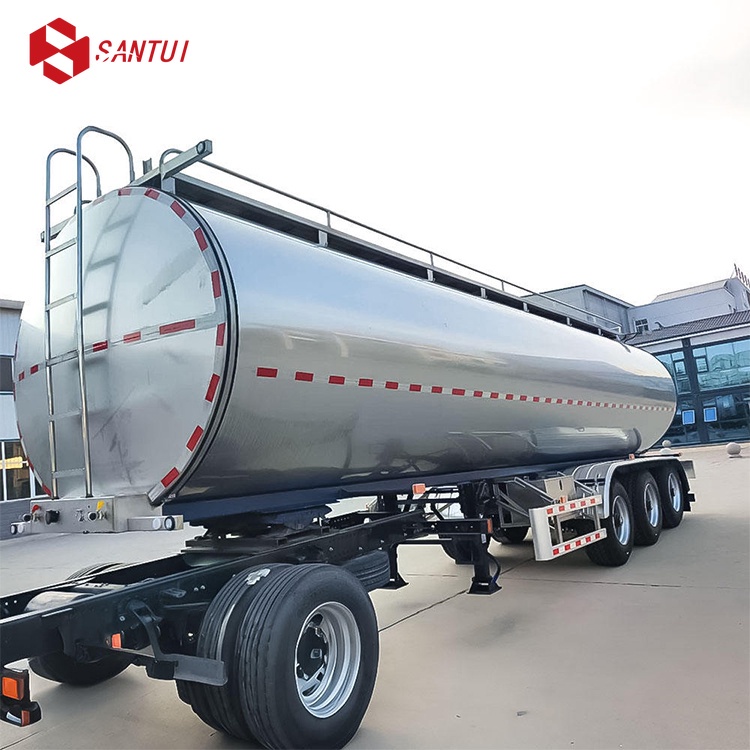

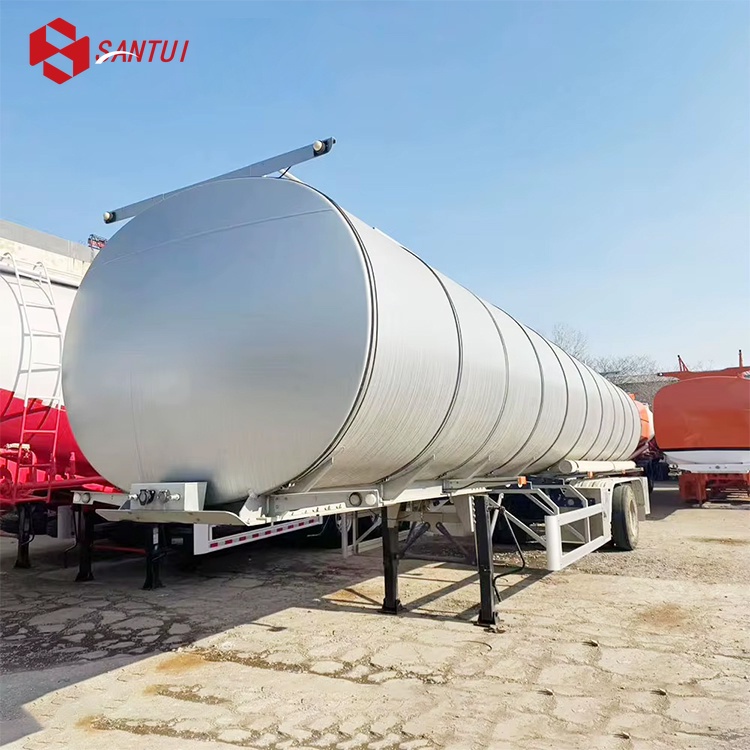

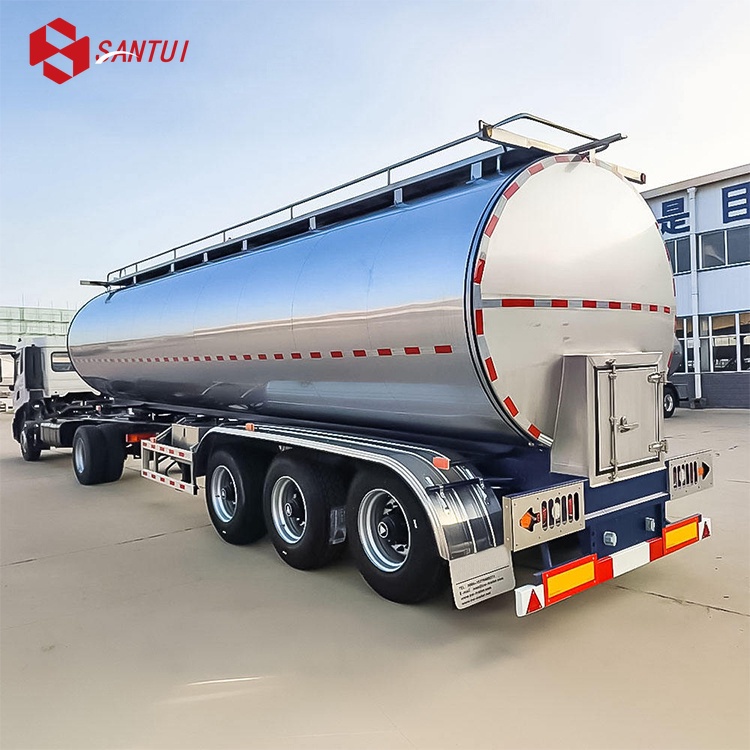

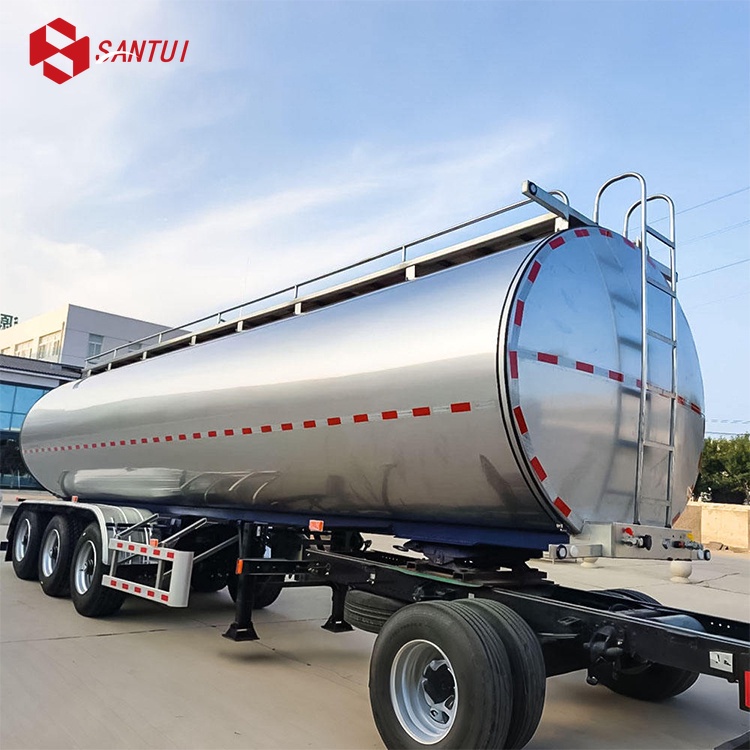

New / Refurbished Fuel Tank Semi Trailer /Oil Tanker Truck Fuel Tank Semi Trailer

Product Description

Trailer Model	Round Shape or Ellipse
Outside Dimensions	11000mm‑13000mmX2490mmX3950mm/3800mm‑3900mm
Tare weight	About 8‑12.8T
Total Volume	25m³‑60m³

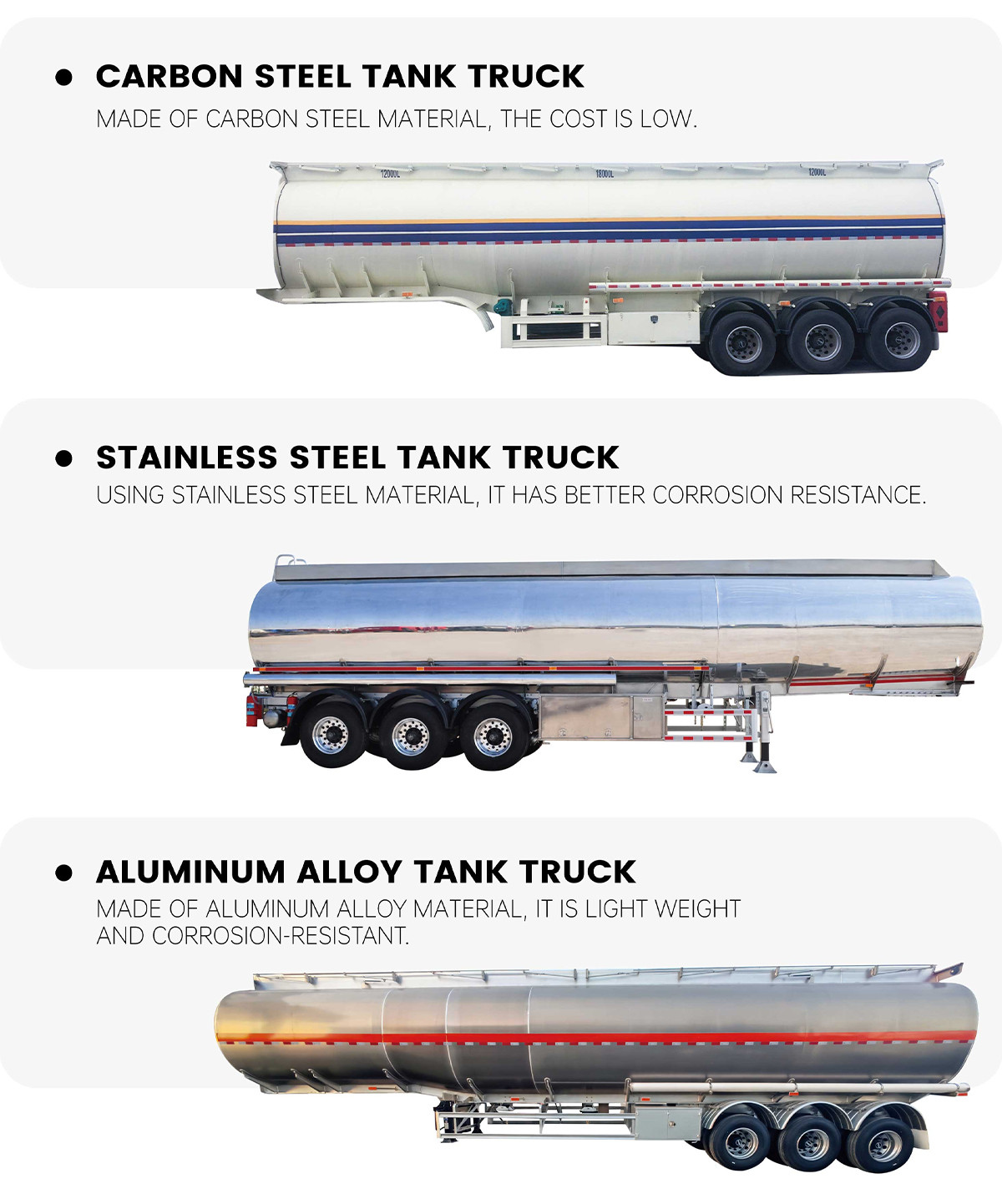

Material	Q235B/Q345B carbon steel 5XCT4 aluminum 5454 304 stainless steel
Tanker Body Material	6mm/5mm Q235B/Q345B carbon steel 7mm/6mm 5XCT4 aluminum 5454 5mm/4mm 304 stainless steel
Axles	13T/16T, FUWA/BPW brand
Axle Number	2/3/4/ Axle or multi axle
Main Beam	Height: 450mm‑520mm, upper plate thickness is 14mm‑25mm, middle plate thickness is 8mm‑12mm, down plate thickness is 16mm‑25mm; Material is Q345 manganese steel .
Tire	12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specification can be Optional)
King Pin	JOST brand 2.0 or 3.5 inch bolts type or Welding type
Support legs	JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed )
Rear ladder	Dismountable or foldaway
Wheelbase	8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm
Spring leaf	8/10/12/16 pieces
Manhole Cover	2/3/4/5/6 piece Carbon steel API manhole cover ,500mm European standards
Brake Chamber	6 double brake chamber
Electrical System	24V, 7core socket, lights according to European standards
Accessory	One tooling boxes ,Two spare tire carrier, Two fire extinguisher
Other tools	A waterproof toolbox. (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual)
Discharge mouth	diameter is 280mm
Receptacle	7ways (7wire harness)
