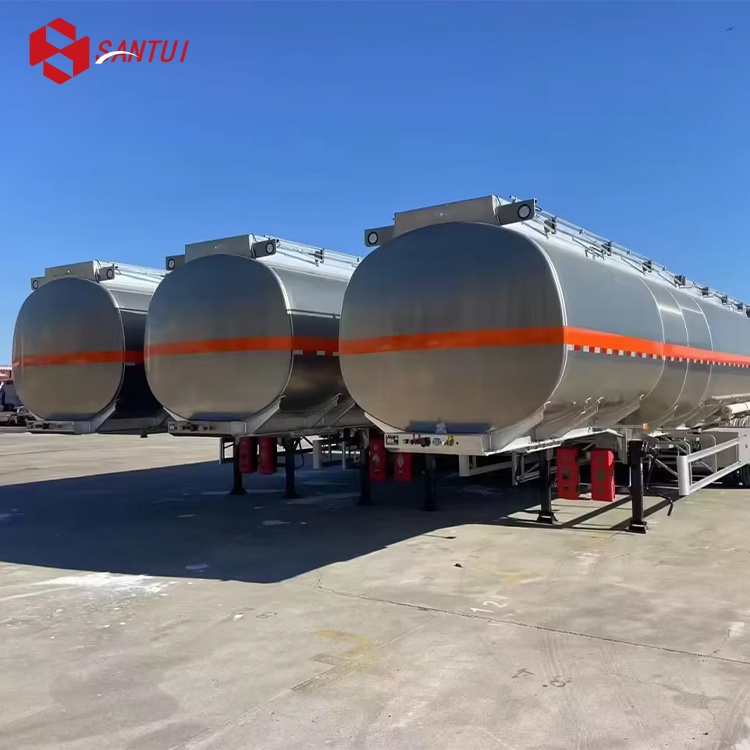

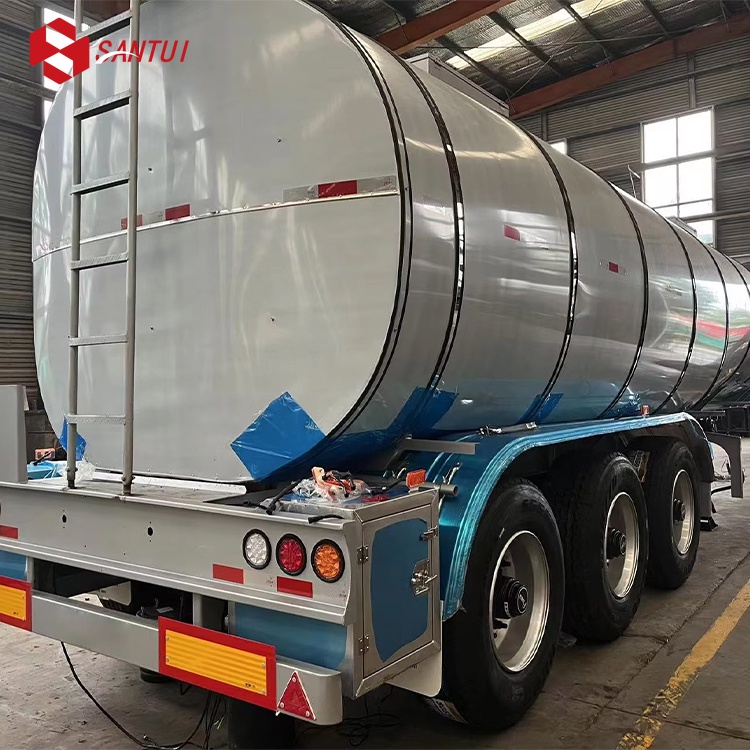

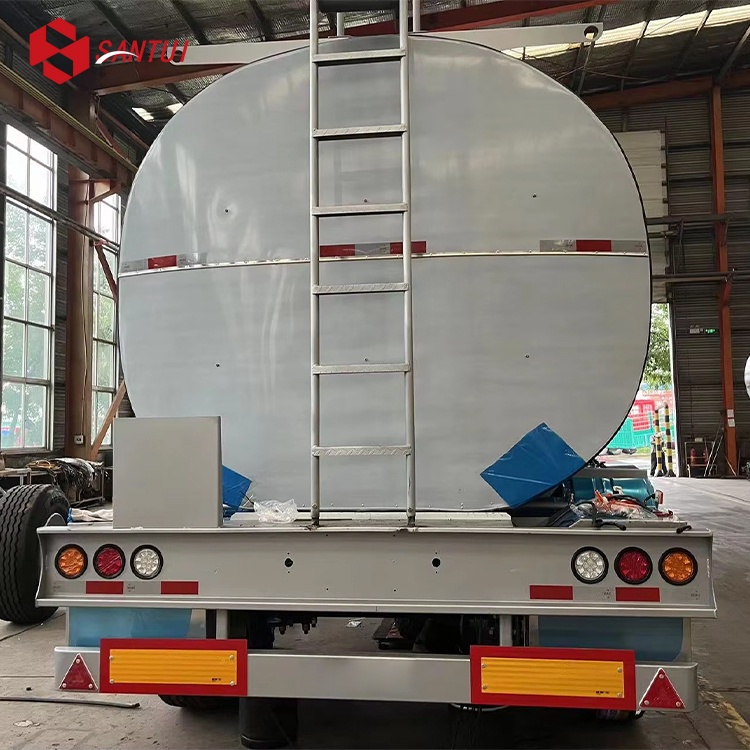

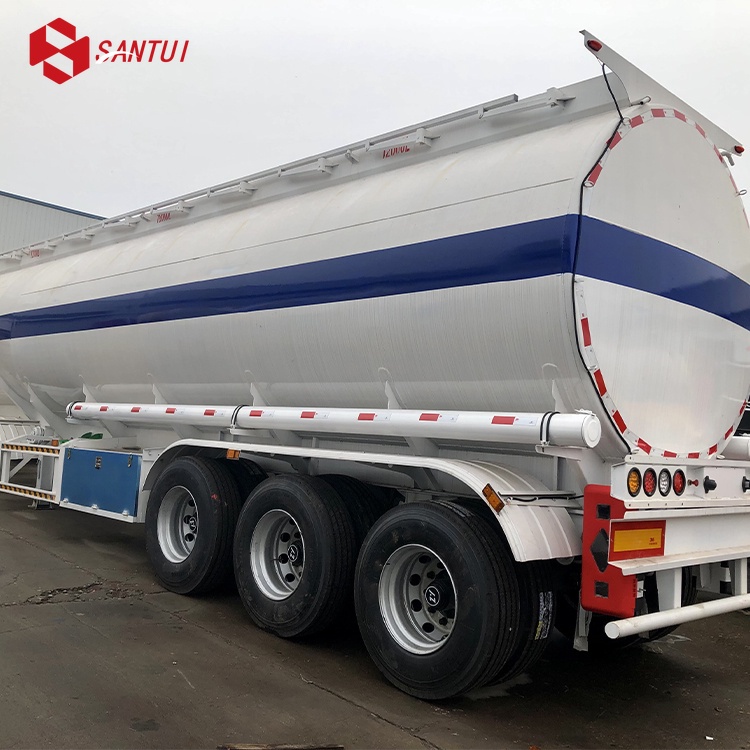

New / Refurbished 3- Axles Tank Truck 45000 Liters Steel Tanker Trailer

Product Description

Item	Specification
Product Name	oil fuel tank
Axle	Fuwa
Landing Gear	YaHua Brand
Size	1300025503900mm
Capacity	60T
King pin	50#/90#
Tire	12.00R22.5
Accessories	One standard tool box, fire extinguisher 2 pcs
Painting	Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Main beams	Opting for high tensile steel Q345B welded by automatic submerged‑arc processes
Packing	Polish with wax before shipping
Model Name	Oil Fuel tank trailer
Function	oil and fuel
Overall Dimension	(LWH) 1150025003800mm
Volume	40m³
Tare weight	10500KG
Tank body	Q235/4mm steel
End plate	Q235/6mm steel sheet
Axle	3 axle 13T Fuwa Brand
Suspension system	Mechanical Suspension
Steel Spring	10/10/10 leaf spring suspension
Manhole cover	500mm manhole cover 8 sets
Tire	12.00R20 12pcs
Rims	9.0, 12 pieces
Discharge valve	4"disc valve ,8pcs
Discharge pipe	4"seamless steel tube ,8pcs
Spare Wheel Bracket	2" bolt‑in king pin
Landing gear	Fuwa brand two‑speed,manual operating ,heavy duty landing gear 28t
Tool box	one piece
Compartment	8
Braking system	RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Electrical system	voltage:24V 2.Receptacle:7ways(7wire harness)
Tail lamp	Tail lamp with turn signal,brake light&reflector,side lamp etc.
Cable	One set 6‑core standard Cable
