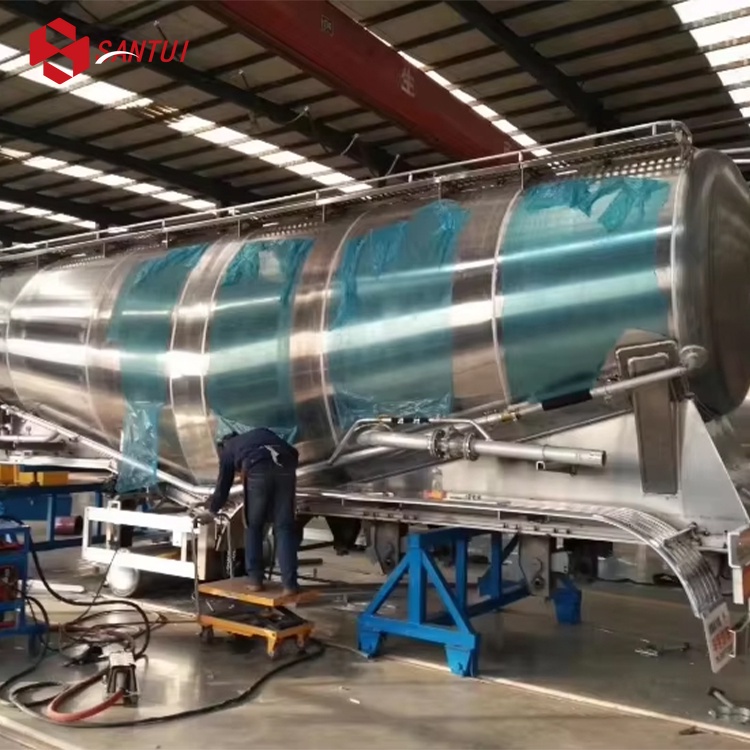

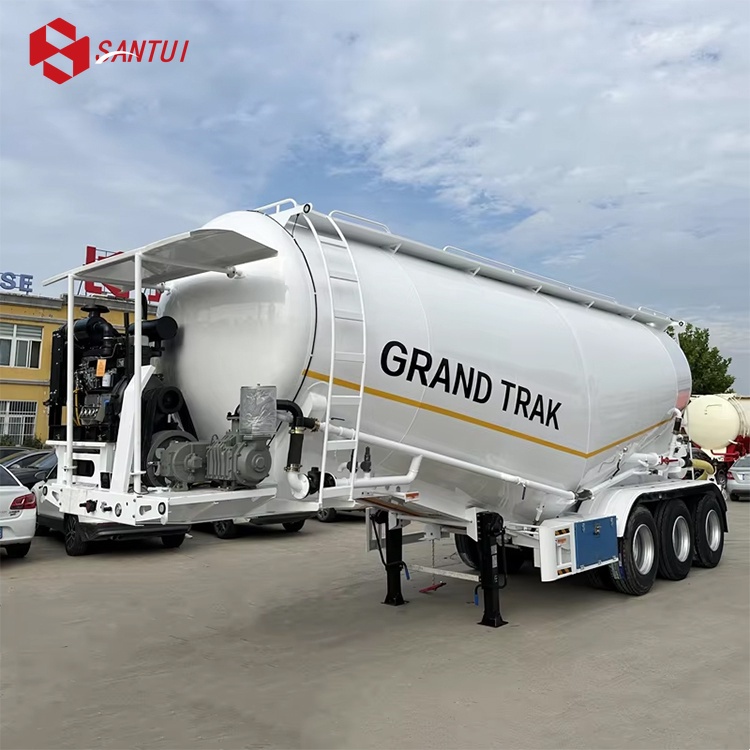

Large Capacity Fuel Tanker Semi Trailer / 3 Axle Oil tank Semi Trailer

Product Description

Item	Specification
Tank Body Thickness	4mm
Tank Ends Thickness	5mm
Manhole	Diameter 500mm
Valves	Factory Standard
Hoses	Diameter 4", length 6m
Compartment	Single

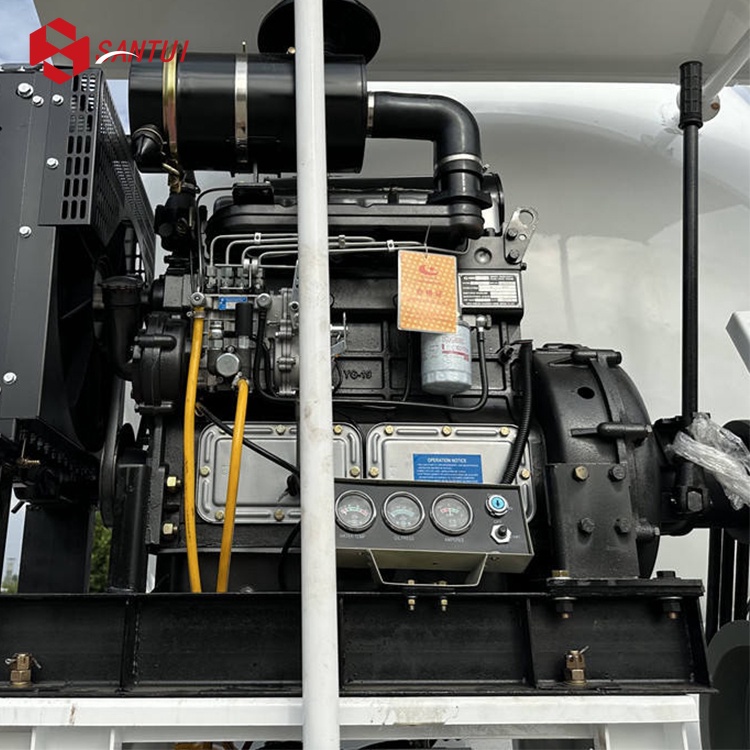

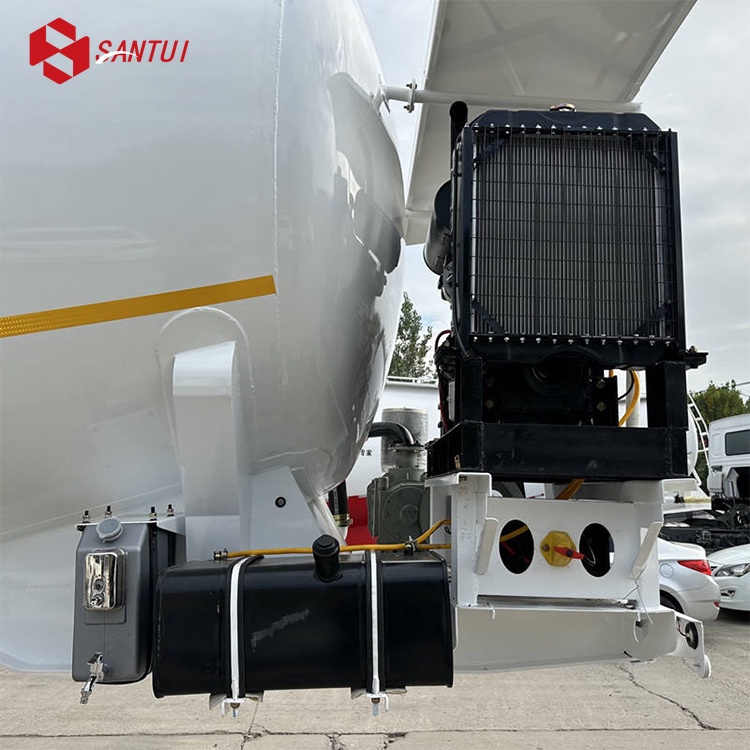

Engine	Diesel engine with fuel tank, Changchai Brand, 8.8kW

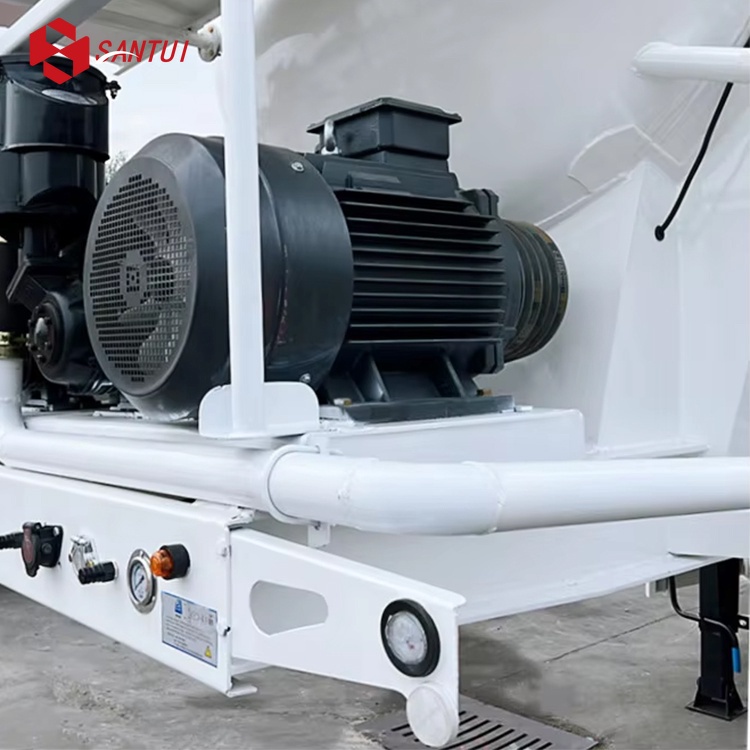

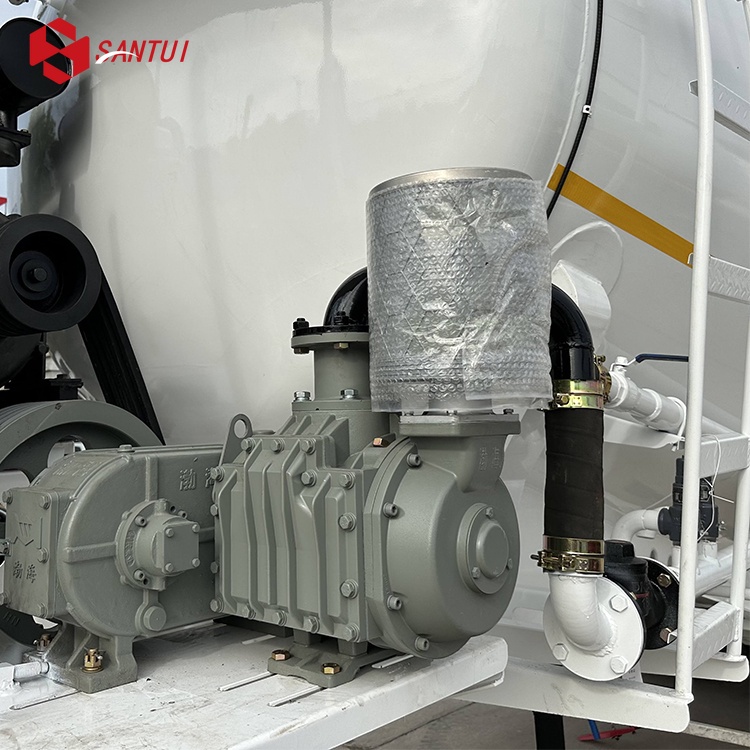

Air Compressor	Bohai Brand
Electric System	24V, with all LED lights
Braking System	Air brake, 8 chambers, air reservoir 2 pcs
Tool Box	1 Tool Box
Spare Wheel Rack	1 Spare Tire Rack
Painting	Sand blasting, prime coating, surface painting,color optional, wax polishing
Color	According to customer's requirement

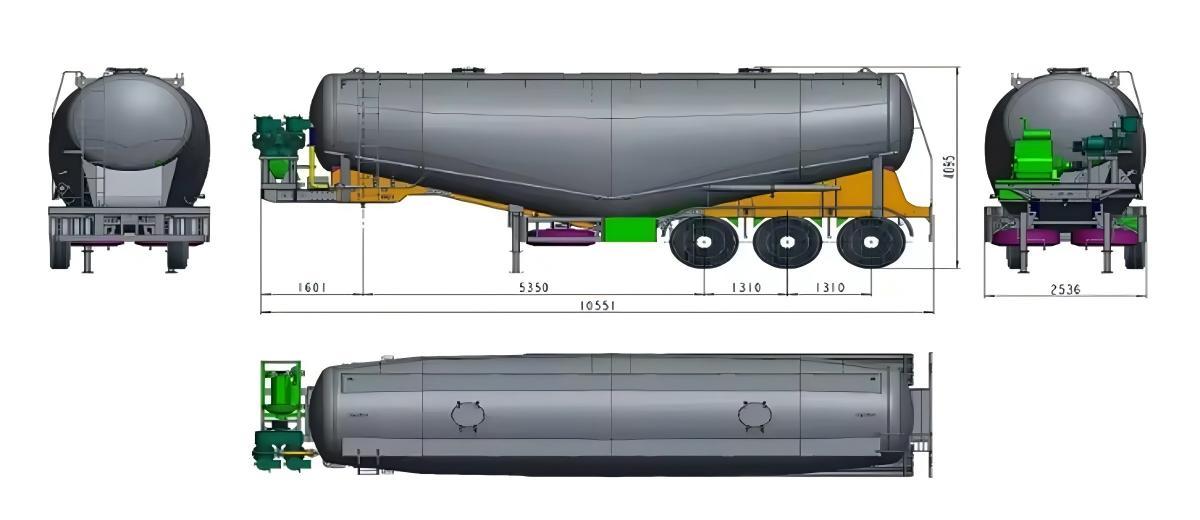

Overall Dimension	1050025504000mm
Curb Weight	8200kg
Loading Capacity	60000kg
Volume	45 CBM
Main Beam	2pcs, Material T700, tensile strength 700MPa, "工" shape, Thickness: upper board 12mm, middle board 10mm, bottom board 16mm.
Side Beam	Channel steel
Cross Beam	Channel steel, 4mm Thickness
Suspension	Mechanical Suspensions/Air Suspensions
Leaf Spring	10‑layers leaf spring

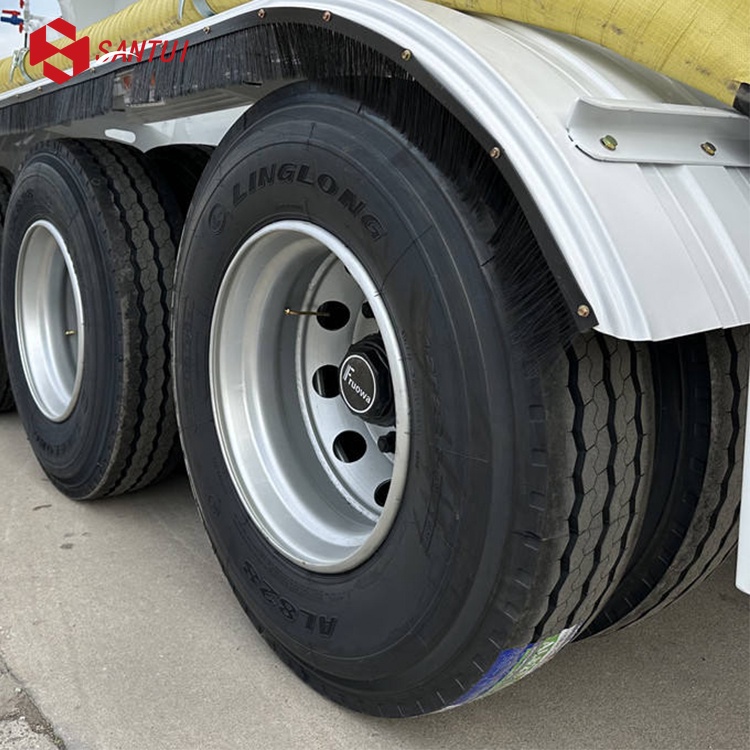

Tire	11.00R20/12.00R20/12R22.5
Rim	7.5 x 19.5
King Pin	2"(50mm)or3.5"(90mm)
Axle	3x16tons standard axles with cast hubs
Landing Gear	28T*2
