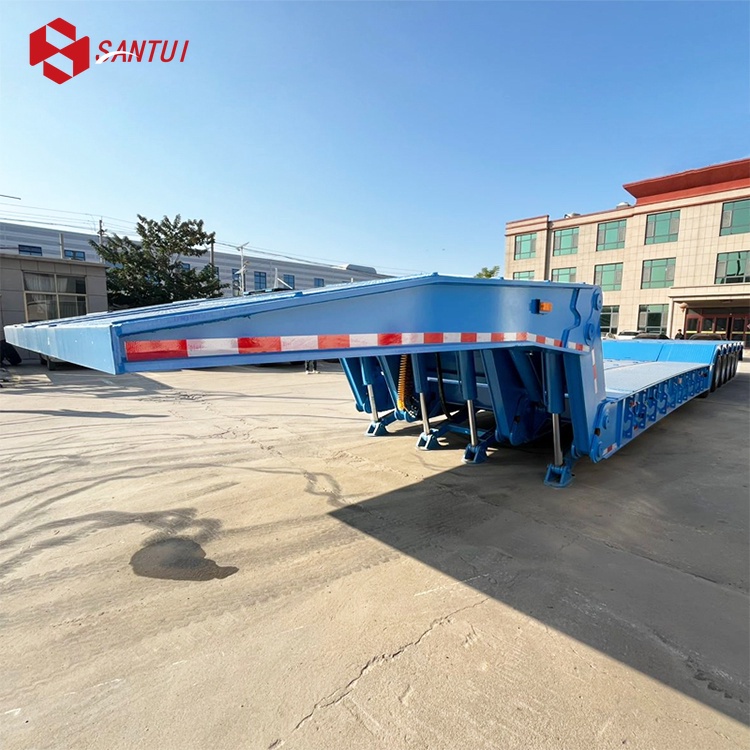

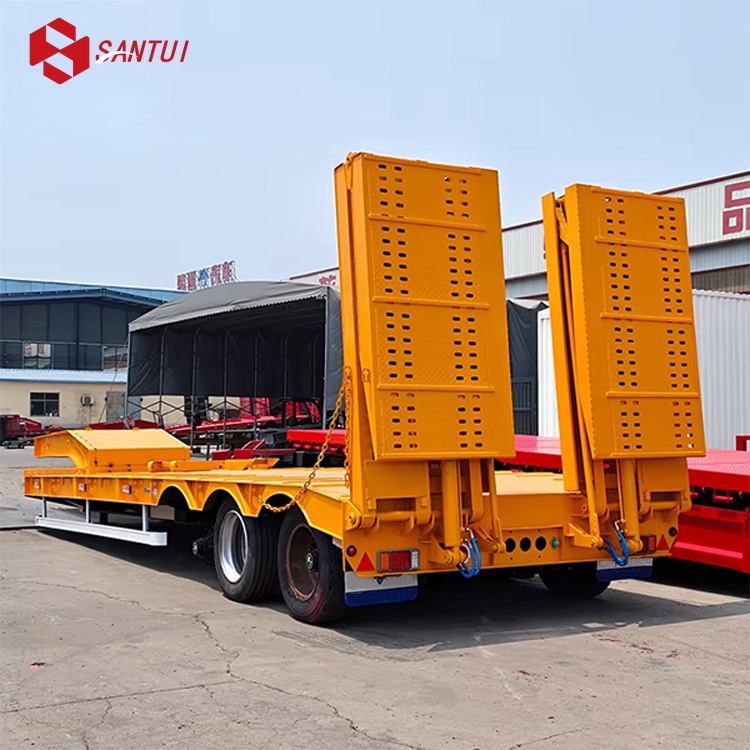

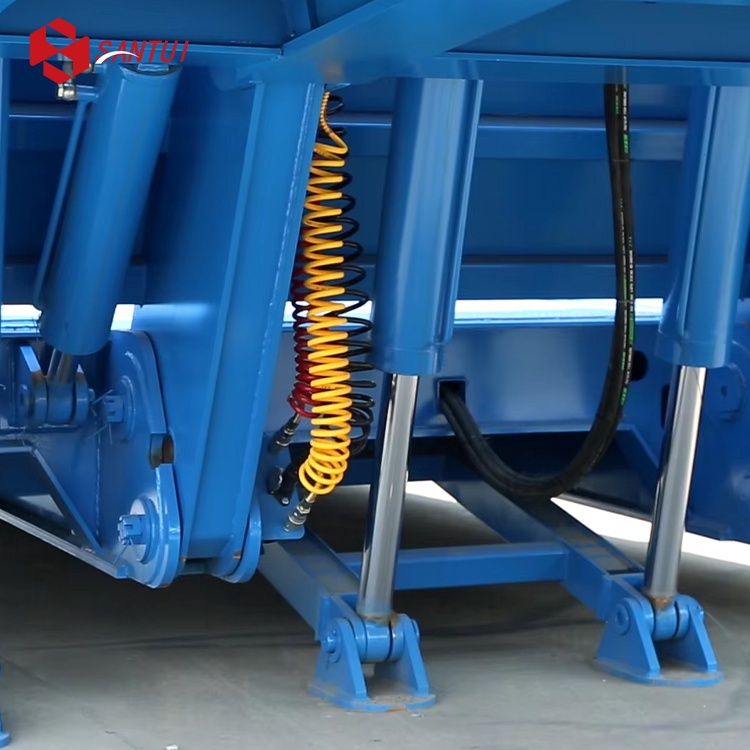

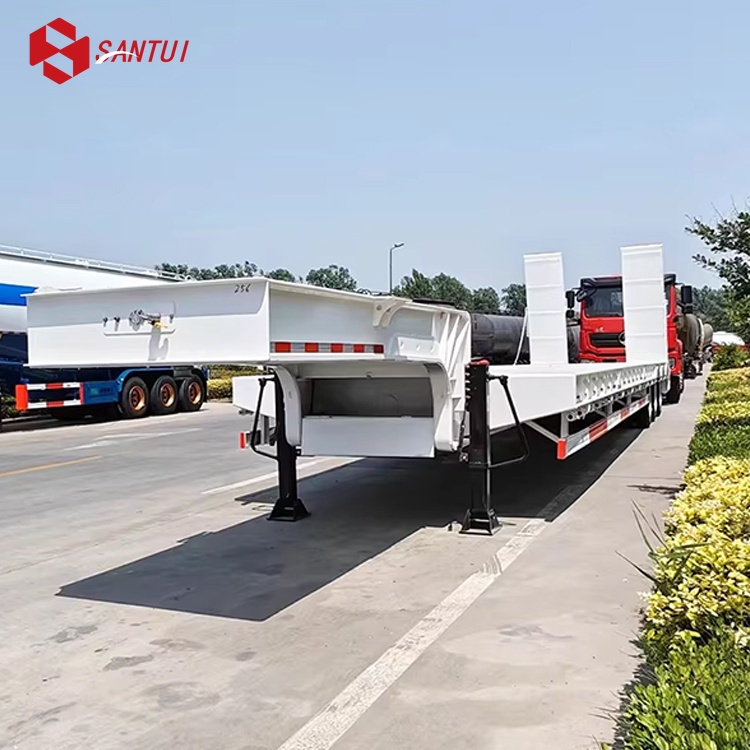

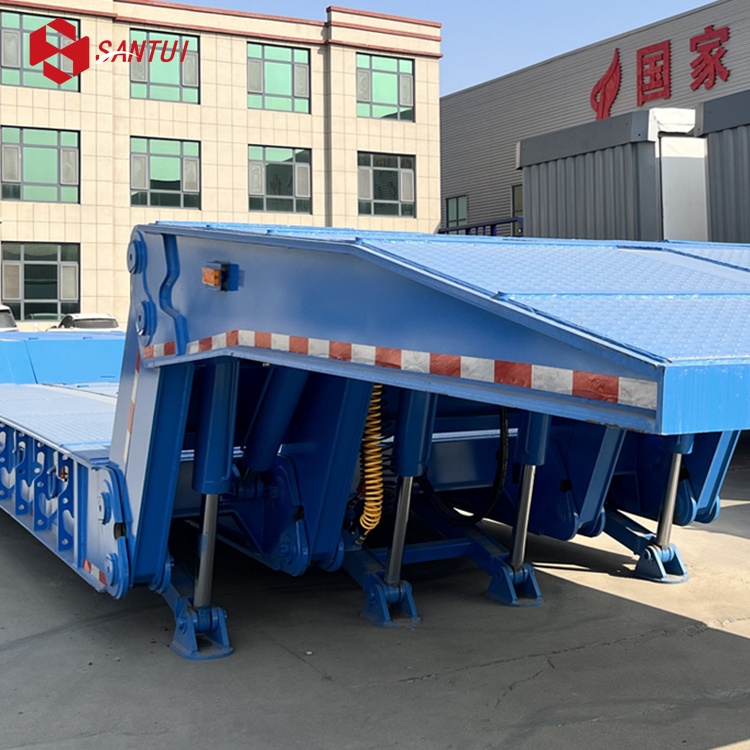

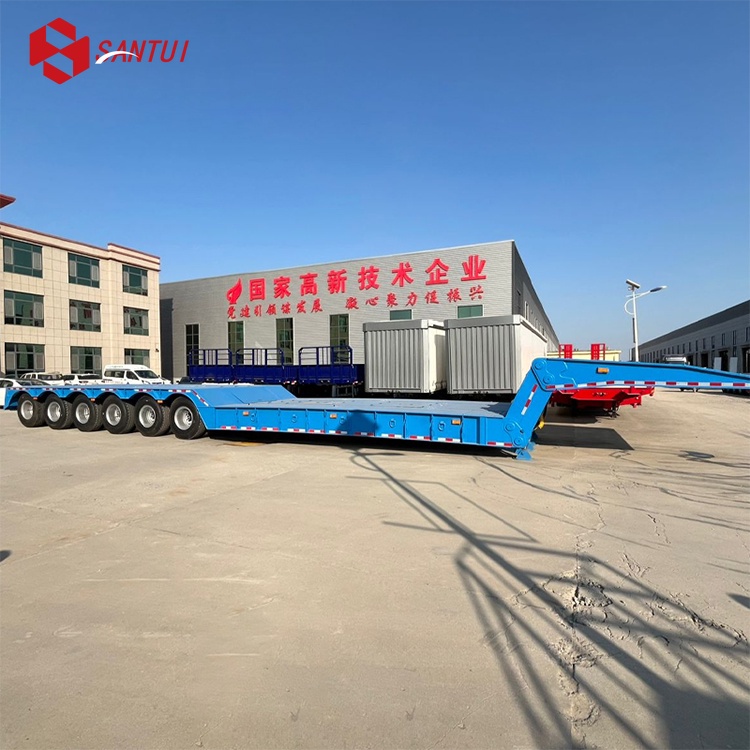

Steel Heavy Duty 3/4 Axles 50 Tons Lowboy Semi Trailer / New / Refurbished Lowboy Semi Trailer

Product Description

Item	Specification
Overall Dimension(mm)	13000x3000x1650mm
Working Deck Dimension(mm)	9000x3000x1350mm
Platform thickness(mm)	4mm
Main Beam
“H”main beam design,Q345B carbon steel, the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm
Wheelbase	7,650mm+1,310mm+1,310mm
Payload	60,000kg
Axle number	2‑4 or more
Suspension	Common mechanical
King Pin	2" or 3.5" traction pin
Wheel Rim	8.5‑20,9.0‑20,8.25‑22.5,9.0‑22.5 steel wheel rim optional upon choice

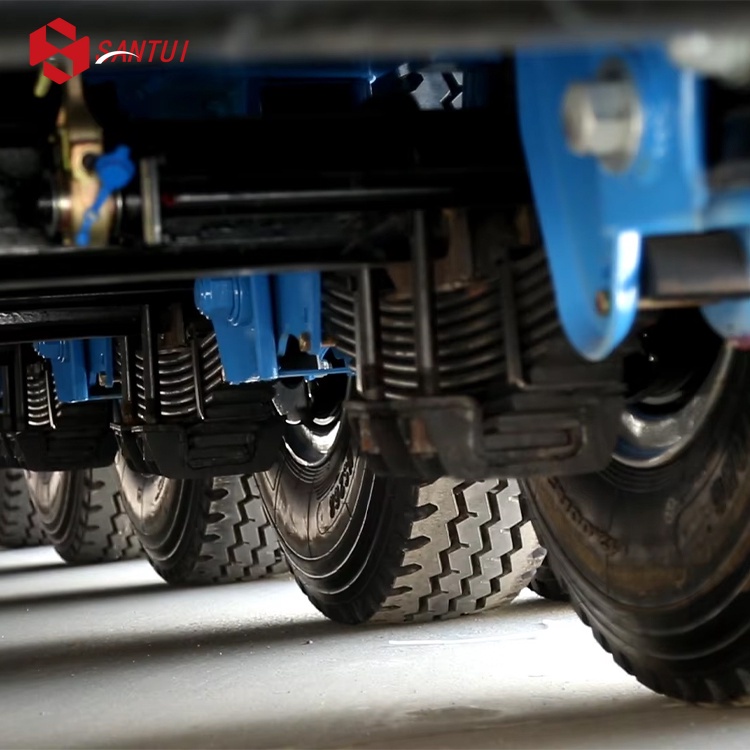

Steel Spring	10/10/10 leaf spring with 90mm(W)*13mm(thickness)
Spare wheel carriers	2 pcs
Electrical system
One set 6‑core electric cable protected by PVC conduit on main frame
Voltage: 24v , Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
