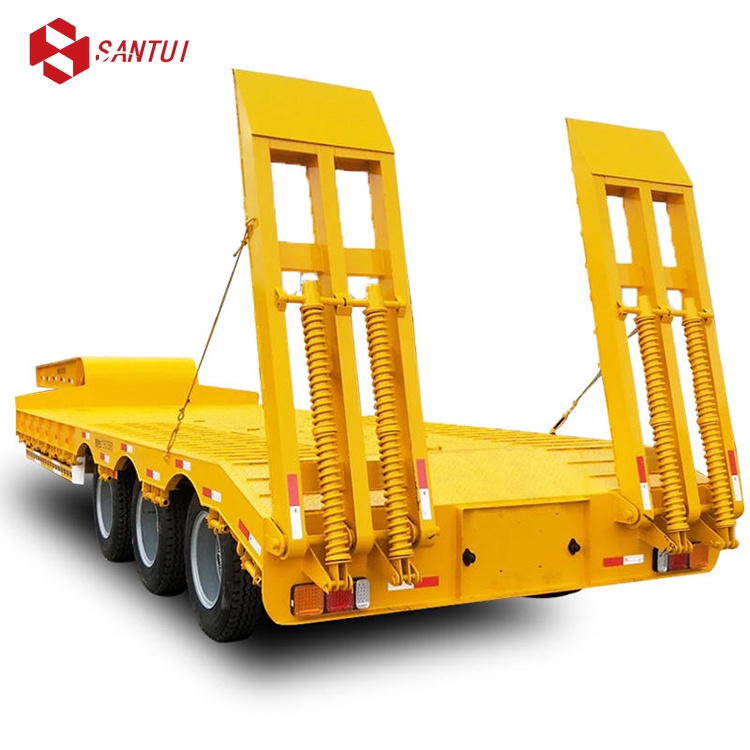

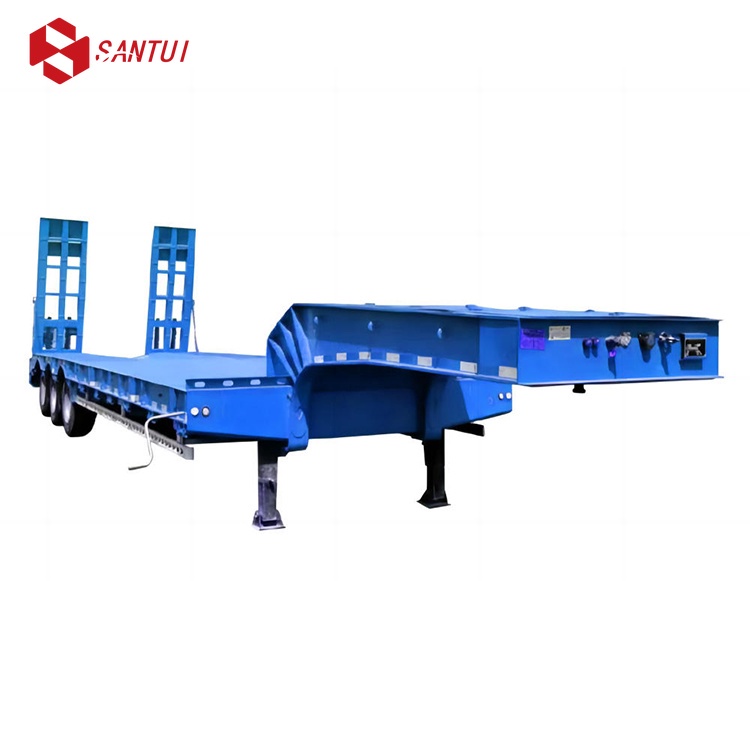

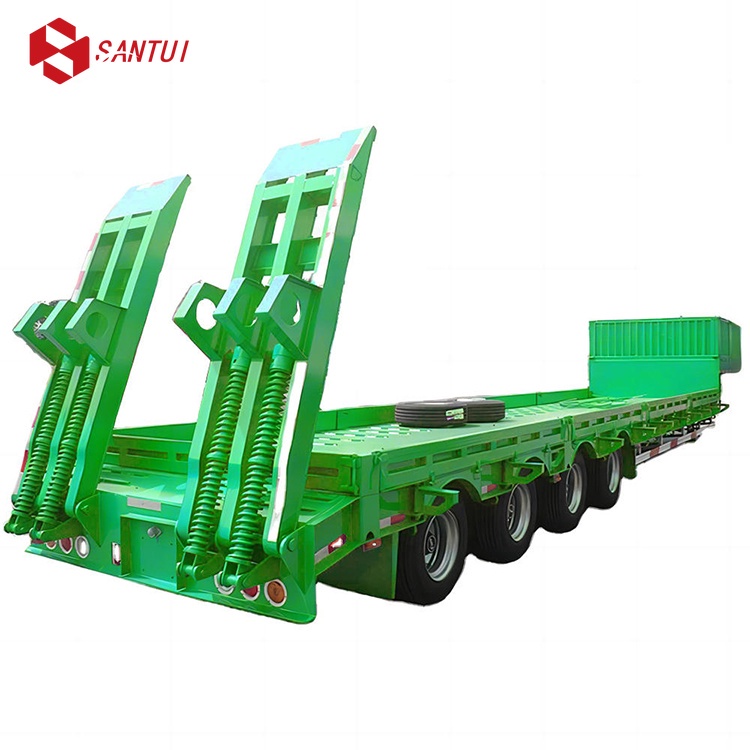

Lowboy Semi-trailer/ 3/4 Axles Lowboy Semi-trailer

Product Description

Item	3 Axle	4 Axle
Application	Heavy Duty Loading
Loading Capacity	30‑120 Tons	30‑160Tons
LWH	1300030001760mm	1300030001760mm
Ladder	Mechanical Spring/Hydraulic	Mechanical Spring/Hydraulic
Goose Neck Detachable	Available	Available
Multi‑Axles	Available	Available
Steering Axles	Available	Available
Tire Style	Covered or Uncovered	Covered or Uncovered
Main Beam	Material: Q345/T700
	Height: 500mm
	Upper Plate: 24mm
	Middle Plate: 14mm
	Lower Plate: 26mm
Platform Thickness	4mm
Axle	3 Axles *13 Ton /FUWA/BPW/Other	4 Axles *16 Ton/FUWA/BPW/Other
Tire	12R22.5/8.25r20 (12 Pieces)Linglong/Triangle/Double‑Coin/Bridgestone/Other
Rim	9.00*22.5/6.5‑20 (12 Pieces)Steel/Aluminum
Leaf Spring	90mm13mm10/90mm16mm10Pcs
Suspension System	Mechanical/Air Suspension
King Pin	#50(2")/#90(3.5") JOST/Other Brand,Changeable
Landing Gear	28 Tons Two Speed JOST/Other Brand
Tool Box	Steel/Aluminum
Widened Parts	Available
Painting	Polyurethane combination painting
