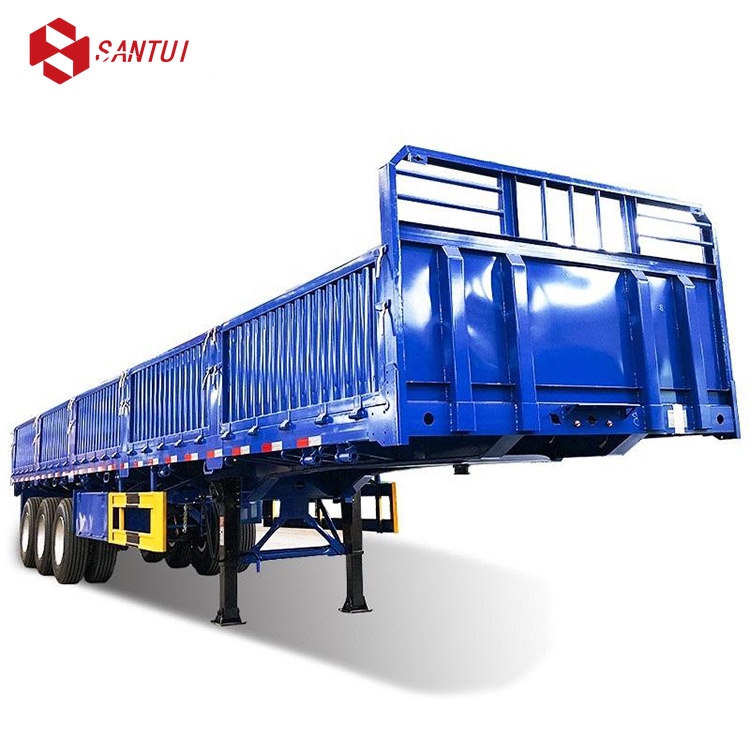

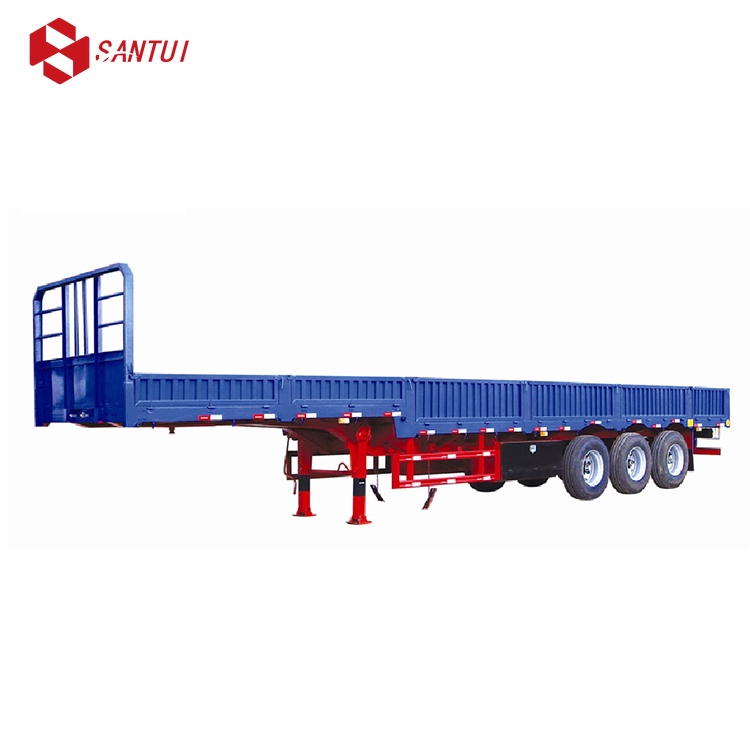

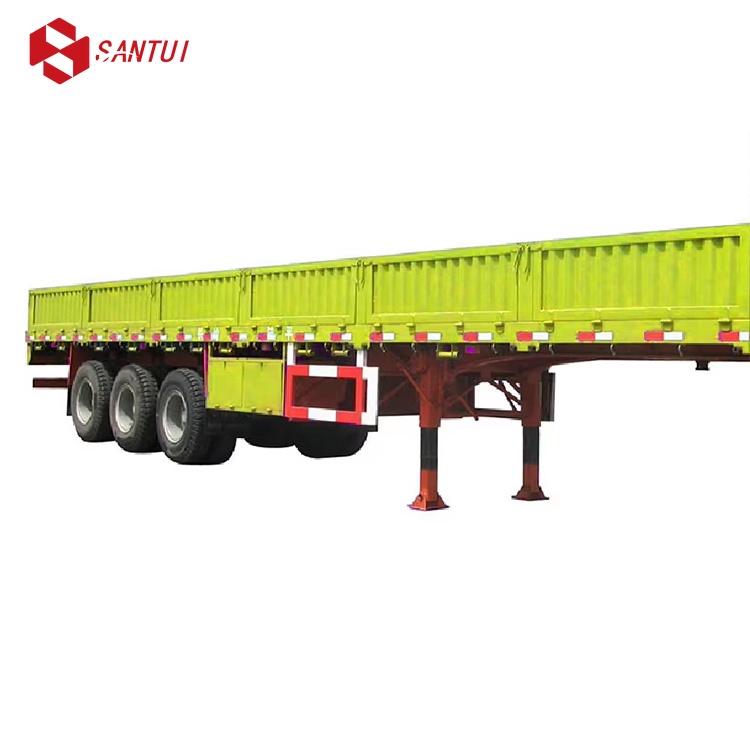

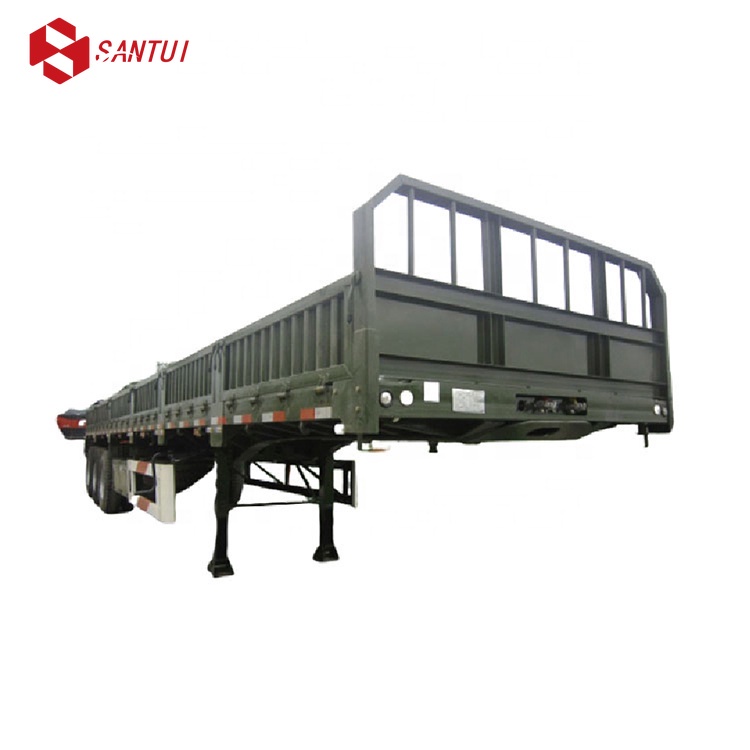

New / Refurbished 3 Axles Open Side Board Semi Trailer Removable Side Panel Cargo Semi Trailer

Product Description

Dimension	12.4m×2.61m×1.55m (Outside)
Payload	50T
Tare weight	About 7.5T
Box Body Dimension	12280mm2300mm600mm
Box Body	Floor steel sheet 2.5mm, side wall steel sheet 1.2mm
Twist lock	12uints

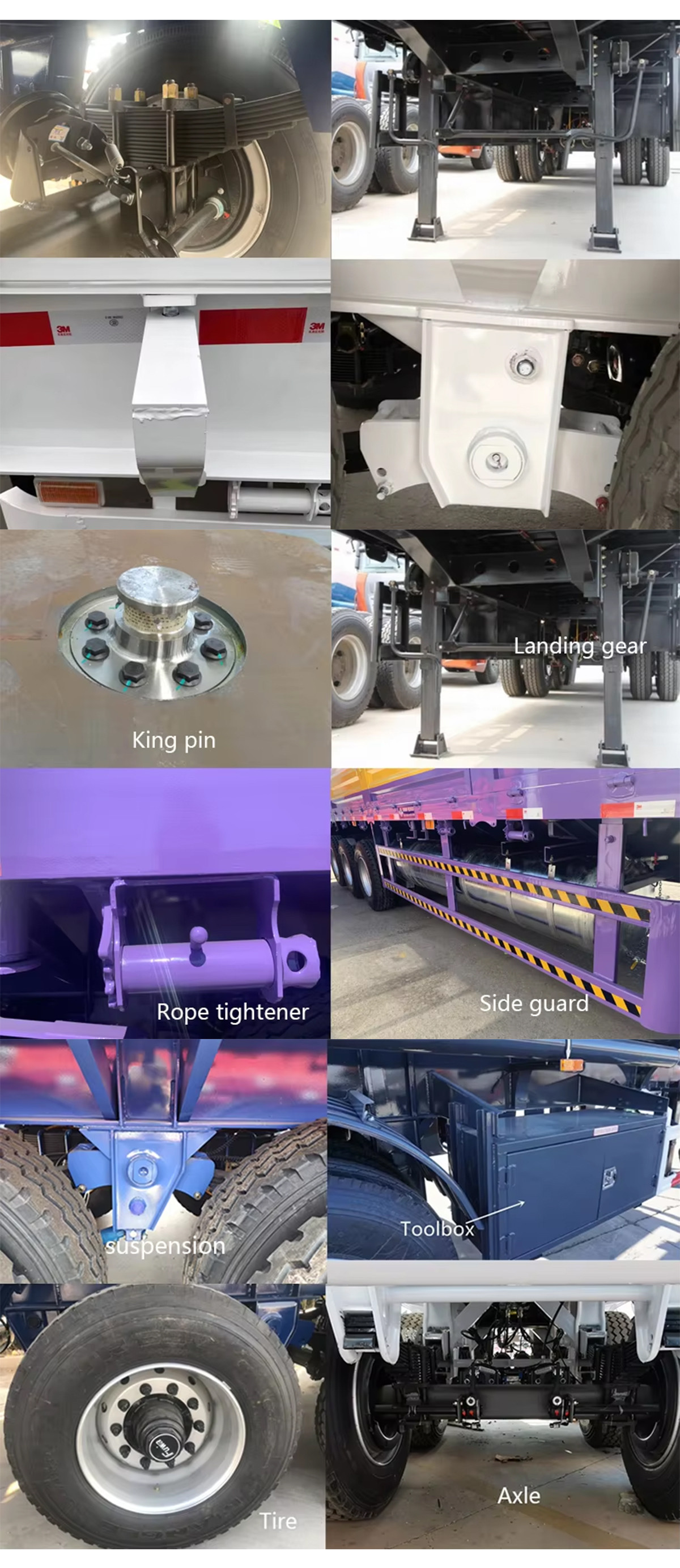

Chassis	—
Main beam	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Frame Beam	Top Flange 140mm;width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 480mm
Frame Floor	The Thickness is 3mm pattern
Axle	3 axles, 13Ton Fuwa brand 16ton brake pads
Landing Gear	28T lifting capacity with two speed
King Pin	2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension reinforced type
Leaf Spring	90mm(W)13mm(T)10 Layer
Pneumatic Braking System	Dual line pneumatic brake system,T30 air chamber ,40L air tanks, Emergency relay valve
Rim	9.0-20*12 pcs
Tire	12R22.5*12 pcs
Accessories	One standard tool box
Spare tire rack	One
Electrical system	24 volt electrical system,7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors
