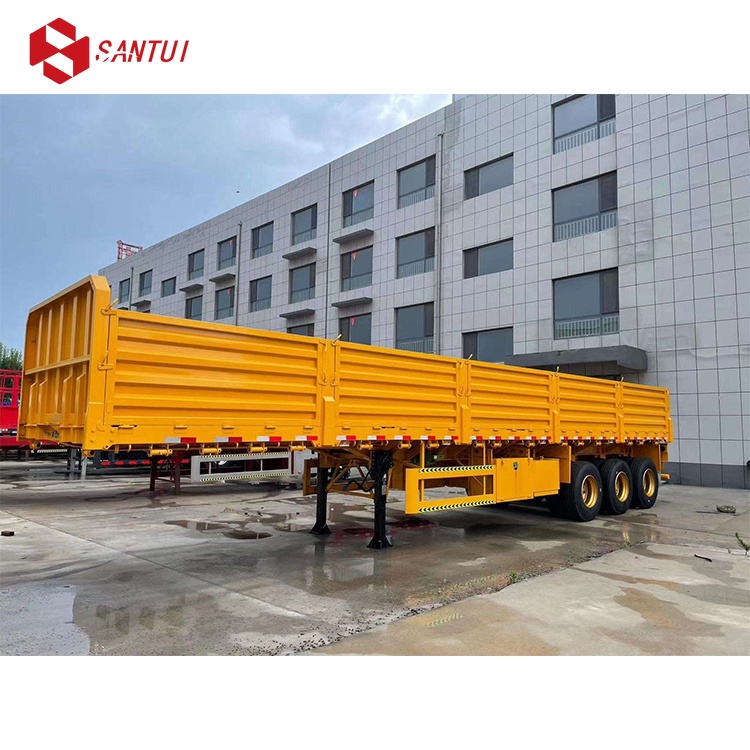

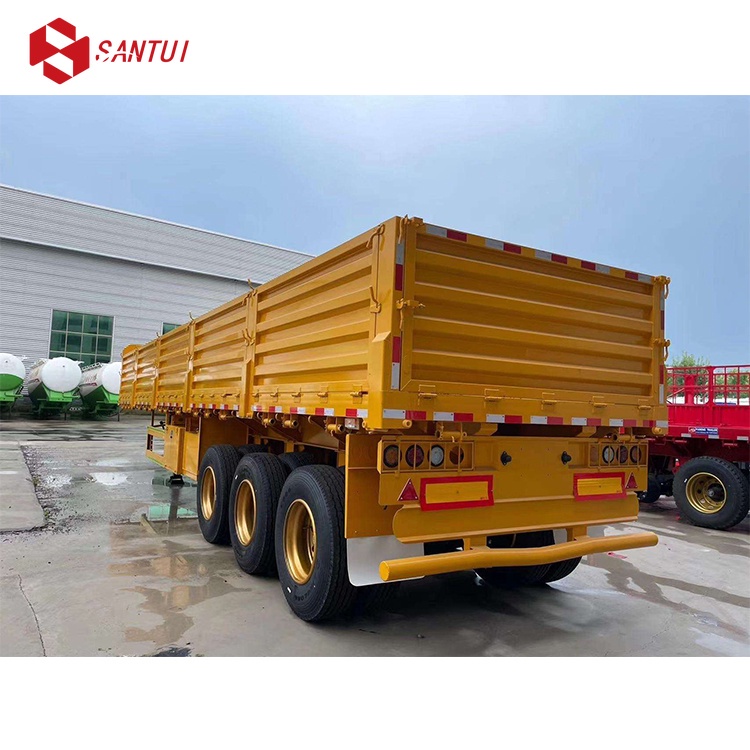

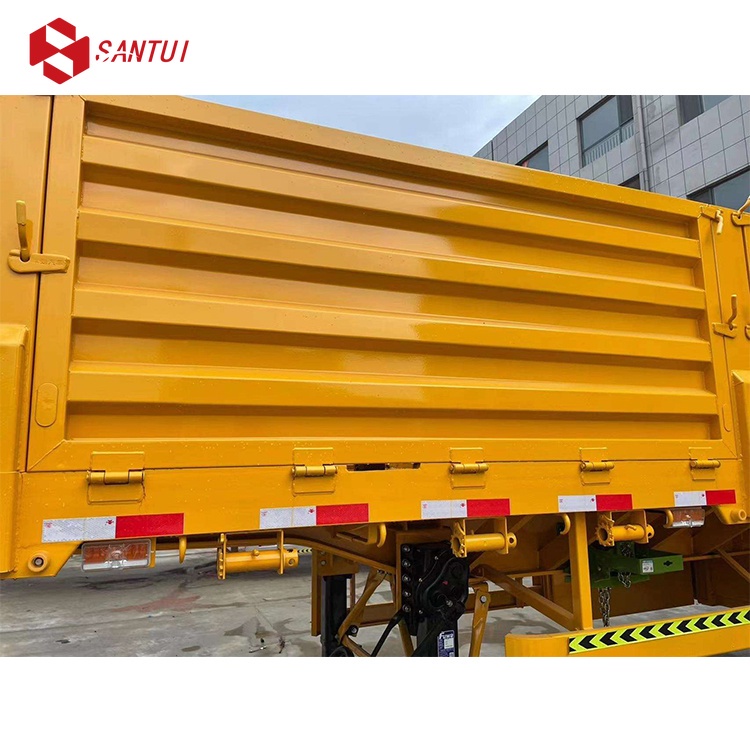

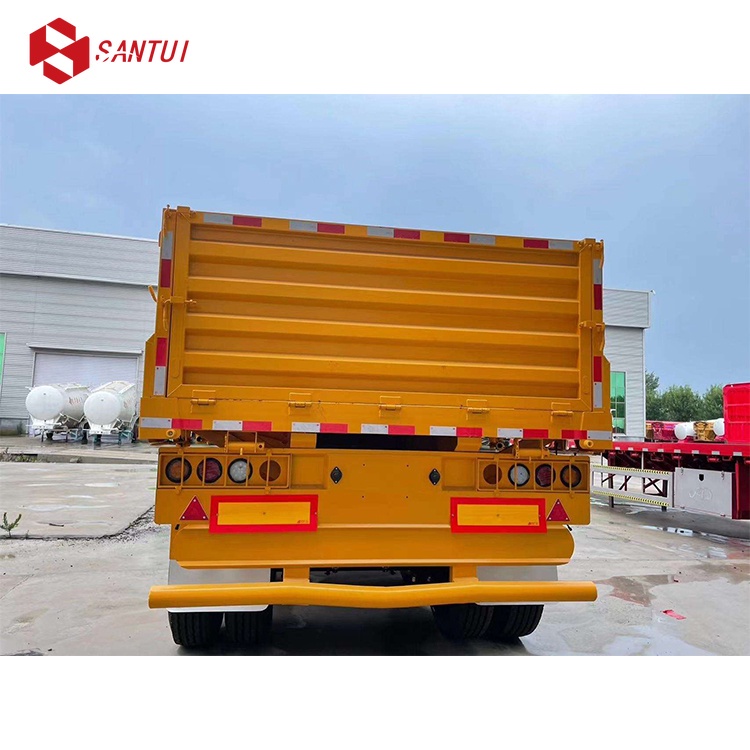

Factory Direct 3Axle Steel Panel Fence Side Wall Semi Trailer with 40-80Ton Payload

›

‹

  • Factory Direct 3Axle Steel Panel Fence Side Wall Semi Trailer with 40-80Ton Payload
  • Factory Direct 3Axle Steel Panel Fence Side Wall Semi Trailer with 40-80Ton Payload
  • Factory Direct 3Axle Steel Panel Fence Side Wall Semi Trailer with 40-80Ton Payload
  • Factory Direct 3Axle Steel Panel Fence Side Wall Semi Trailer with 40-80Ton Payload
  • Factory Direct 3Axle Steel Panel Fence Side Wall Semi Trailer with 40-80Ton Payload

›

Factory Direct 3Axle Steel Panel Fence Side Wall Semi Trailer with 40-80Ton Payload

Tel：+0086 18153459109
WhatsApp：+86 18153459109
Email：ekko@sdshantuigroup.com
Contact Us

Product Description

ItemsSpecifications
Product NameSide wall Semi Trailer
Dimension (L×W×H) (mm)12400×2610×1550mm (customizable)
Inside dimension12280mm×2300mm×600mm (customizable)
Tare weight (kg)7500 (depends on final configuration)
Max Loading Capacity (kg)40-80ton (customizable)
Main BeamQ345B / T700 Steel; Height 500mm; upper plate 14mm; down plate 16mm; middle plate 8mm (customizable)
Side Beam16mm channel steel (material is Q235B steel)
Bottom plate thickness (mm)3mm (customizable)
Sidewall Thickness (mm)1.2mm (customizable)
Side wall height600mm (customizable)
Axles13/16/20 Ton. Axle amount optional like 2/3/4 axles..., Axle brand optional like SAF/FUWA/BPW etc
Tire12.00R22.5 / 315 80R22.5 / 11.00R20 / 12.00R20 (Brand optional)
Rim9.00-22.5 / 8.00-20 / 8.50-20
King Pin2'(50mm) or 3.5'(90mm) JOST or other brand optional
SuspensionMechanical Suspension / Air Suspension (American or Geman)
Leaf Spring90(w)mm * 13/16(thickness)mm * 10(layer)
Twist-lock12 units (customizable)
Landing Gear28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc.
Brake SystemDual line brake system, Air chamber T30/30, 3 X 40L gas storage drums
ABS SystemNone or installed as your requirement
Electrical system1. Voltage: 24v waterproof; 2. Receptacle: 7 ways (7 wire harness); LED light (standard rear light, turn light, rear reflector, side light, side reflector etc.)
ColorAs per customer requirement
Spare Wheel Bracket1 piece of Spare Wheel Bracket
Tool box1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
PaintingSand blasting before painting; one coat of primer, anti-corrosion; two coat of finish painting
PackingWax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping

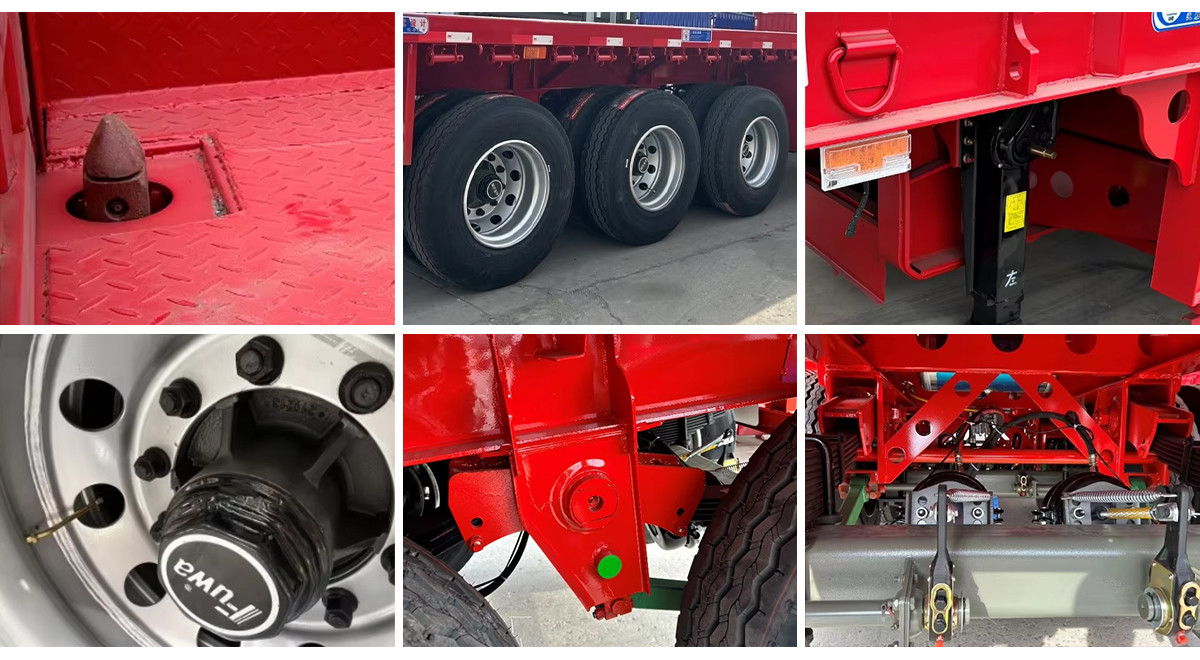

Product Display

1787737864951175305618944000.jpg@!w400
