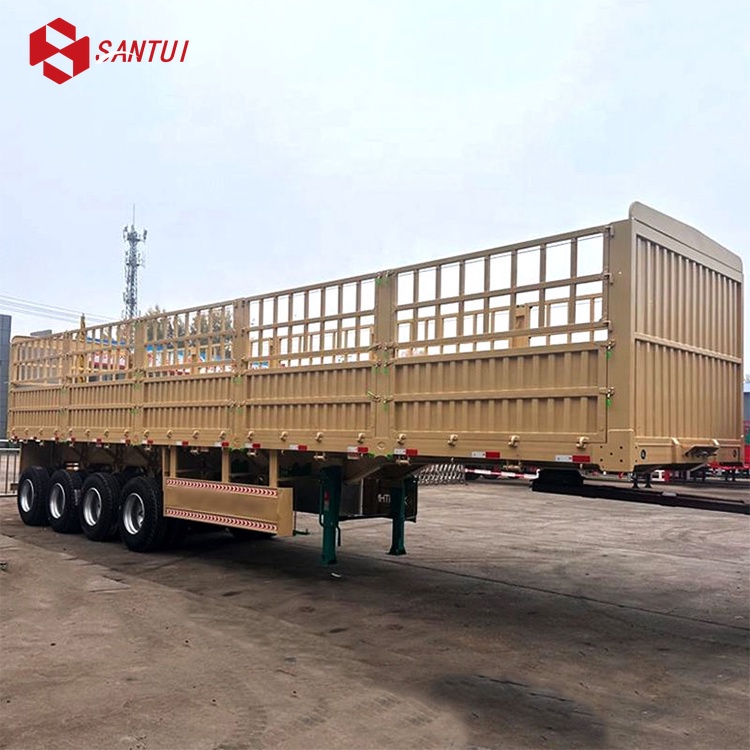

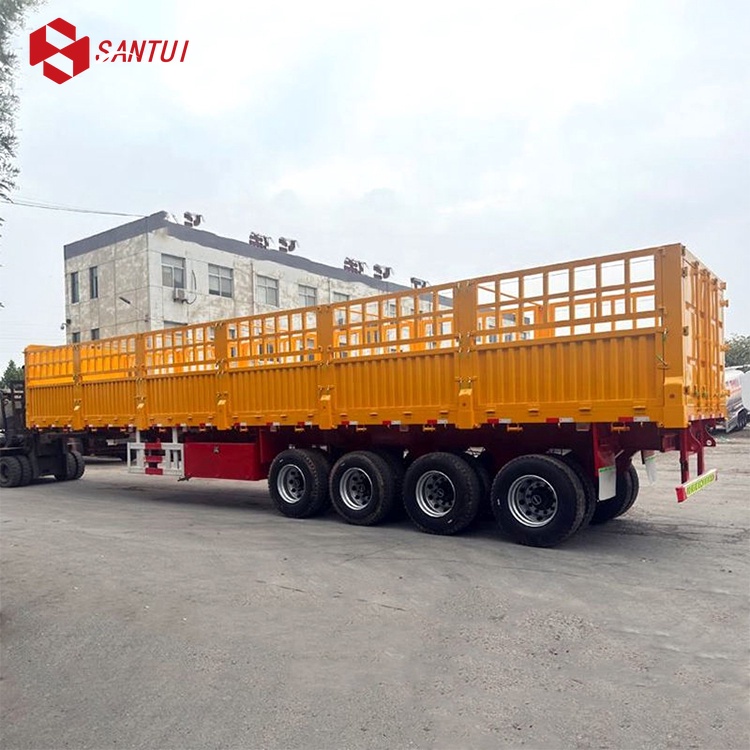

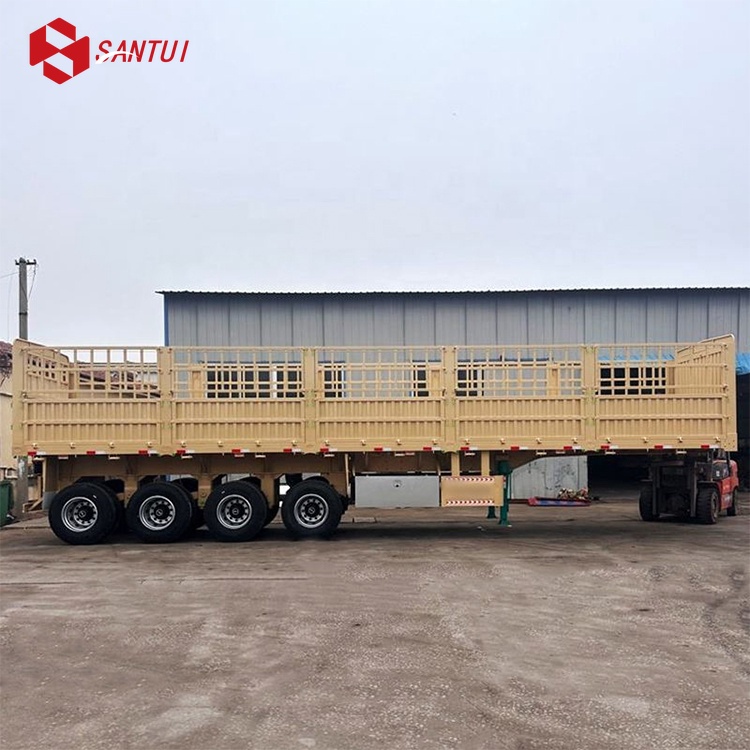

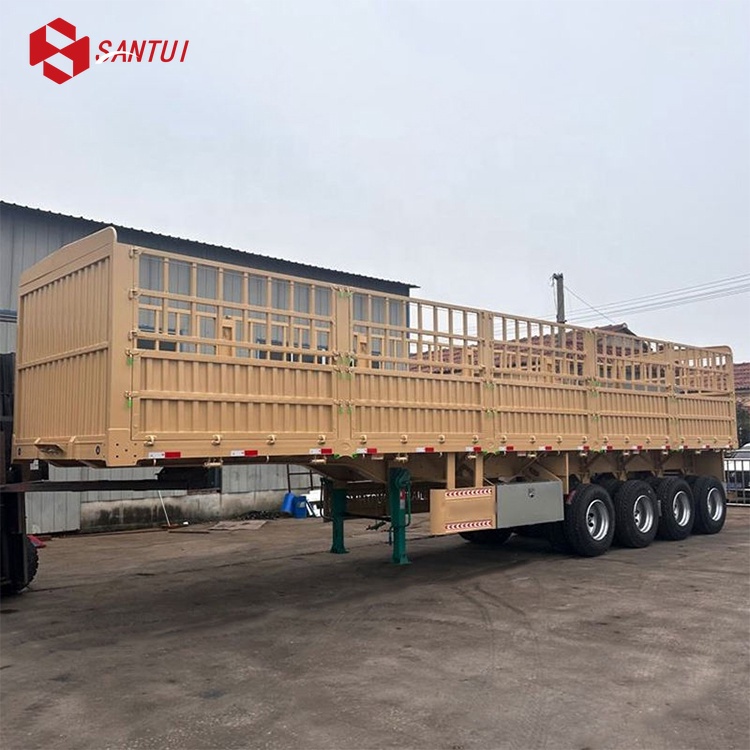

Factory Price 3 Axle 40ft Fence Cargo Truck Trailer

Product Description

Item	Parameter
Dimension	12500mm2500mm3050mm(1500mm sidewall high)
Load Capacity(T)	60T
Axle	3 axles, 13T/16T, FUWA/BPW Brand
Rim	9.00‑22.5 9.75‑22.5(Specially designed and for oversea markets)
Tire	12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)
Suspension	Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets)
Spring leaf	90(W)mm13(Thickness)mm10Layer or 10mm12mm12Layers(Specially designed for oversea markets)
King pin	JOST brand 2.0 or 3.5inch(bolted or welded type)
Support leg	JOST brand D200T or Chinese brand 28Tons(Double speed)
Main beam	Height: 500mm , Q345/T700 Upper Plate: 14mm Down Plate: 16mm Middle Plate: 8mm
Side beam	16mm or 18mm steel channel(material: Q235steel)

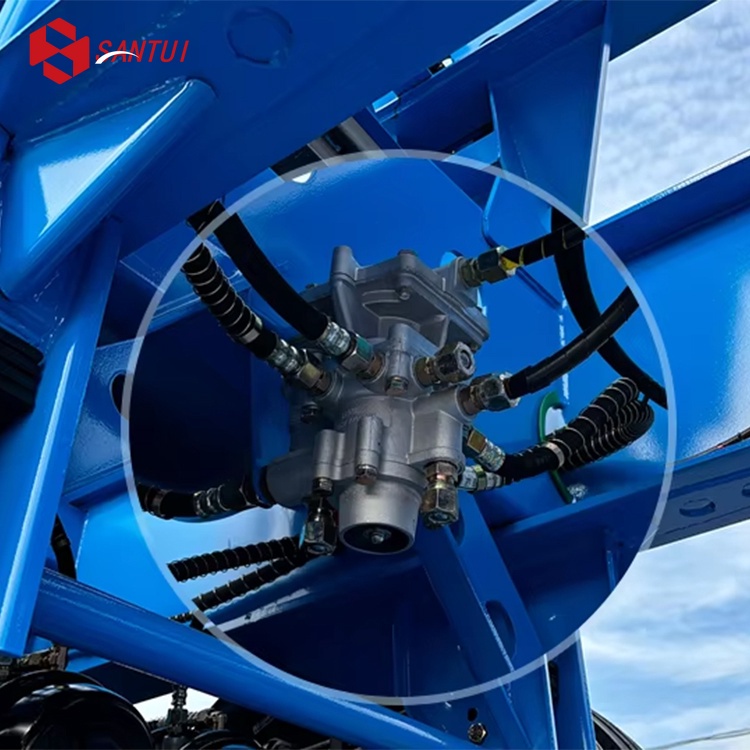

Brake chamber	WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks
ABS	Optional
Twist Locks	Four, Eight or Twelve pieces(lifting type or twist screw type)
Braking system	WABCO valve
Tool box	1m0.5m0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
