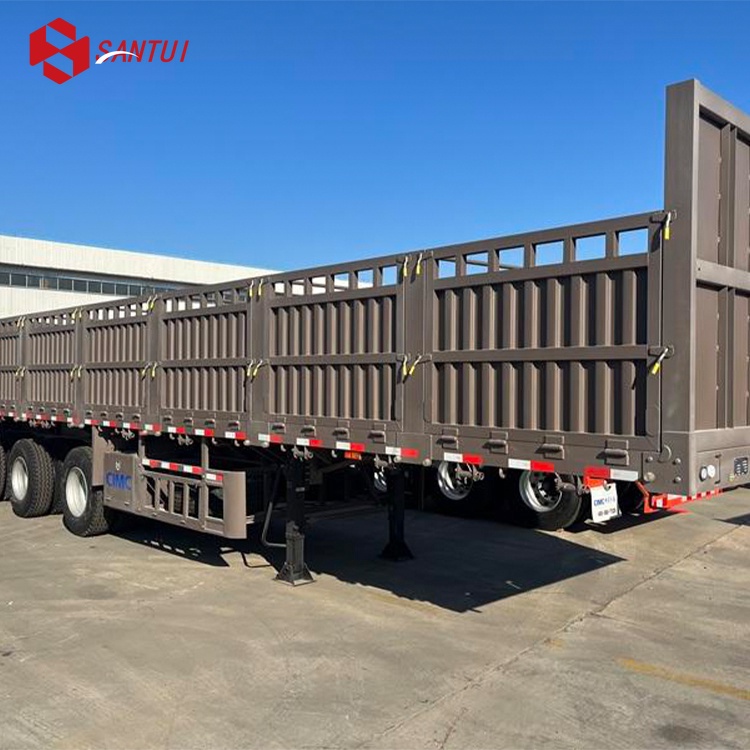

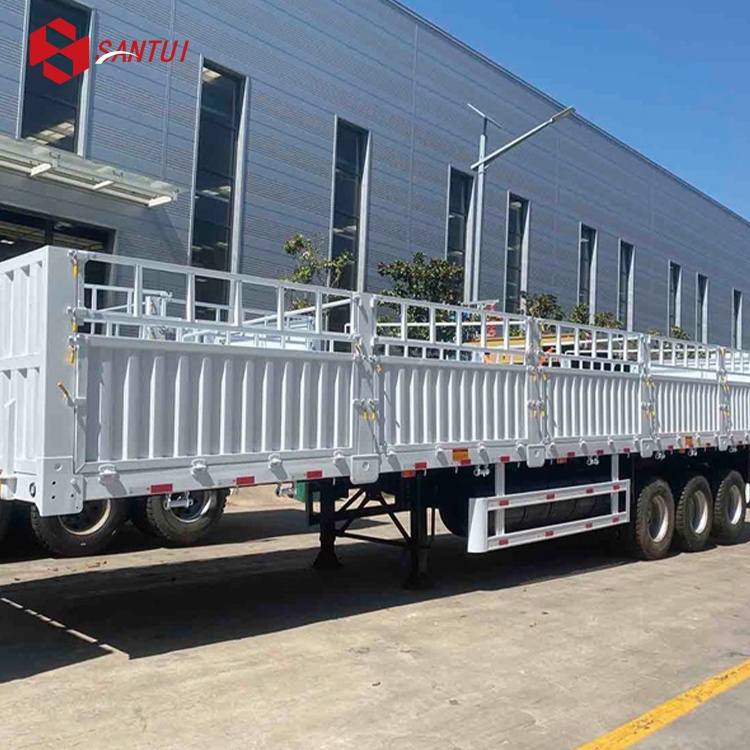

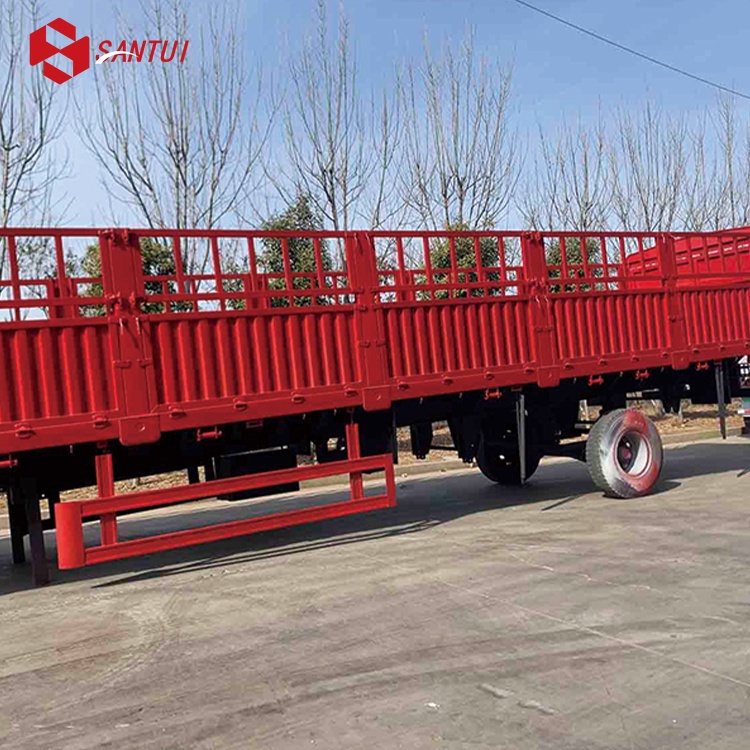

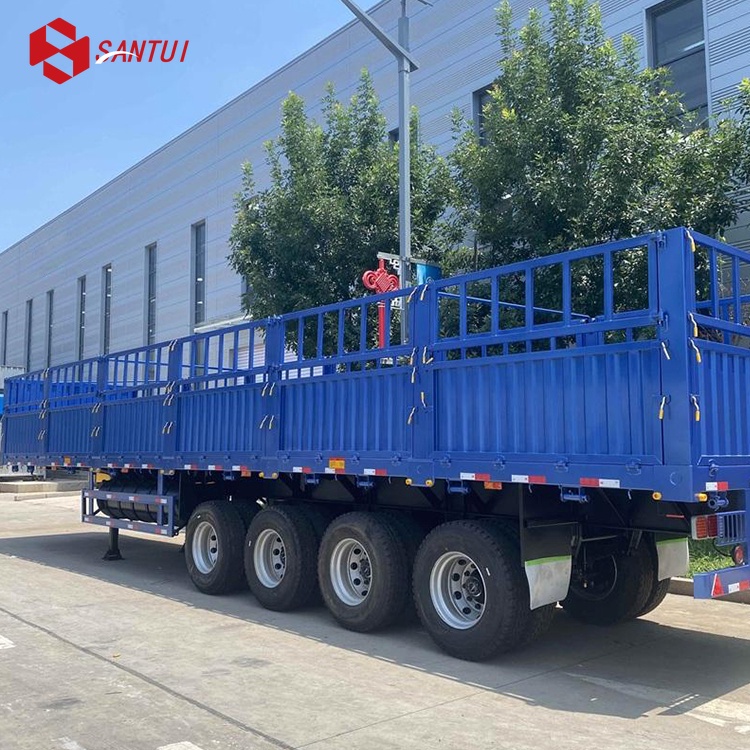

Drop Side Board Sidewall Semi Trailer / Heavy Duty Cargo Semi Trailer / Fence Semi-Trailer

Product Description

Item	2 axles fence semi trailer	3 axles fence semi trailer	4 axles fence semi trailer
Application	Coal/ Livestock/Vegetable/Cargo Loading
Size(mm)	9500/1100025002800/3800	12500/1300025002800/3800	12500/1300025002800/3800
Payload	30‑60Ton	30‑80Ton	40‑100Ton
Main beam	Height:500mm, upper plate is 12mm, middle plate is 6mm, down plate is 14mm ; Material is Q345B Steel.	Height: 500mm, upper plate is 16mm, middle plate is 10mm, down plate is 18mm ; Material is Q345B Steel.	Height: 500mm, upper plate is 12mm, middle plate is 12mm, down plate is 20mm ; Material is Q345B Steel.
Axles	2*13T/16Ton/FUWA/BPW/Other	3*13T/16Ton/FUWA/BPW/Other	4*13T/16Ton / FUWA/BPW/Other
Side Wall Height	600mm‑1700mm (can be customized)
Side beam	16mm channel steel (Material is Q235B steel)
Bottom Platform	3mm chequered steel plate
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	90(width)mm13(thickness)mm10 layer(especial for exporting market)
Tire	12R22.5 / 11.00R20 8/12pcs (Other size optional)
Rim	9.00‑22.5 / 11.00R20 8/12pcs (Other size optional)
Kin pin	Jost brand 2.0 or 3.5 inch
Landing gear	Jost brand 28Ton two speed
Braking system	Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks
Electrical	LED light, 7 ways, 24V
Tool box	One piece 1m0.5m0.5m ( size can be customized)
