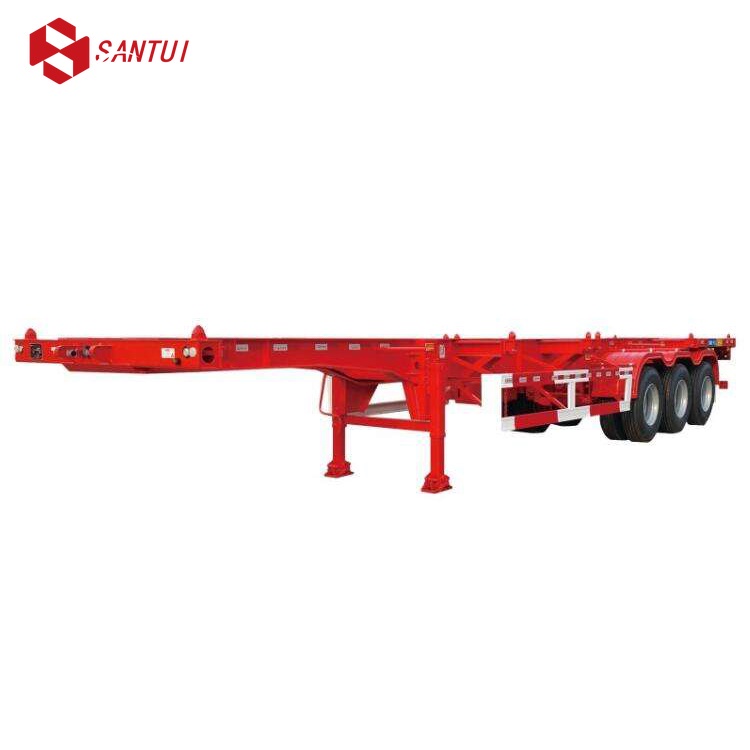

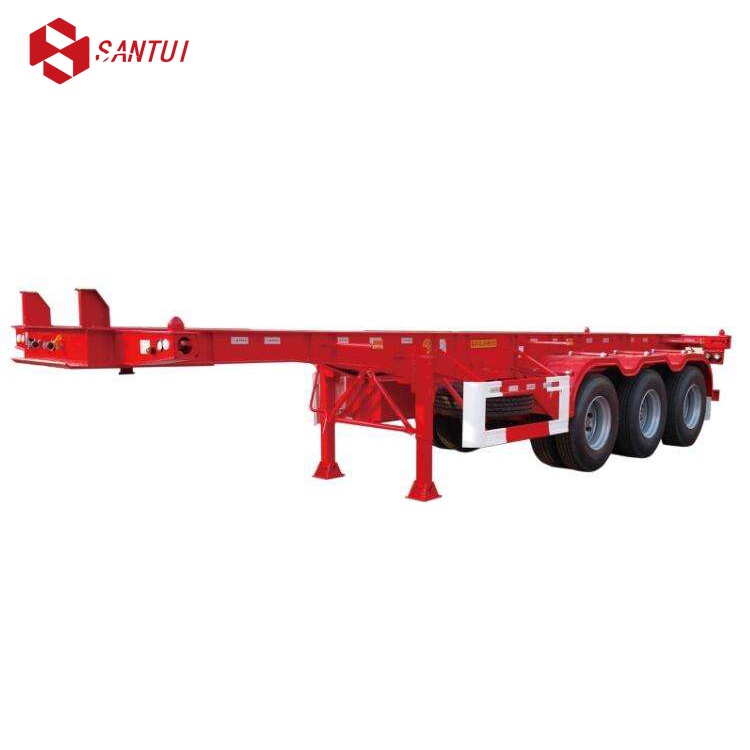

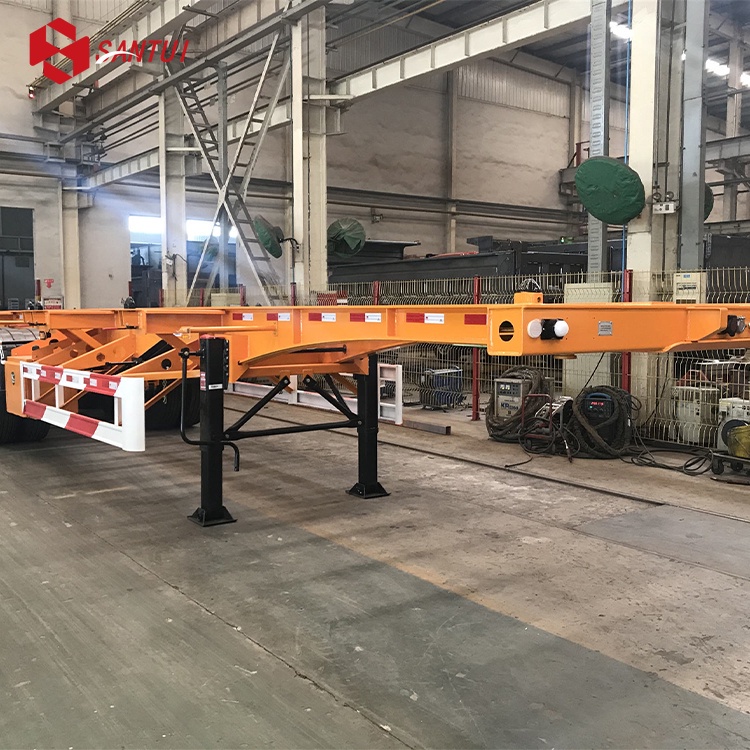

Container Semi Trailer

Product Description

Item	Specification
Product Name	Container Semi Trailer
Tare Weight	About 5.5T or 3.2T
Outer Side Dimension	750‑12450mm2490mm1557mm
Loading Capacity	≤ 45 T(40FT) ≤ 30T(20FT)
Chassis Parts
Axle	13 T, FUWA /BPW Brand
Rim	9.00‑22.5
Tire	12.00R22.5 315/80R22.5
Suspension	Mechanical suspension (Germany Type or America Type)Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support Leg	JOST brand D200T or China brand 28Tons (Double speed)
Main Beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm(thickness), material is Q345B steel.
Brake Chamber	T30/30+T30 Spring brake chamber(TKL brand); One piece of 40L air tanks
ABS	optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7ways(7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner, and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive paint, 2 coats of final paint.
