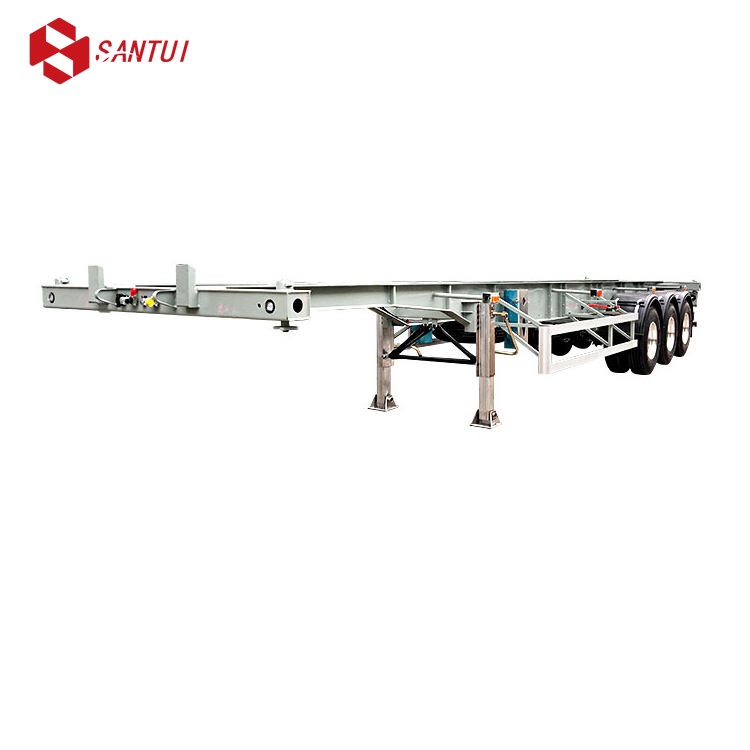

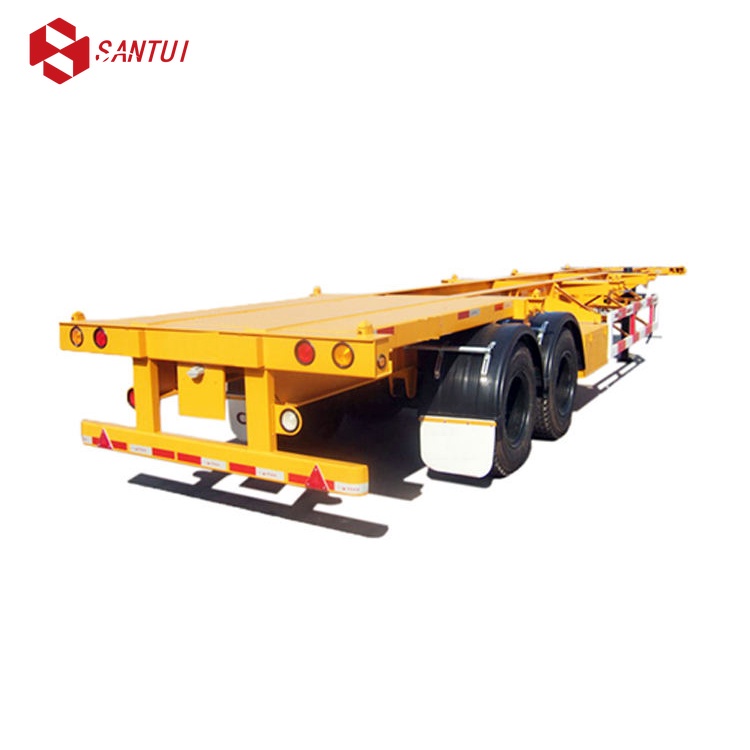

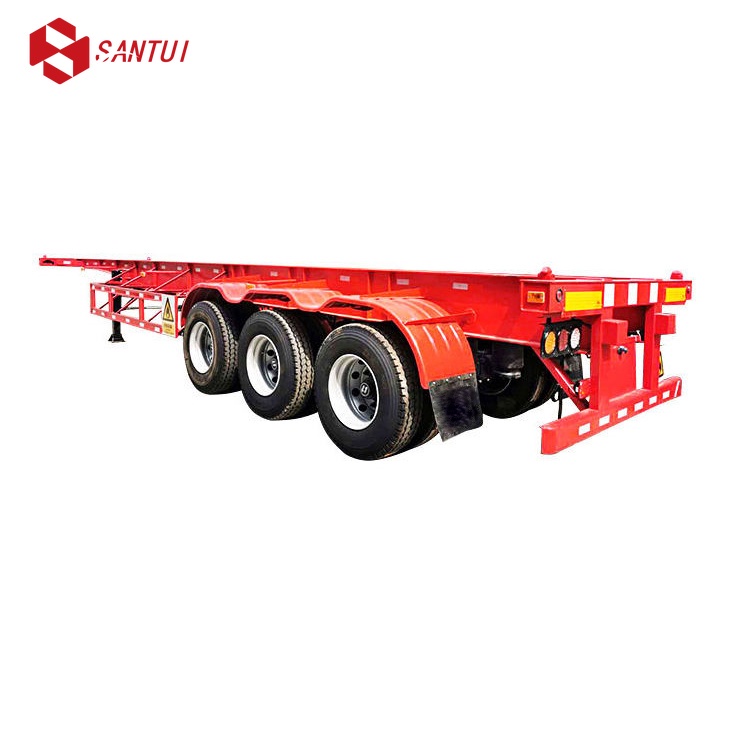

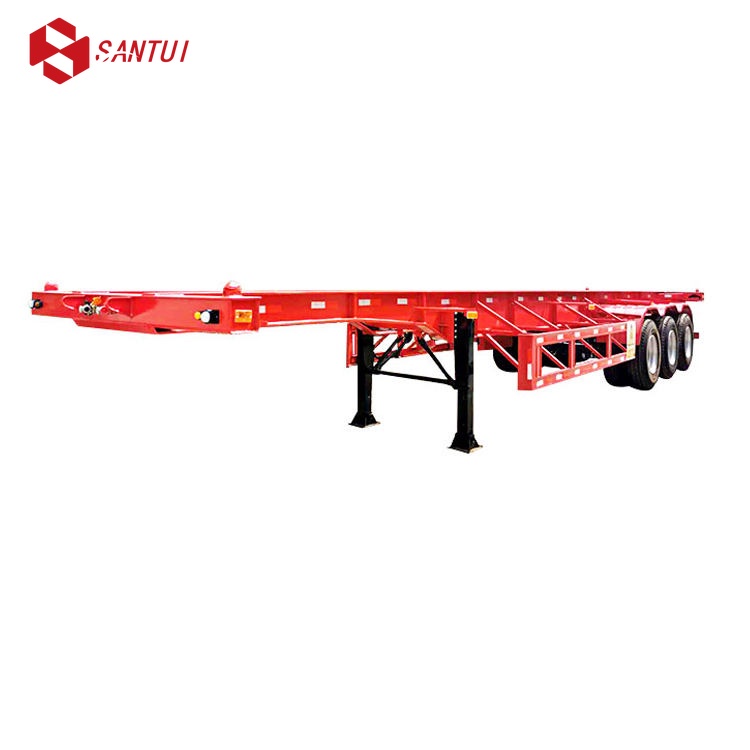

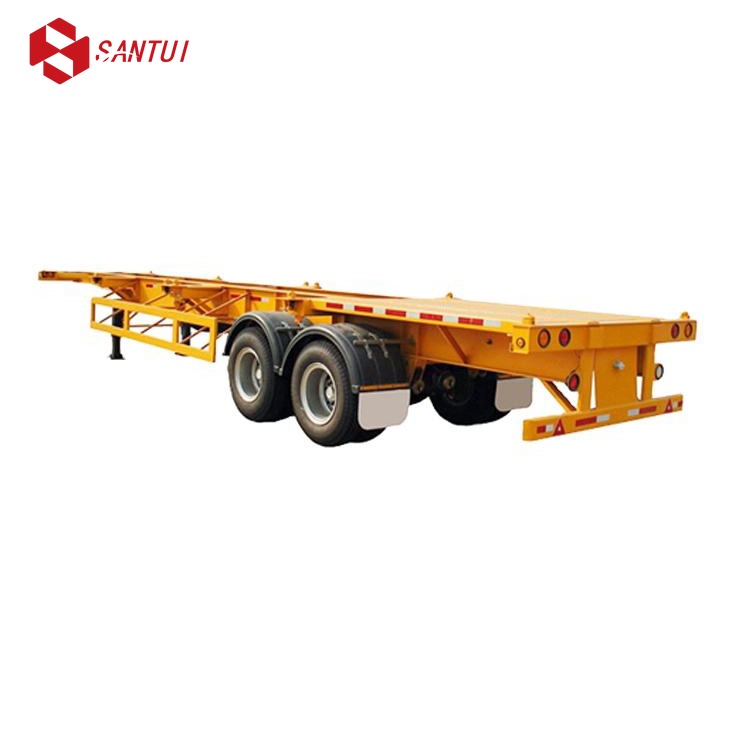

20-40 Ton Steel 3Axle Chassis Skeleton Skeletal Semi-Trailer

Product Description

Specification
1. Dimension	12410 x 2480 x 1520 mm
2. Tare weight	4520 kg (Two Axles); 5900 kg (Three Axles)
3. Payload	30 tons
4. Twist lock	12 units
5. Function	Load 1×40' or 2×20' or 1×20' container
Standard Configuration
1. Axle	13 ton Fuwa brand, 150×150, 2/3 units
2. Suspension	Mechanical suspension
3. King pin	2", bolt on type
4. Landing gear	28 ton, two speeds
5. Tire	11R22.5, 8/12 units
6. Rim	8.25‑22.5, 8/12 units
7. Braking system	Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles
8. Electrical system	Dual circuit, 7‑way split pin receptacle plug, LED light
9. ABS	None
10. Painting	Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer
11. Mudguard	Plastic or steel
12. Others	1 tool box, 1 wheel carrier, excluding spare wheel
Optional Configurations
1. Air suspension	Firestone, Goodyear or Chinese brand
2. Lift axle system	Lift axle system
3. ABS system	Wabco or Chinese brand
4. Axle	BPW 12 ton
