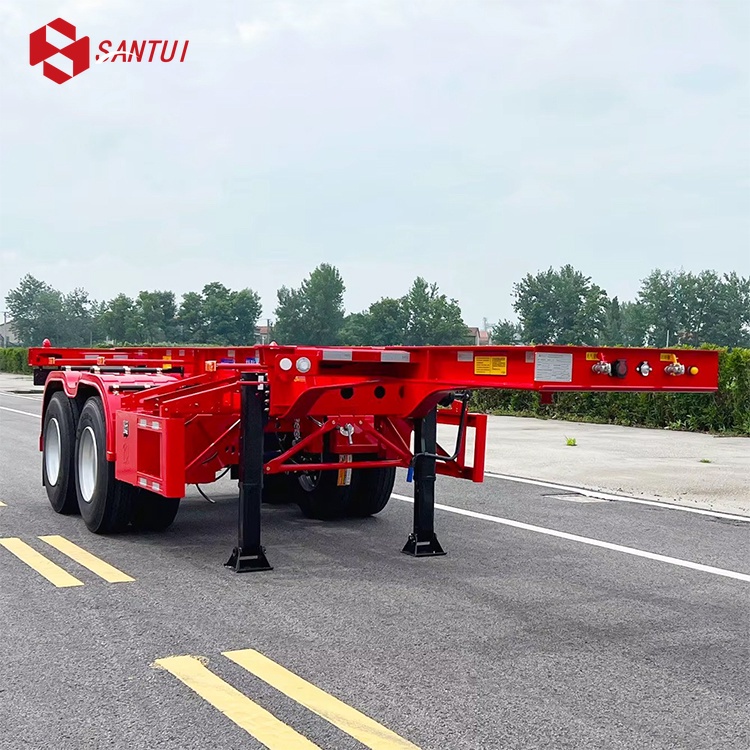

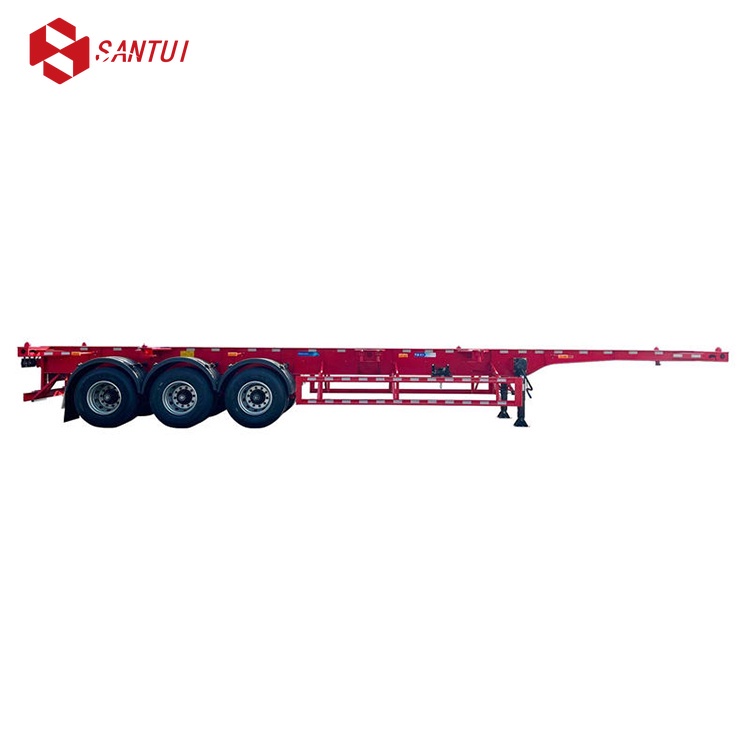

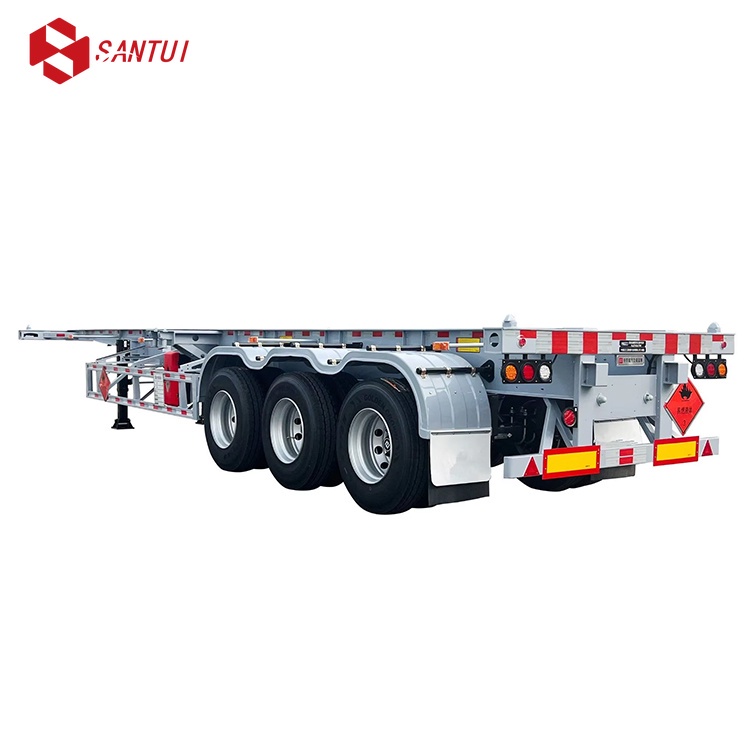

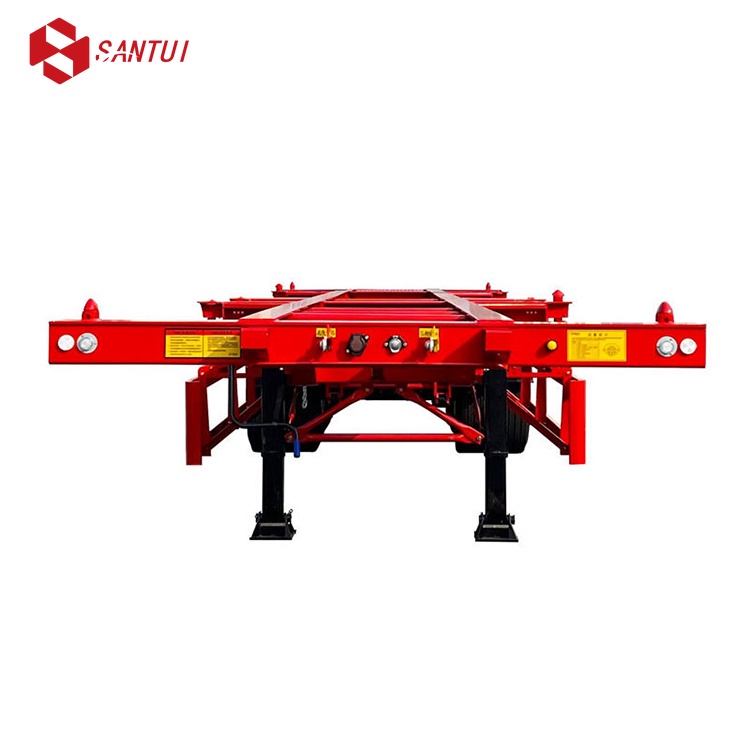

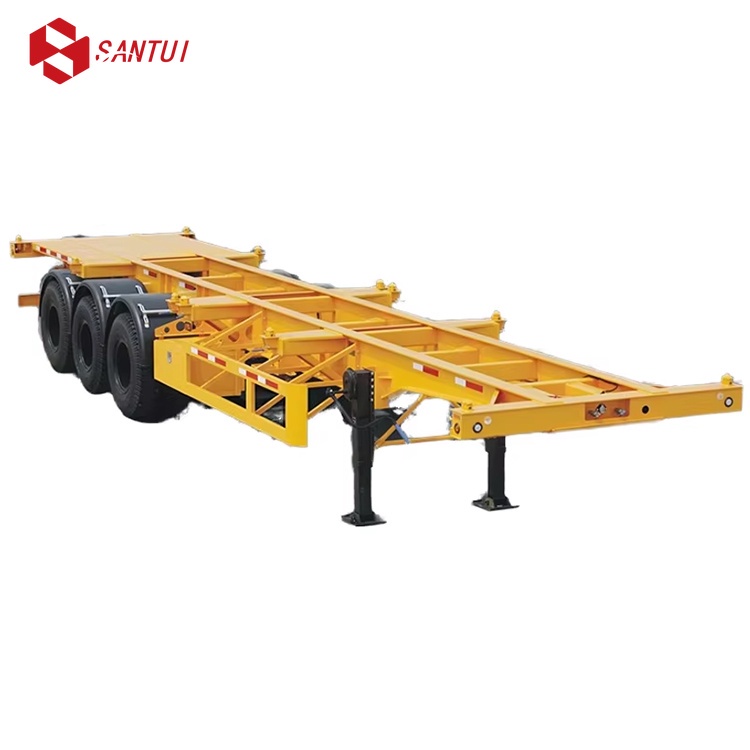

20/40/45FT Container Chassis Semi-Trailer

Product Description

Item	Specification
Size	12500mm2500mm1500mm (20ft 40ft 45ft optional)
Payload	25‑50T
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged‑Arc processes.Top flange 14mm,width 140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm
Side beam	No
Cross member	10# channel steel(Optional)
Floor	No
Axle	3 axle FUWA brand 13T (Optional)
Suspension	Mechanical suspension American type (Optional)
Leaf spring	Leaf spring 10pcs9013mm (Optional)
Tire	12R22.5 12pcs (Brand and specs optional)
Wheel rim	9.0‑22.5 12pcs (Brand and specs optional)
Kingpin	2"/3.5" bolt‑in /welded king pin
Landing gear	Two‑speed, manual operating ,heavy duty landing gear 28T
Twist lock	12pcs
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Lights	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
