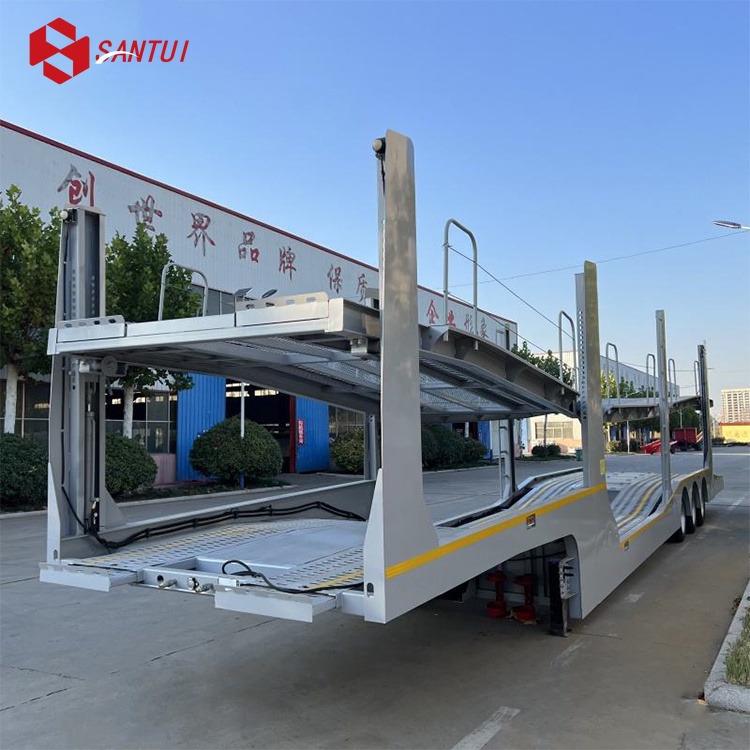

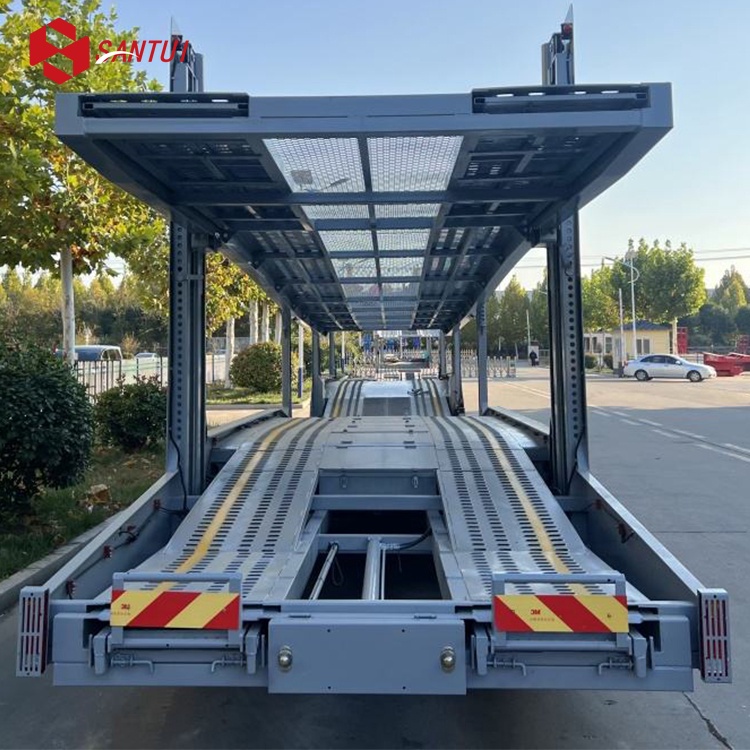

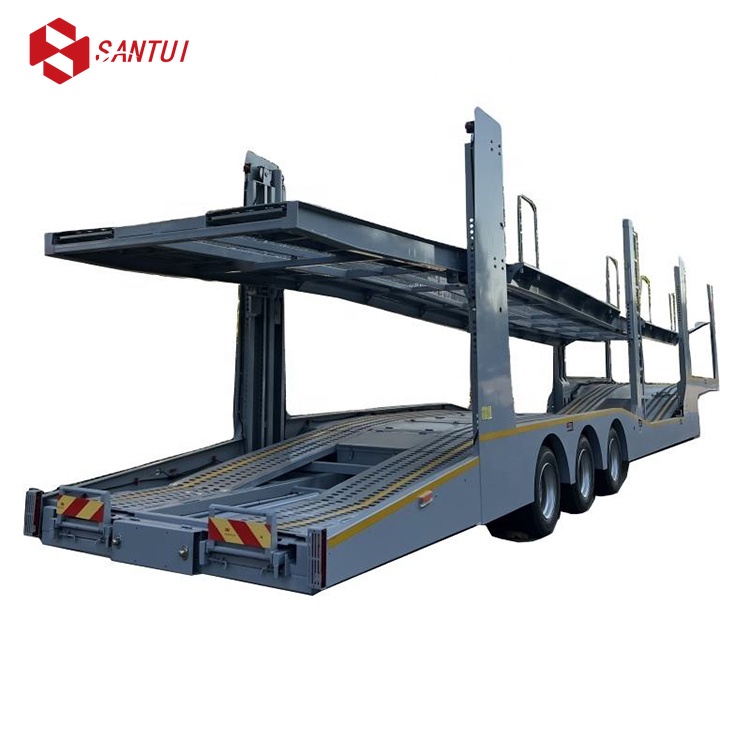

Factory Direct 3 Axles Car Carrier Semi-Trailer /Load 8 Cars

Product Description

Weight & Dimensions
Overall Dimension (LWH)	1710025503980mm
Curb Weight	10,440 kg
Loading Capacity	15,560 kg
Loading Height	4500 mm
Loading Cars	8 Cars
Style	Europe Design Model
Chassis
Axle	SAF Brand * 2pcs
Suspension	2 axle air suspension , SAF brandSuspension
Tires	245/70R19.5, equip 8pcs per chassis, Linglong brand
Rims	7.5 x 19.5
King Pin	3.5"(90mm) or 2.0'(50mm)
Main Beam	Heigh strength carbon steel, welded together via automatic submerged‑arc welding
Cross Beam	High Strength square pipe or channel steel
Landing Gear	28Ts, double speed
Painting	Complete chassis sand blasting, double primer Coating, double polyurethane painting
Body
Main Structure	Overall skeletal structure, Hydraulic lifting double‑deck
Hydraulic System	High quality hydraulic system
Rear Ramps	Both floors are with rear extendable double ramps by 1200mm

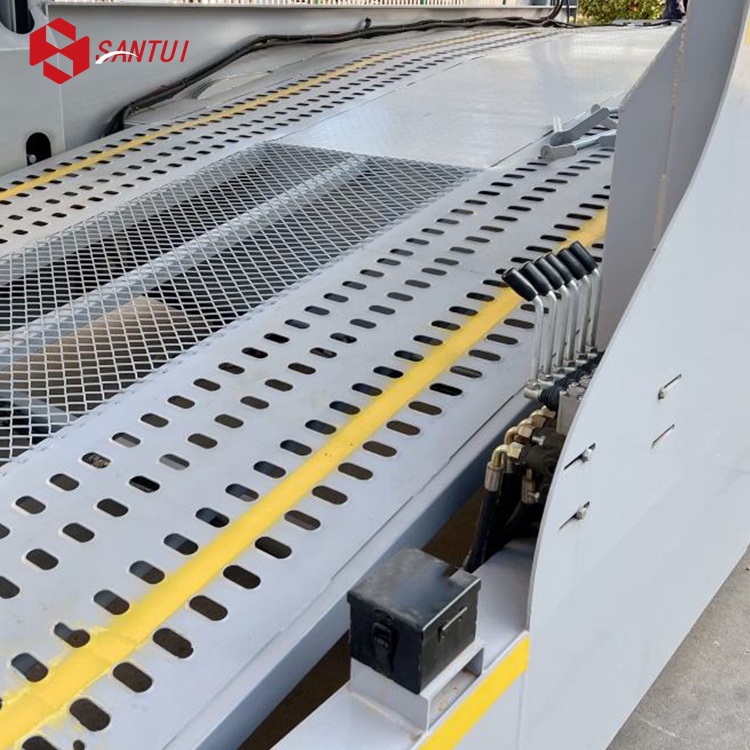

Operation System	6+2, or 7+2, or 7+3 handlers with operation instruction
Brake & Electric System
Brake System	2 lines air brake system with 2 air tanks, WABCO emergency relay valve, 4 brake chambers and slack adjusters
ABS	Yes
Electric System	A. 24V LED lights, 7 pin electric connectors.B. Parking, stop, reverse, turning and indictor lights conform to Europeen standard and 3 C certificate.C. Front, side and rear reflectors.
Accessory
Color and logo	According to customer's requirement
Spare Tire Rack	1pc
Tool Box	1pc
