Double Floor Steel Chassis 2 Axle Auto Car Carrier Semi Trailer

Tel：+0086 18153459109
WhatsApp：+86 18153459109
Email：ekko@sdshantuigroup.com
Contact Us

Product Description

ItemSpecification
Product NameCar Carrier Semi Trailer
Dimension(Lx W x H) (mm)17000x2700x3980mm (customizable)
Tare weight (kg)9800 (depends on final configuration)
Max Loading Capacity (kg)30000 (customizable)
Main Beam

Q345B / T700 Steel Height 300m

mupper plate is 12mm,

down plate is 12mm,

middle plate is 8mm. (customizable)

TypeTwo decks, top front deck and rear deck can be lifting and down separately by hydraulic system
Lifting type of upper floorHydraulic and manual lifting mechanism
Quantity of carried cars8 units
Axles13/16/20 Ton. Axle amount optional like 2/3/4axles …, Axle brand optional like SAF /FUWA/BPW etc
Tire12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional)
Rim9.00‑22.5/8.00‑20/8.50‑20
King Pin2"(50mm)or3.5"(90mm) JOST or other brand optional

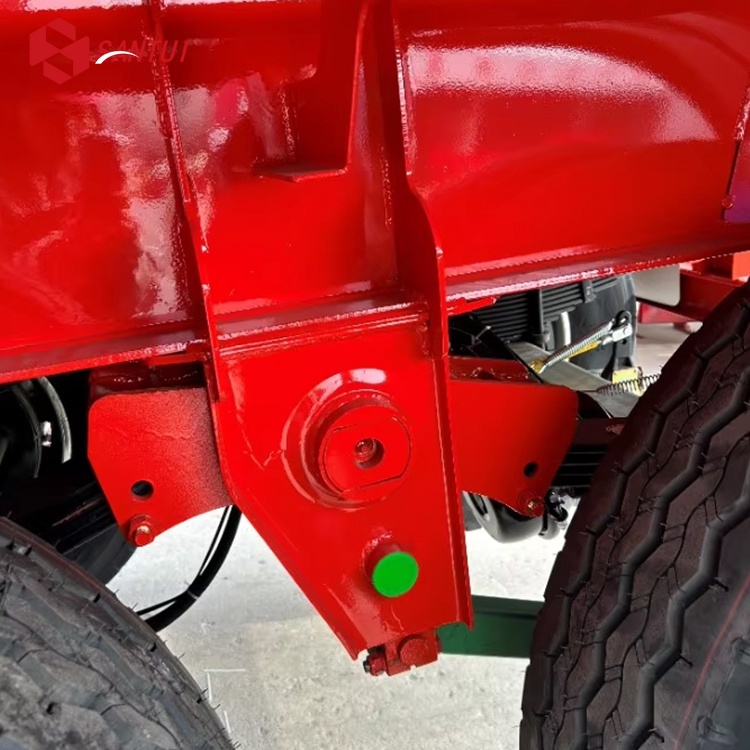

SuspensionMechanical Suspension Air Suspension(American or German)
Leaf Spring90(w)mm*13/16(thickness)mm*10(layer)
Landing Gear28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc.
Brake SystemDual line brake system, Air chamber T30/30,3 X 40L gas storage drums
ABS SystemNone or installed as your requirement.
Electrical system1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.)
ColorAs per customer requirement
Spare Wheel Bracket1 piece of Spare Wheel Bracket
Tool box1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
PaintingSand blasting before painting;one coats of primer, anti‑corrosion; two coat of finish painting;
PackingWax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.
DeliveryFrom China port, and carry by container ship, ro‑ro ship or bulk ship, the freight cost depends on the volume.
NotePls kindly noted that pictures and configuration information are only for your reference.The final product can be made according to specific requirements.


Product Display

1787888542951807294936215552.jpg@!w400
