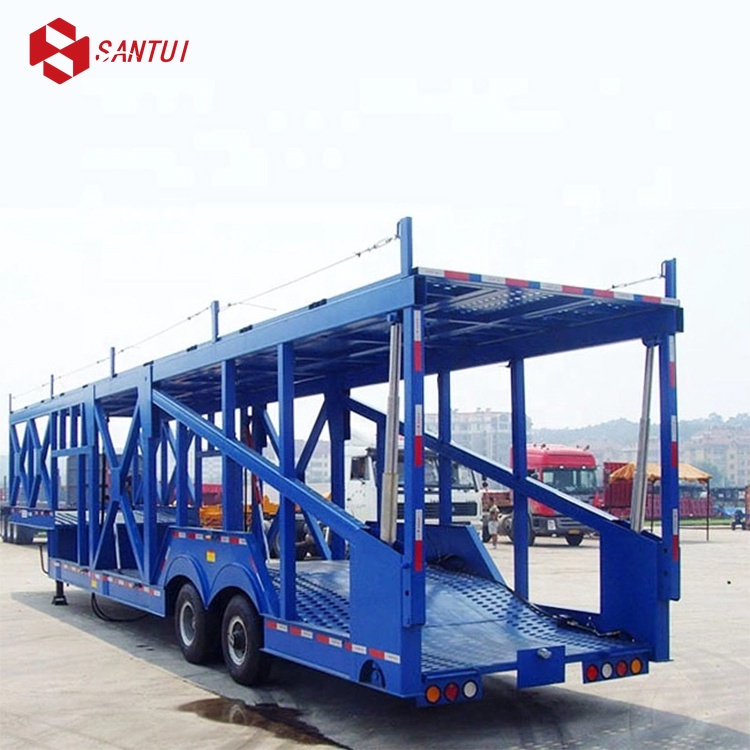

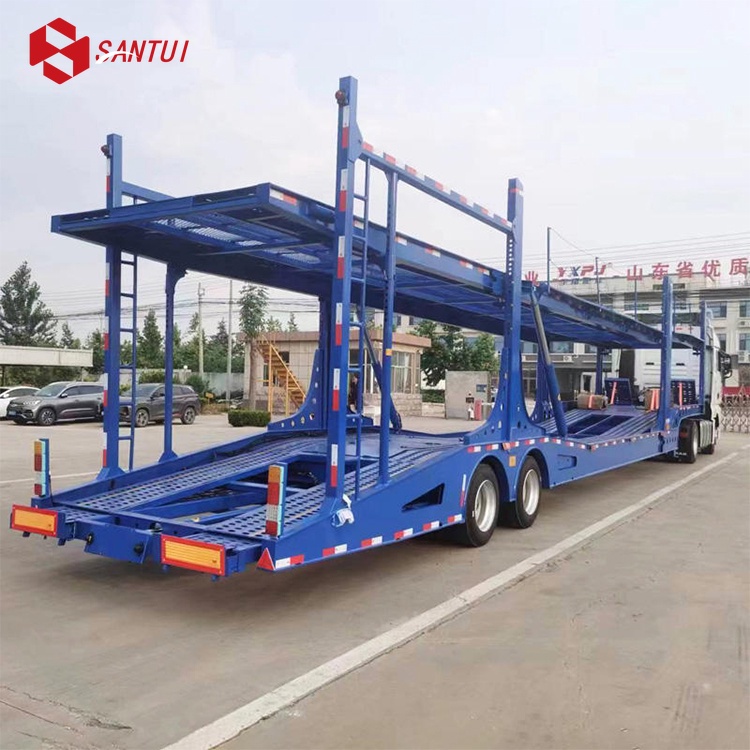

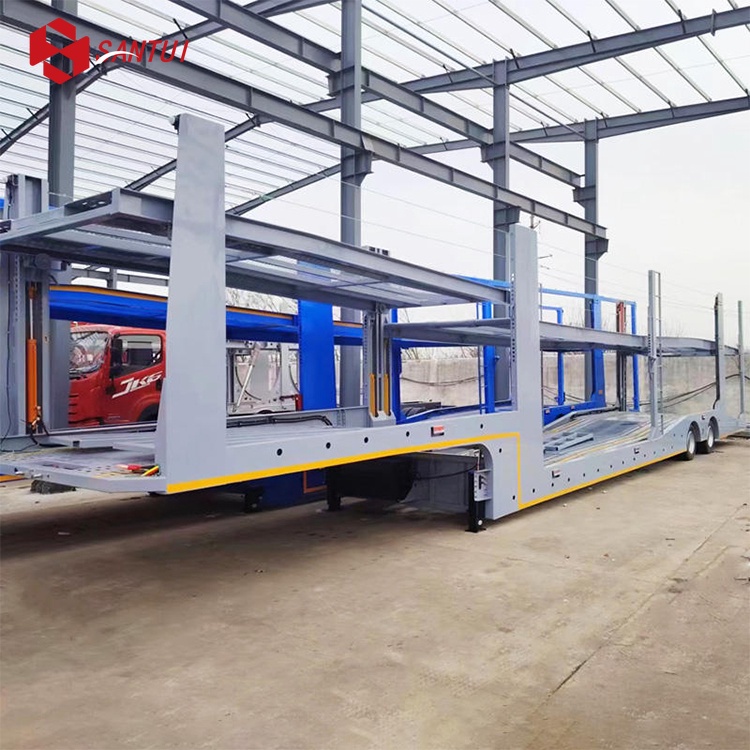

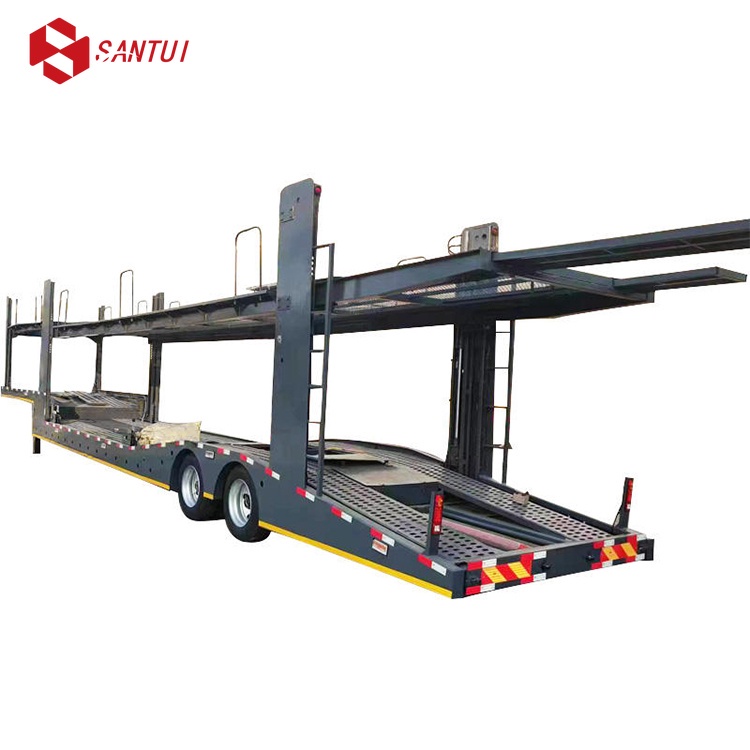

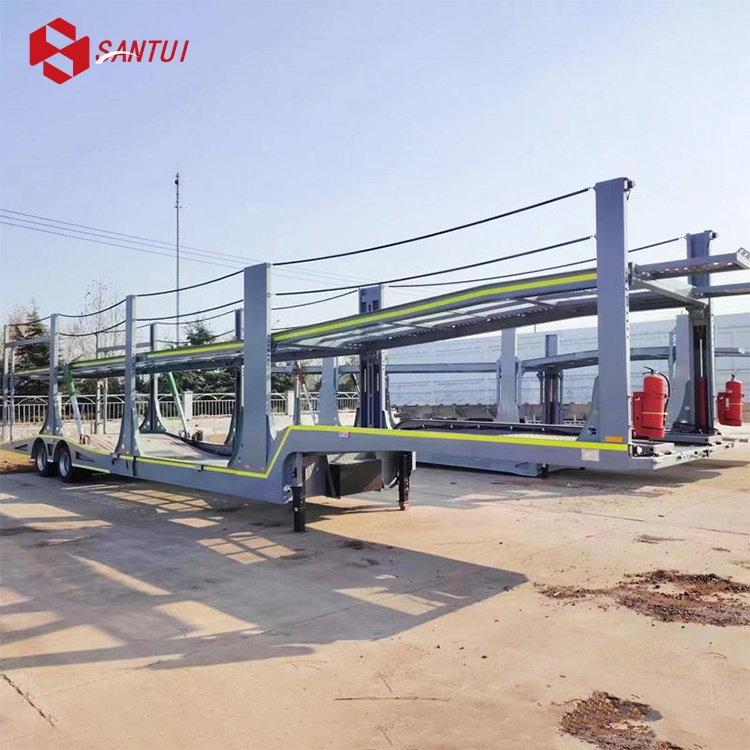

2 Axle Car Carrier Semi Trailer

Product Description

Main Description
Overall Dimension (L* W *H)	18560mm2600mm3950mm
King pin setting	1590mm
Wheelbase	10850mm+1350mm
Ground clearance	200mm
Track	2203mm
Height of loading surface	435mm
Running Gear
Suspension	Mechanical suspension with 3‑pcs leaf spring
Hubs	Cast steel 10 studs
Rim & Tire	Rim 9.0‑22,5, 6 units tire 12.R22.5,
Axles	3 units AQ 10T concave axles
Brakes	Dual lines pneumatic brake system, 30/30 chambers, air‑actuated
Under Frame
Main Beam	I shape, Mild Alloy (16Mn) by Automatic submerged arc welding, welded on left and right sides
Cross beam	Mild Alloy Q235
King pin	50# (2") welded on plate (optional 90#)
Landing Gear	Static capacity 15Ton
