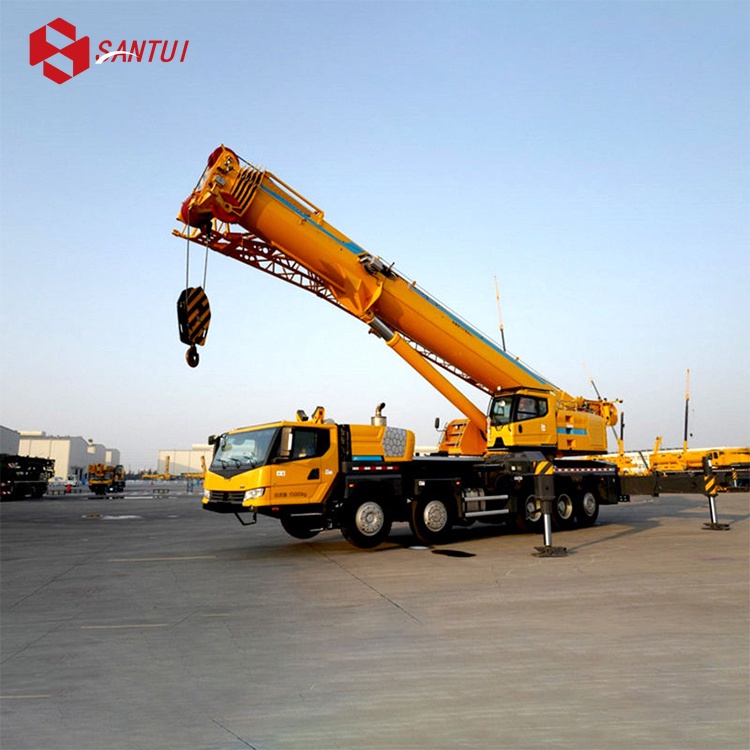

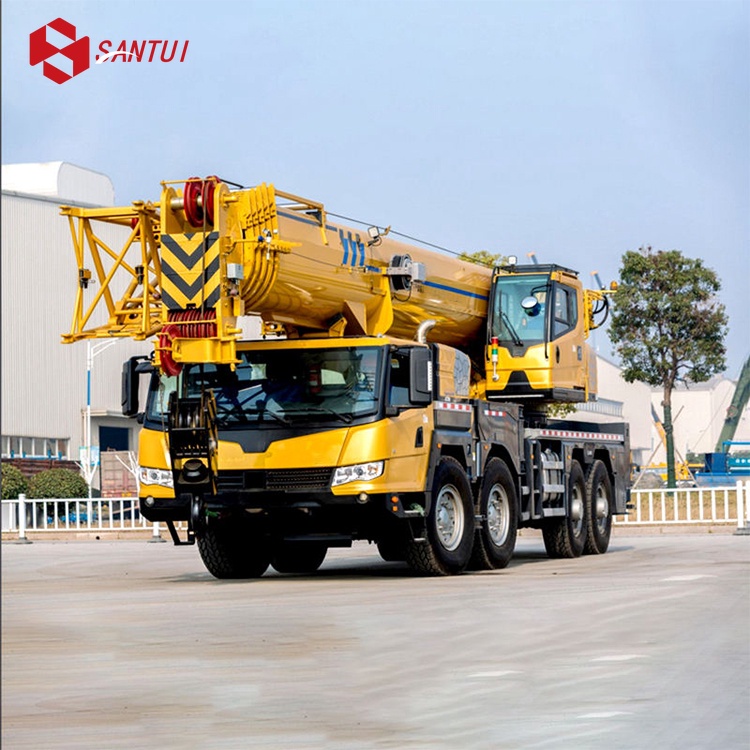

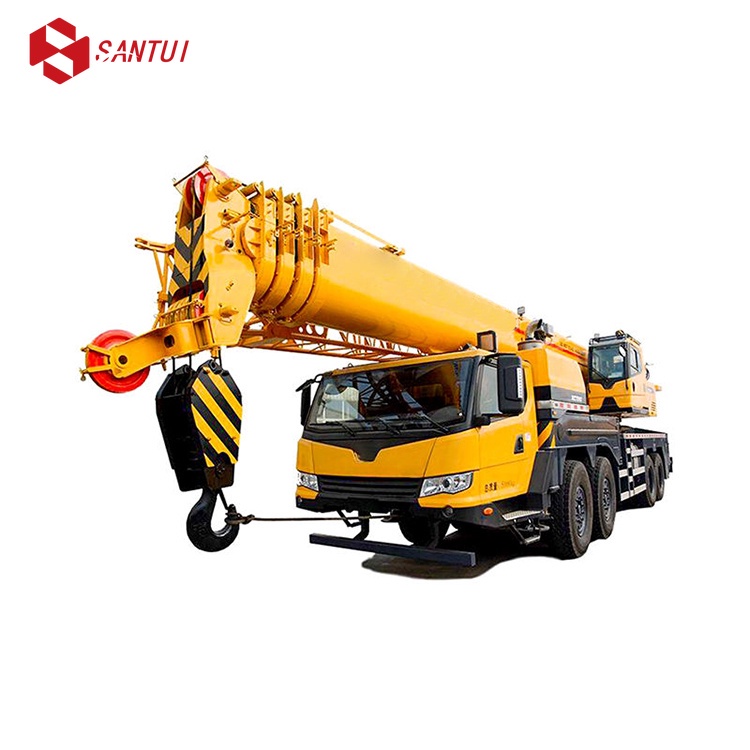

Brand New Boom Truck Crane 80 Ton

Product Description

Description	Unit	Parameter value
Overall length	mm	15000
Overall width	mm	2750
Overall Height	mm	3990
Wheel Base	mm	2000+4000+1350
Track	mm	2353/2353/2063/2063
Total vehicle mass in travel configuration	kg	50000
Axle load	kg	12000/12000/13000/13000
Engine Model		MC11.40-50 ,MC11.40-60
Engine rated power	kw/(r/min)	297/1900,297/1900
Engine rated torque	N.m/(r/min)	1900/1000-1400,1907/1000-1400
Max. travel speed	km/h	≥90
Min. travel speed	km/h	2.5~3
Min. turning diameter	m	≤24
Min. ground clearance	mm	303
Max. grade ability	%	47
Approach angle	°	20
Departure angle	°	14
Braking distance	m	≤10
Oil consumption per 100km	L	44
Max. total rated lifting capacity	t	80
Min. rated range	m	3
Turning radius at turntable tail	mm	4260,4290
Outrigger span Longitudinal	m	7.8(7.16)
Outrigger span Lateral	°	7.9(5.9)
Base boom	m	13.3
longest boom	m	50.5
Longest main arm + second arm	m	75.5
Max. slewing speed	r/min	≥2.0
