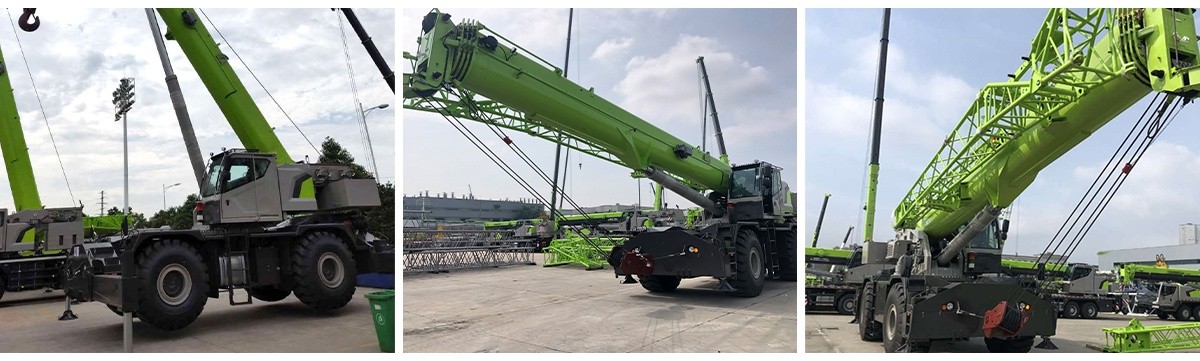

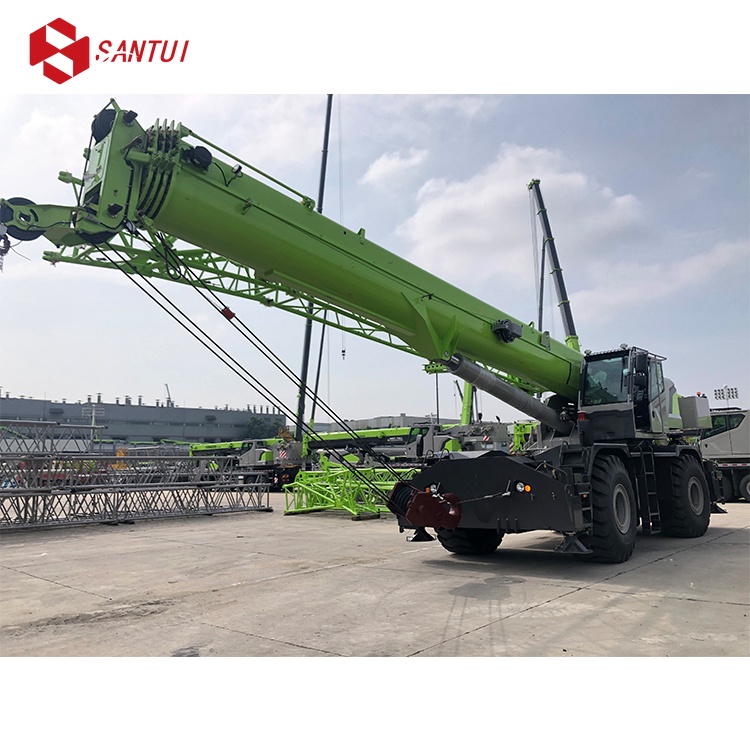

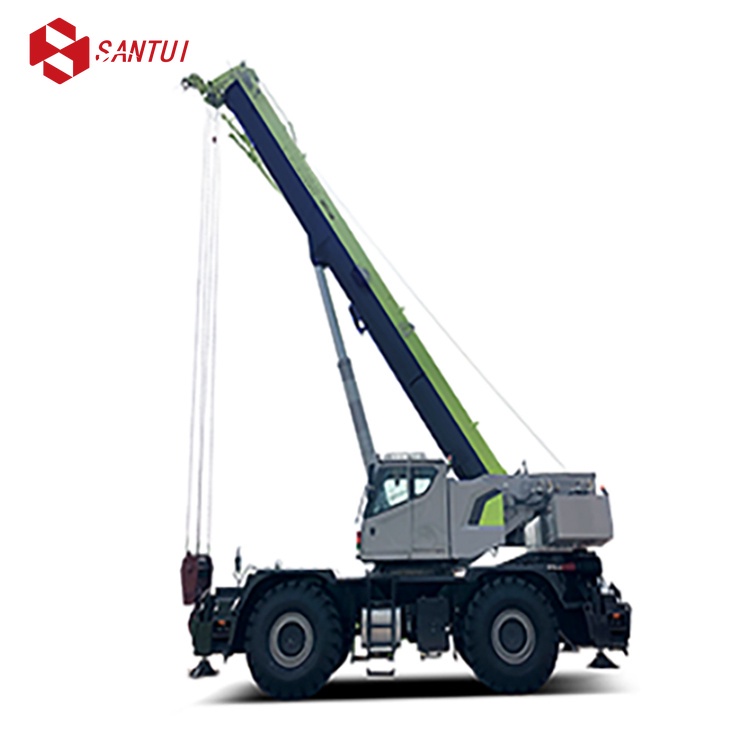

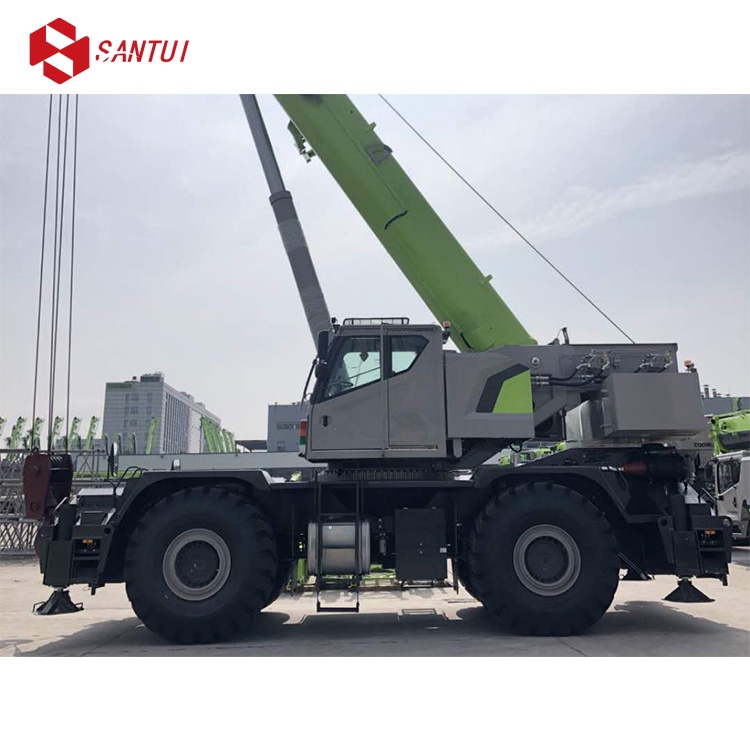

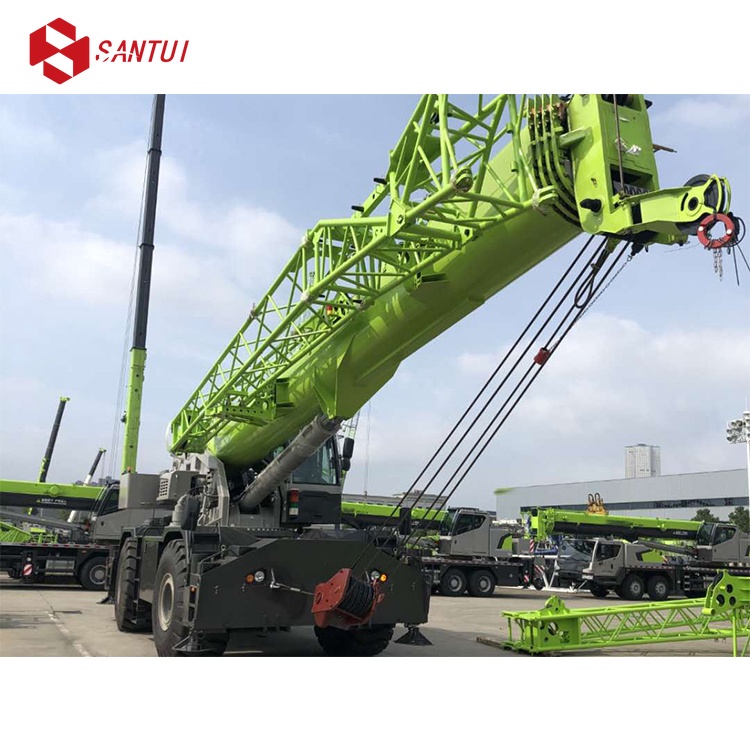

Brand New 110Ton Mobile Truck Crane / Rough Terrain Crane

Product Description

TYPE	NO.	ITEM	UNIT	VALUE
Work performance	1	Max. rated lifting capacity	kg	110000
	2	Max. load moment of basic boom	kN.m	3381
	3	Max. lifting height with the main boom + jib	m	66.8
Dimensions	4	Overall dimensions (L × W × H)	mm	15000 × 3400 × 3910
	5	Outrigger spread (L × W)	mm	7580 × 7600
	6	Main boom length	mm	12600 – 49000
	7	Jib length	mm	10400/17500
Mass	8	Complete vehicle mass	kg	60000
Travel	9	Max. driving speed	km/h	35
	10	Min. turning diameter	m	15
	11	Max. gradeability	%	96.7
Engine	12	Model		QSB6.7
	13	Rated power	kW	194
	14	Rated rotational speed	r/min	2500
	15	Emission standard		Tier 3
