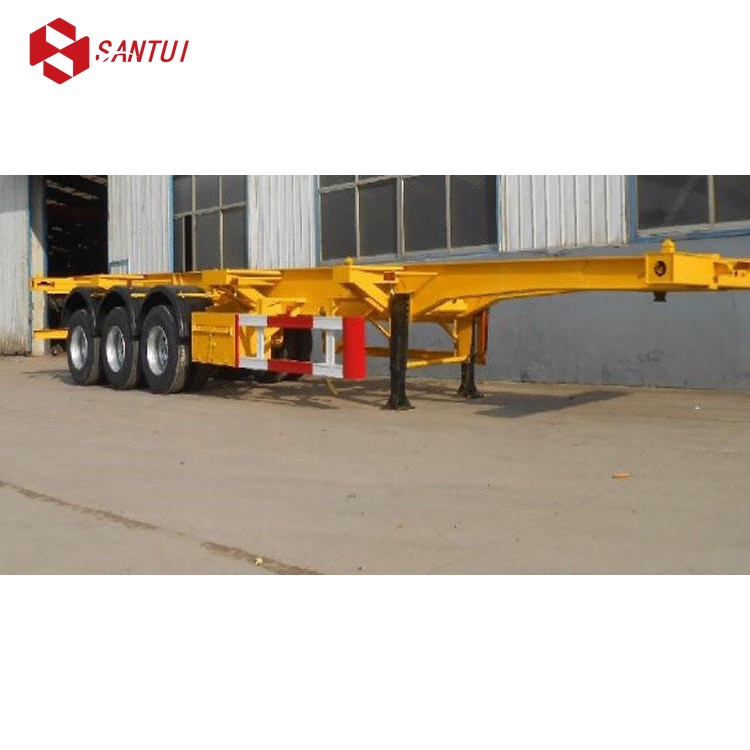

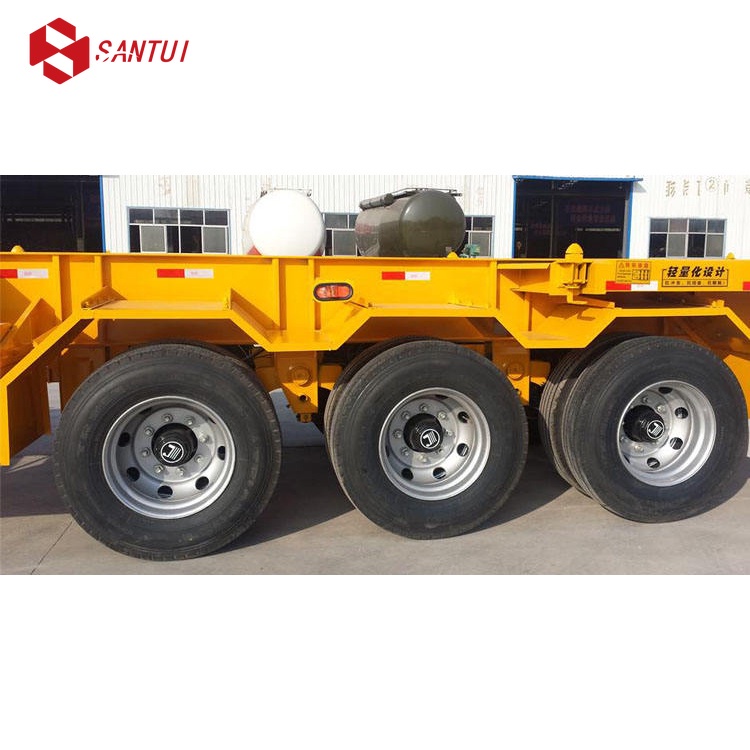

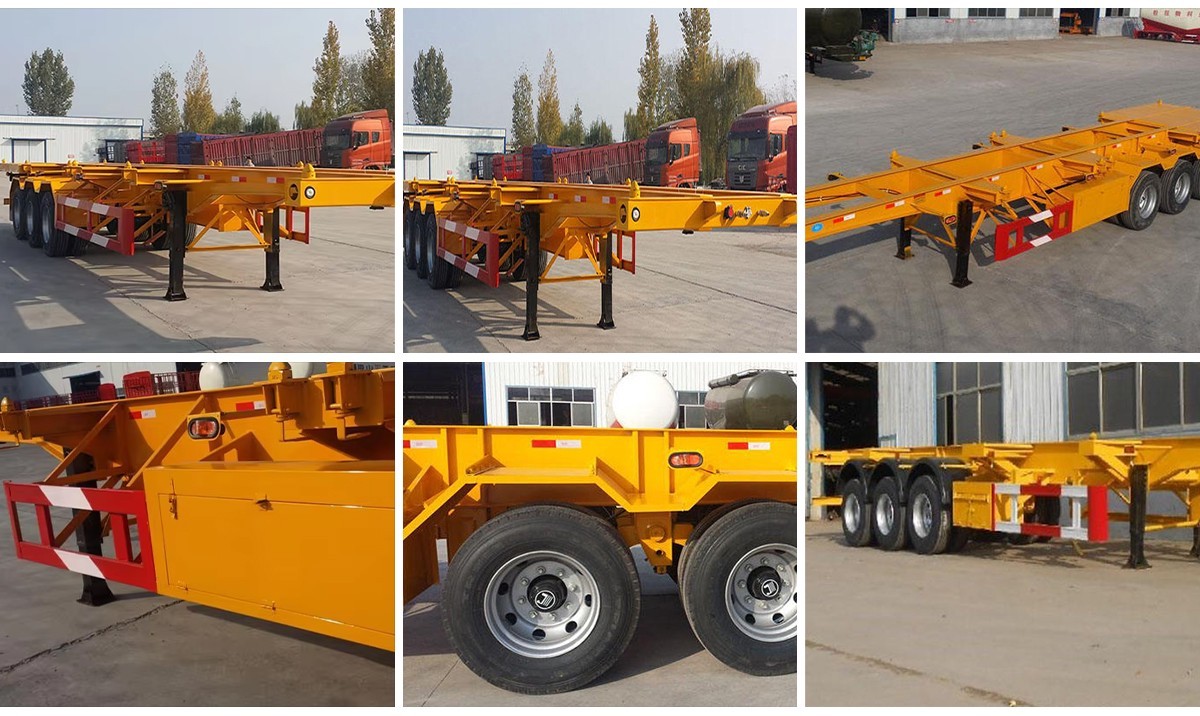

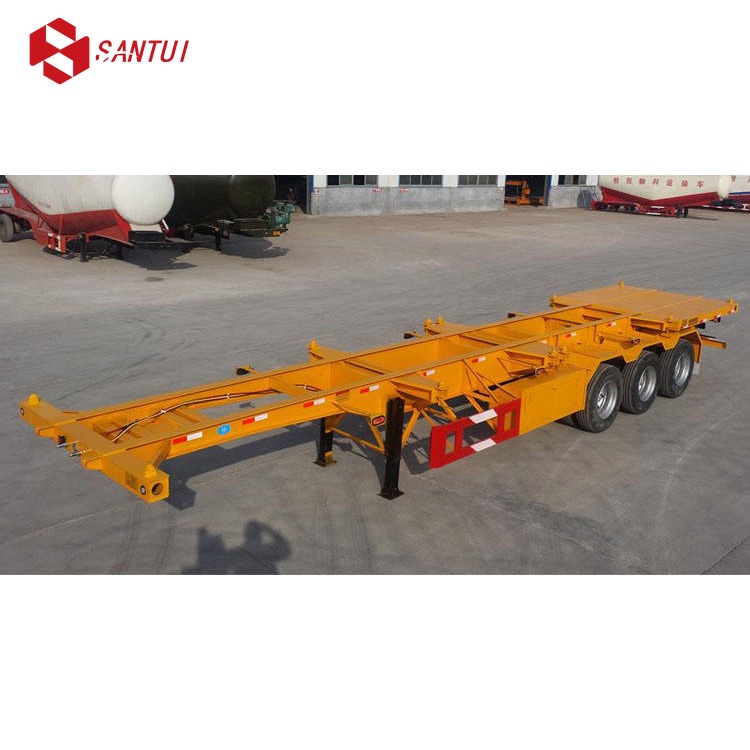

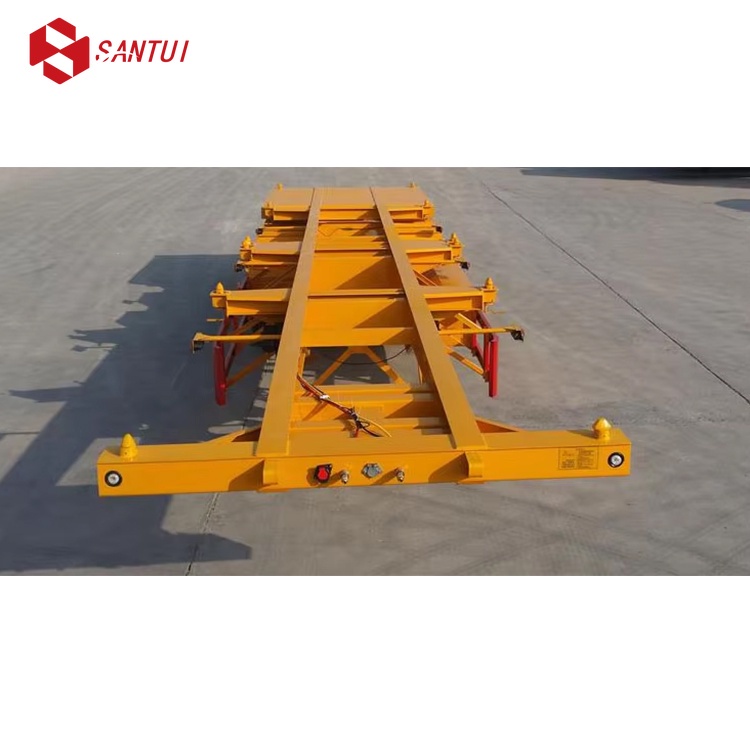

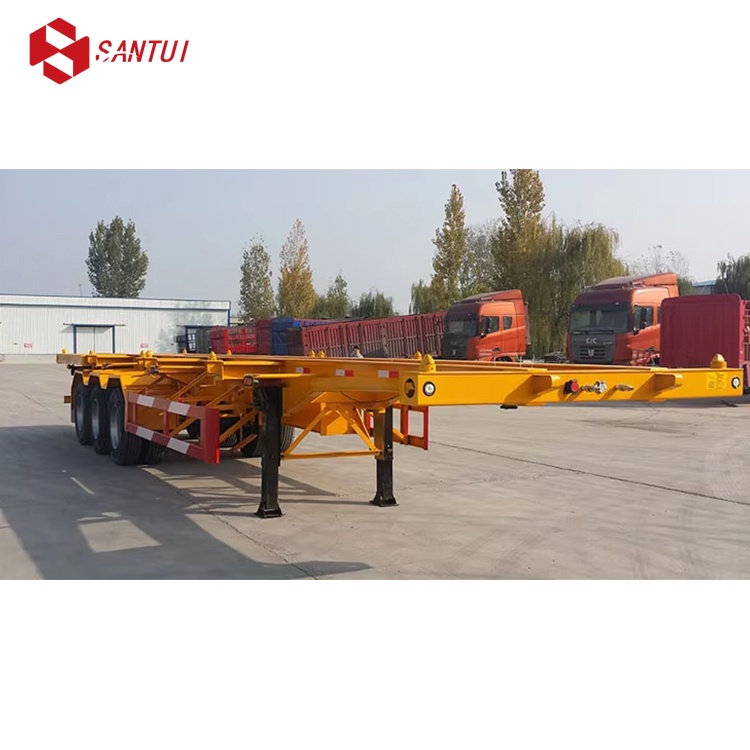

40ft 45ft Steel Container Carrier Semi Trailer Skeleton Trailer/ New semi-trailer / Used Semi-trailers

Product Description

Tare Weight	About 5.5T
Dimension	12450mm2490mm1575mm
Tare Weight	About 5.5T
Dimension	12450mm2490mm1575mm
Loading Capacity (T)	≤ 45 T
Axle	13 T/16T, FUWA /BPW /Jinsheng Brand
Rim	9.00-22.5
Tire	12.00R22.5/ 315 80R22.5
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Side beam	16mm or 18mm channel steel ( Material is Q235steel ).
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)

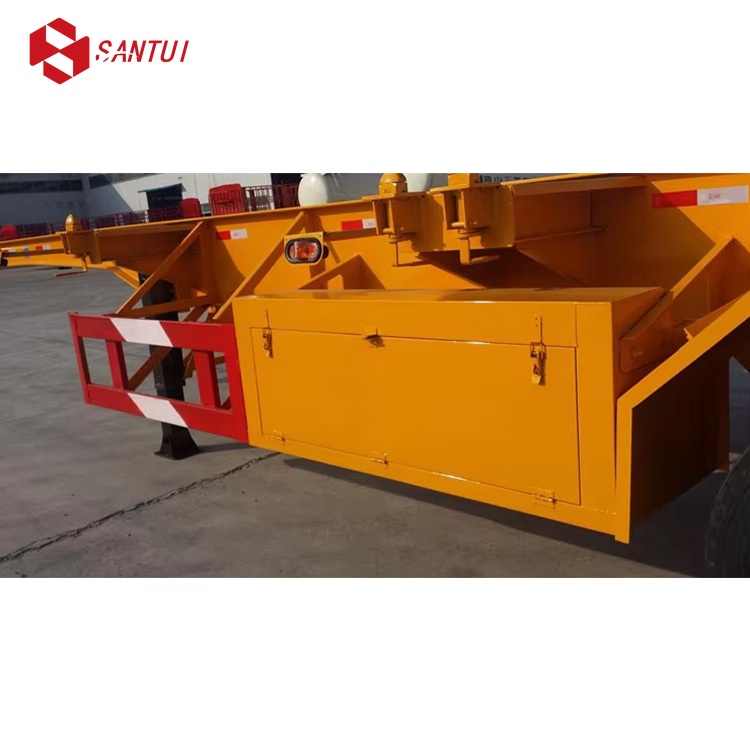

Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
