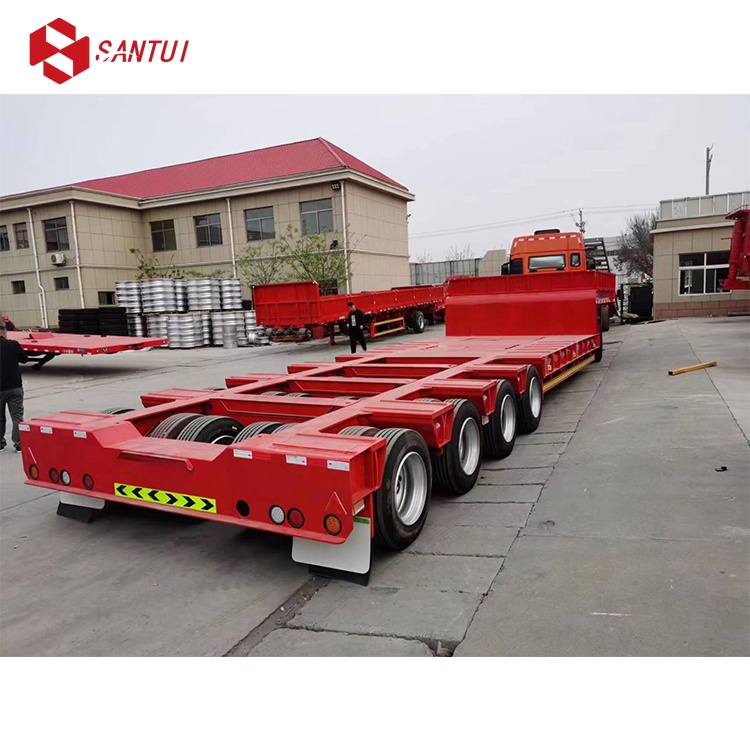

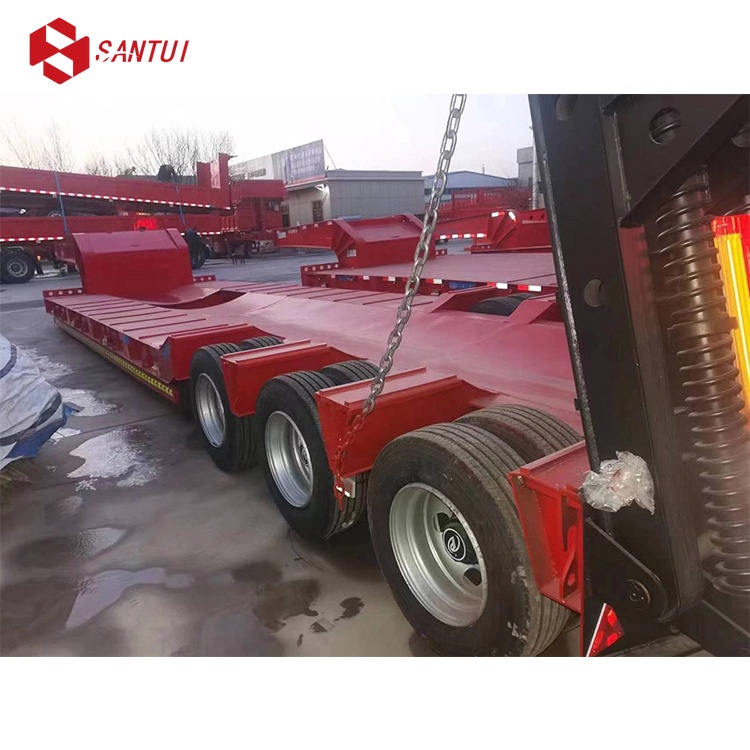

New/Used Heavy 3-wheel Low-Profile Semi-trailer/Towing Vehicle, with a load capacity of 40 tons

Product Description

Size	1300030001100 (mm)
Payload	40000KG-60000KG
Main beam	Heavy duty I beam.
Side beam	250mm I beam
Plate	4mm checked plate

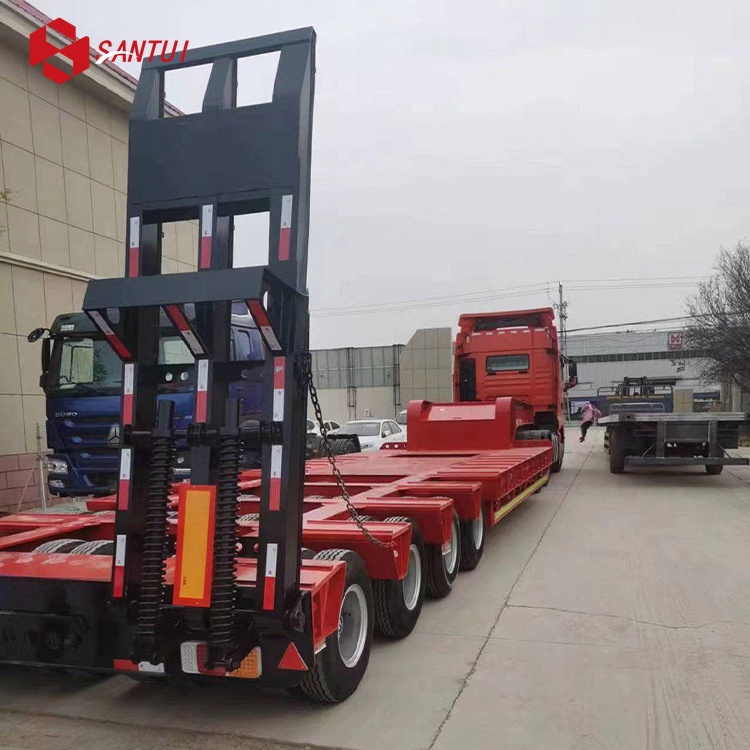

Ladder	Mechanical spring ladder or hydraulic ladder
Axles	3 * 13ton capacity (Brand optional)
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	10pcs
Tire	12R22.5 / 11.00R20 12pcs (Other size optional)
Rim	9.00-22.5 / 11.00R20 12pcs (Other size optional)
Kin pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Sand blasting processing clean rust 1 coat of anticorrosive primer 2 coats of finish urethane paint Color as customer choice
Accessory	One tooling box with a set of standard trailer tool
Usage	Is applicable for the transportations of the mechanical equipment,
	large objects, highway construction equipment, large tanks,
	power plant equipment or machine, and all sorts of steel products.
Other Descriptions	The cargo platform is lower than others, is applicable for unsound road condition, ensuring the stablenessof the transportation.
