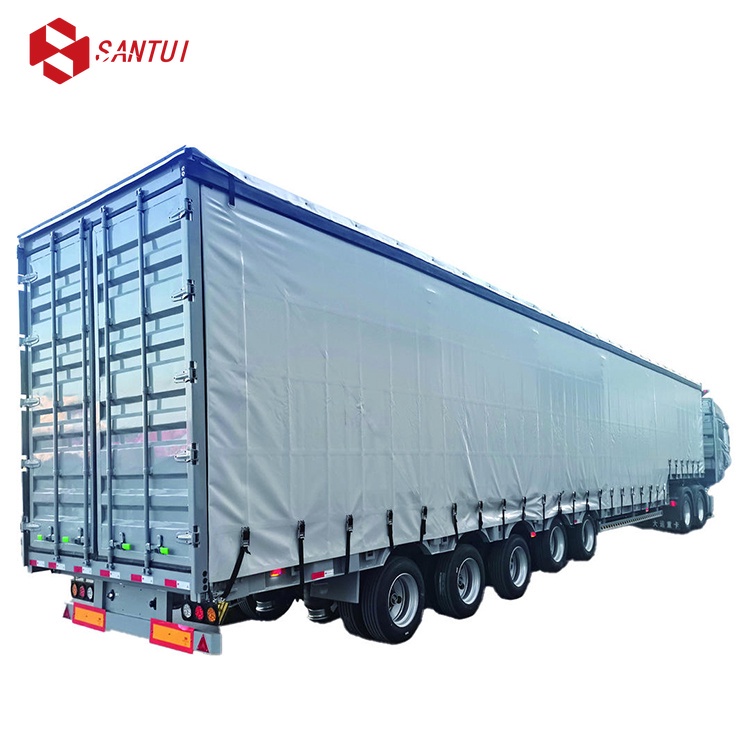

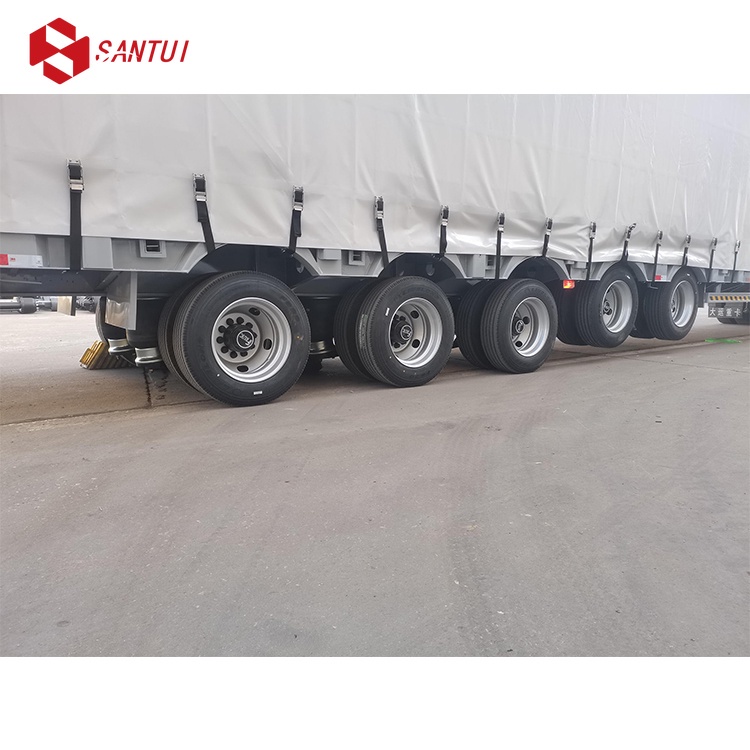

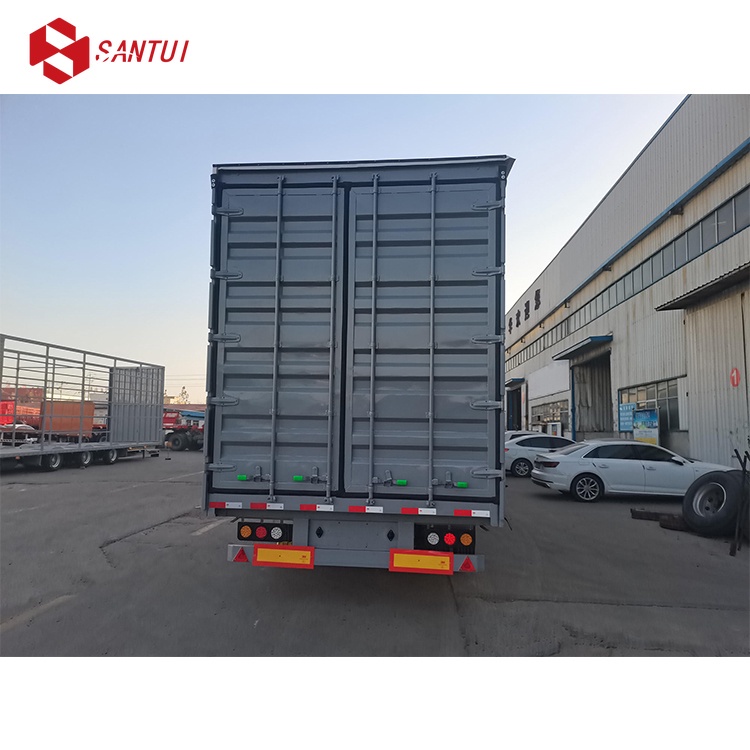

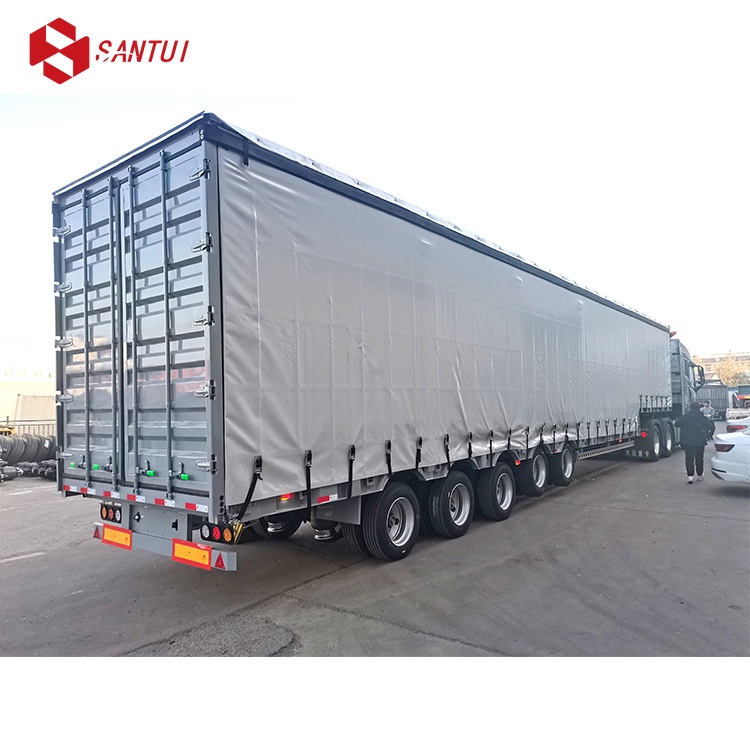

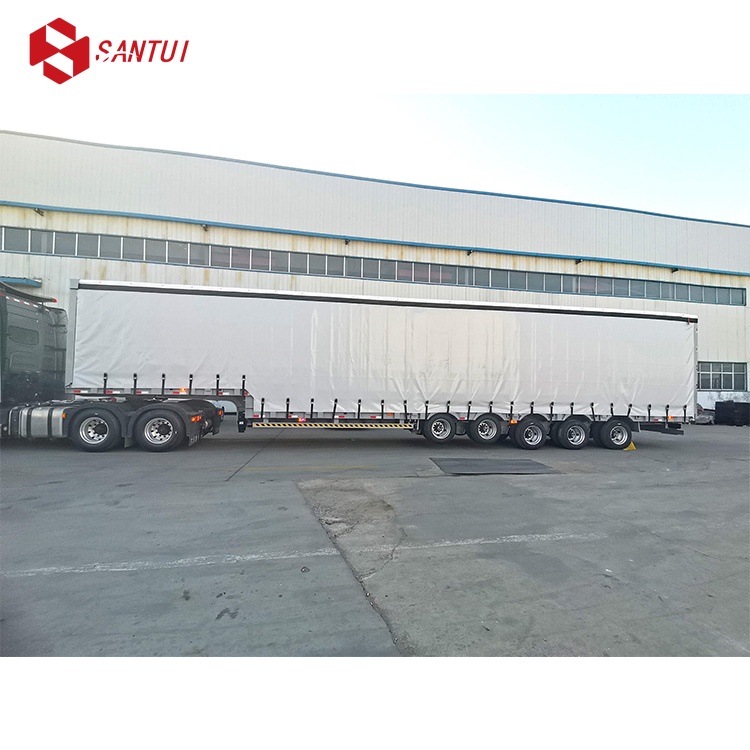

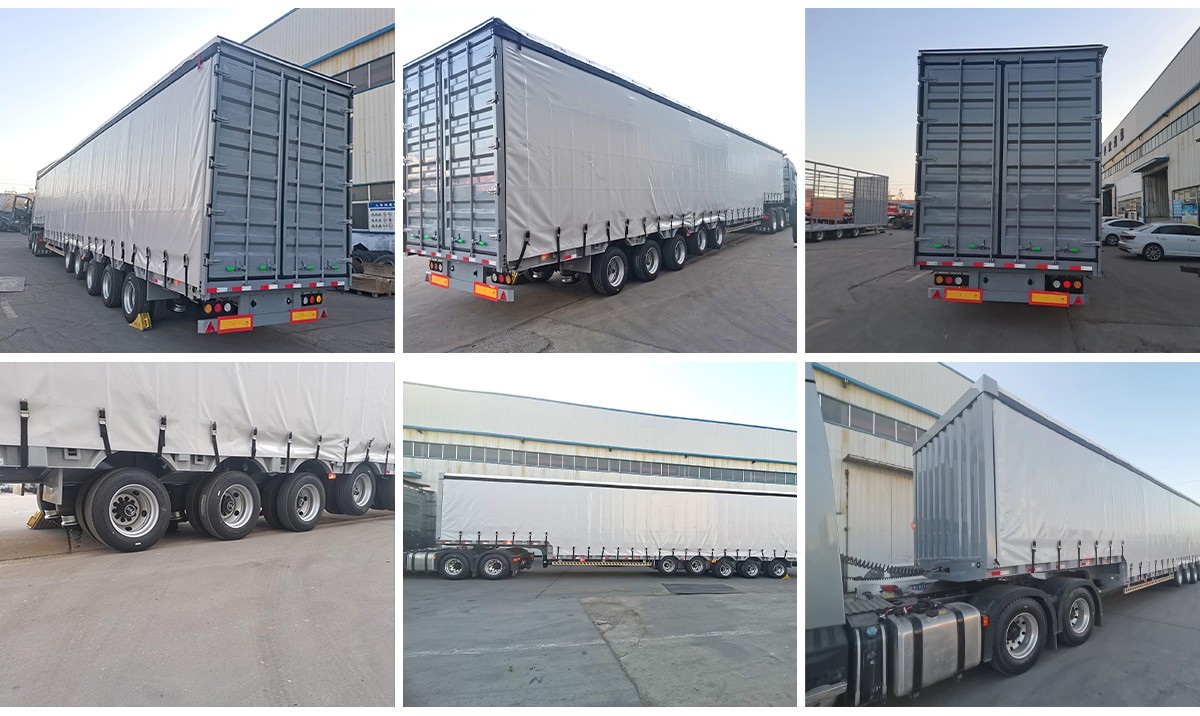

Durable 40 ft Curtain Side Semi Trailer 3 Axles Steel Van Trailer Cold Resistant

Product Description

Type	cargo semi trailer
Tare Weight	Approx. 7.2 T
Dimension	1360025003800mm
Loading Capacity	50 T
Axle	13T/16T, FUWA/BPW/SHENGRUN, etc
Rim	9.00*22.5/8.00-20/8.5-20
TIRES	1200R22.5 Triangle brand
Suspension	Mechanical suspension(Germany type or America type) or Air suspension
Leaf Spring	90(width)mm13(thickness)mm10 layer(especial for exporting market)
King pin	Jost brand 2.0 or 3.5 inch
Spport leg	Jost brand two speed
Main beam	Q345B steel
Side beam	16mm channel steel (Material is Q235B steel)
Bottom Platform	3mm checquered steel plate
Side wall	600 mm height (can be customized)
Brake chamber	Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks
ABS	KEMI
Twist locks	Optional
Valve	Wabco valve (especial for exporting market)
Light	LED Light (especial for exporting market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece 1m 0.5m0.5m ( size can be customized)
Painting	Complete chassis sand blasting to clean rust, 1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer
