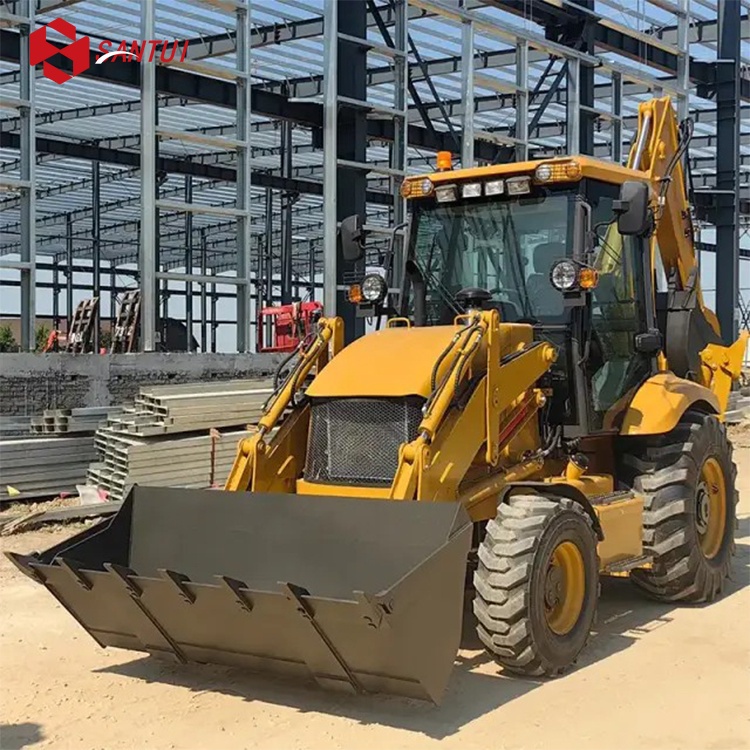

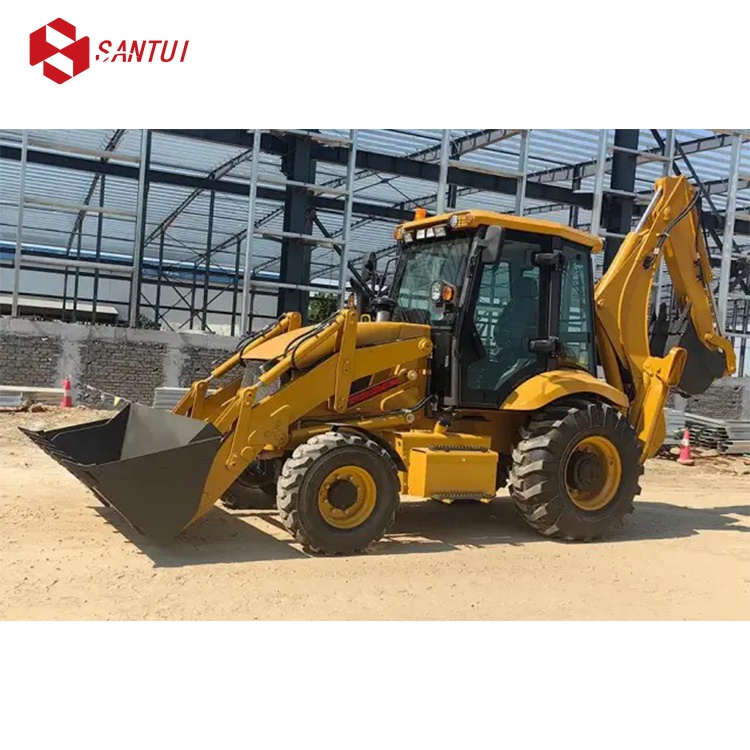

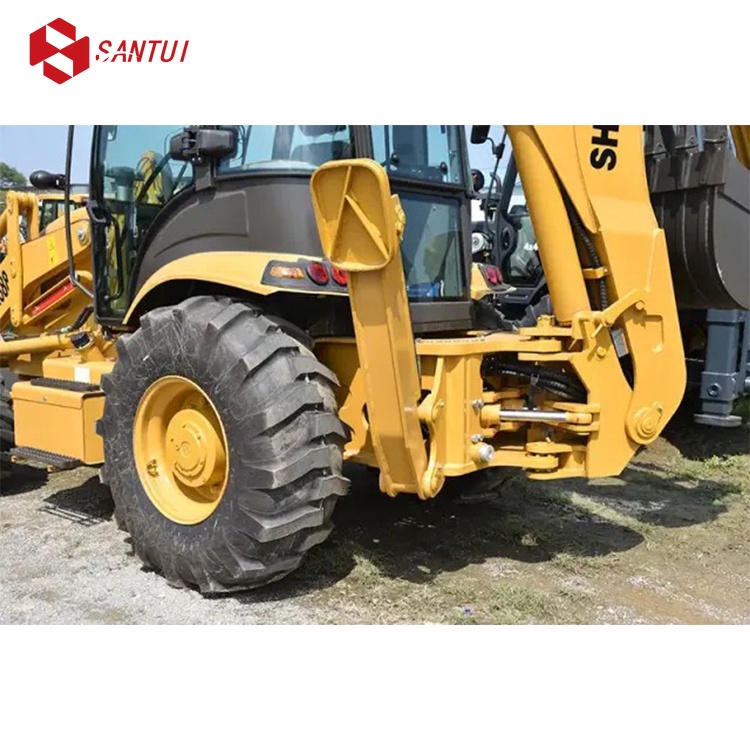

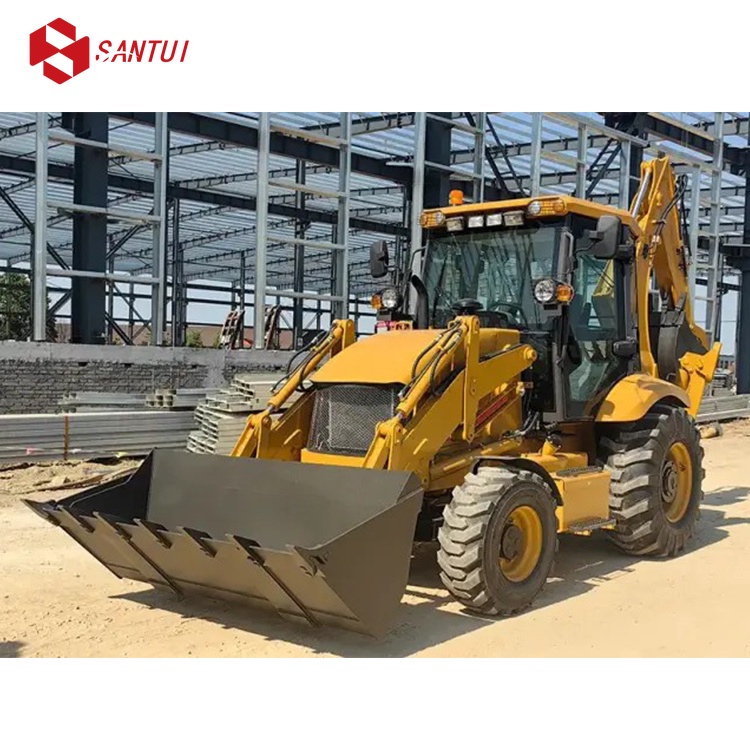

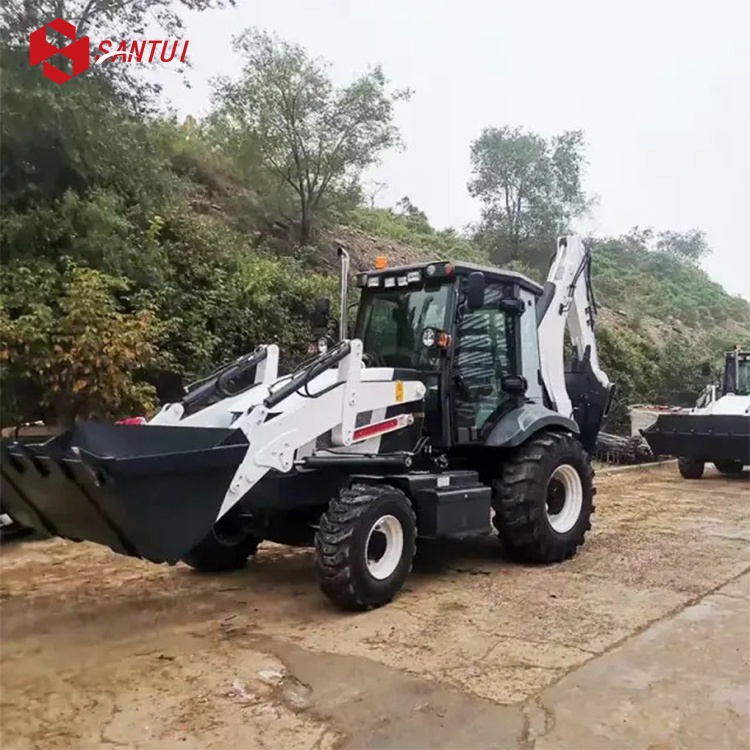

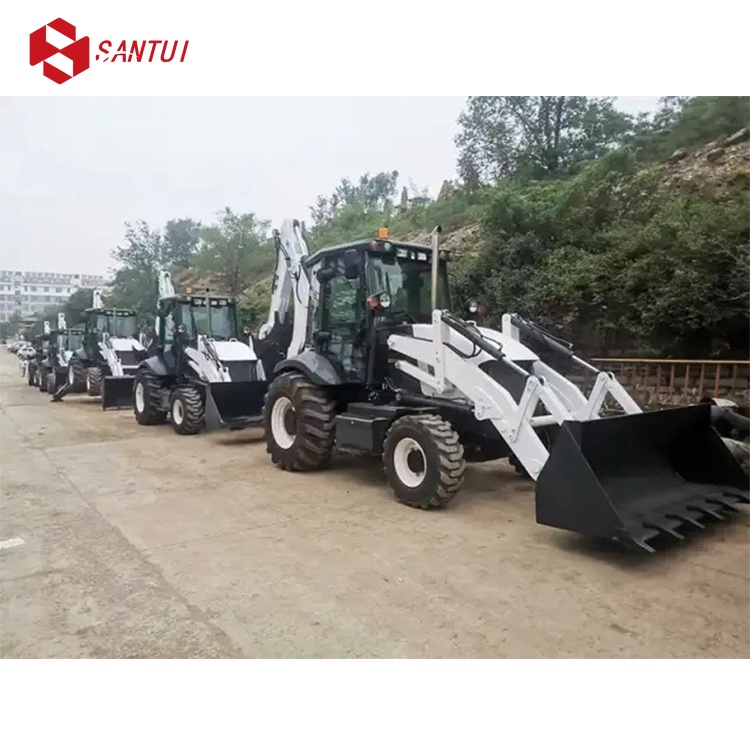

388 Backhoe loader / Brand New Backhoe Loader

Product Description

Overall Operating Weight	8200KG	Final Reducer	Single Stage Final Reducer
Transport Dimension		Rated Loader of Axle	8/18.5t
LWH mm	6120×2410×3763
cab to ground mm	2900mm	Transmission System
Wheel base	2248mm	Torque Converter
Min. Ground Clearance	300mm	Model	YJ280
Bucket Capacity	1.0m3	Type	Single-stage Three Elements
Breakout Force	38KN	Max. Efficiency	84.4%
Loading Lifting Capacity	2500KG	Gearbox
Bucket Dumping Height	2742mm	Type	Fixed Shaft Power Transmission
Bucket Dumping Distance	925mm	Oil Pressure of Clutch	1373Kpa-1569 Kpa
Digging Depth	52mm	Gears	Two Gears Ahead, Two Gears Astern
Backhoe Capacity	0.3 m3	Max.Speed	30Km/h
Max. Digging Depth	4082mm	Tyre
Swing Angle of Excavator Grab	190o	Model	14-17.5/19.5L-24
Max. Pulling Force	39KN	Pressure of Front wheel	0.55Mpa
Engine		Pressure of Back Wheel	0.223Mpa
Model	YC4A105Z-T20	Brake System
Type	In Line Direct injection Four-Stroke and Injection Combustion Chamber	Emergency Brake	Operation Power Implementing brake
Cylinder-Inside Diameter*Stroke	4-108×132		Manual Operation Power Terminating Brake
Rated Power	75KW	Service Brake	Air Over Oil Caliper Brake
Rated Speed	2200r/min		External Type
Min. Fuel Consumption	≤230g/km.h		Self-regulation
Max.Torque	≥400N.M		Self-balance
Displacement	4.837L	Hydraulic System
Steering System		Digging Power of Excavator Grab	46.5KN
Model of Steering Device	BZZ5-250	Digging Power of Dipper	44KN
Steering Angle	±36 o	Bucket Lifting Time	6．8S
Min. turning radius	6581mm	Bucket Lowering Time	3.1S
Pressure of the system	18Mpa	Bucket Discharge Time	2.0S
