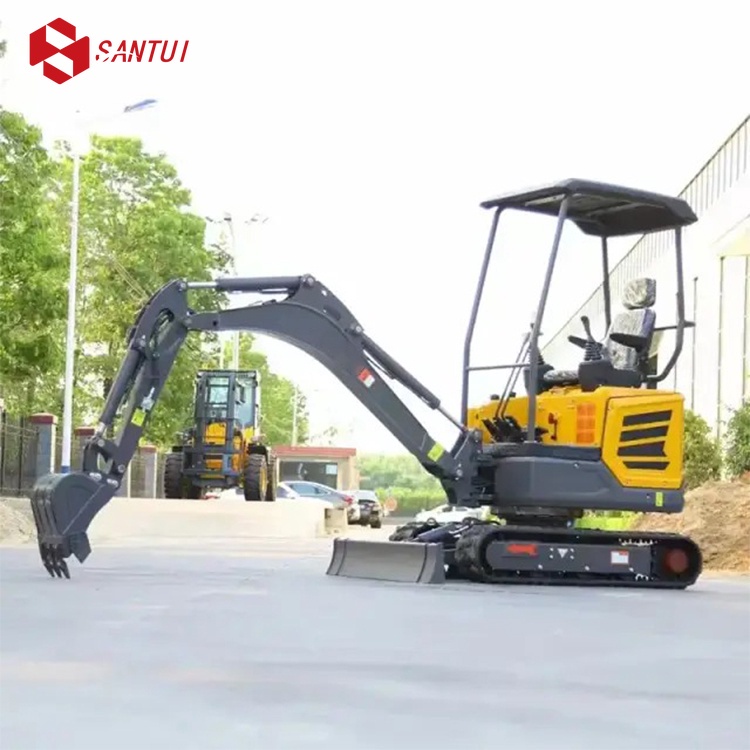

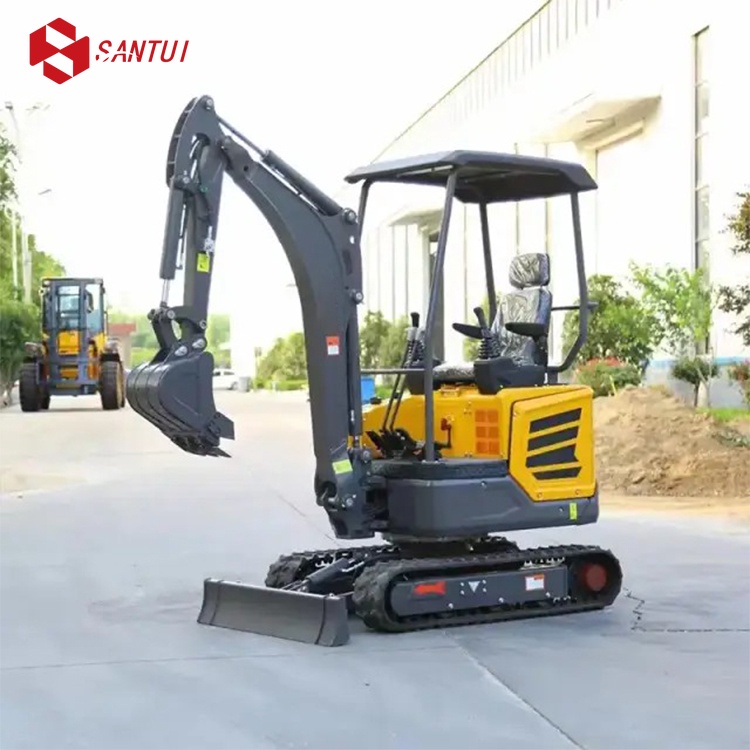

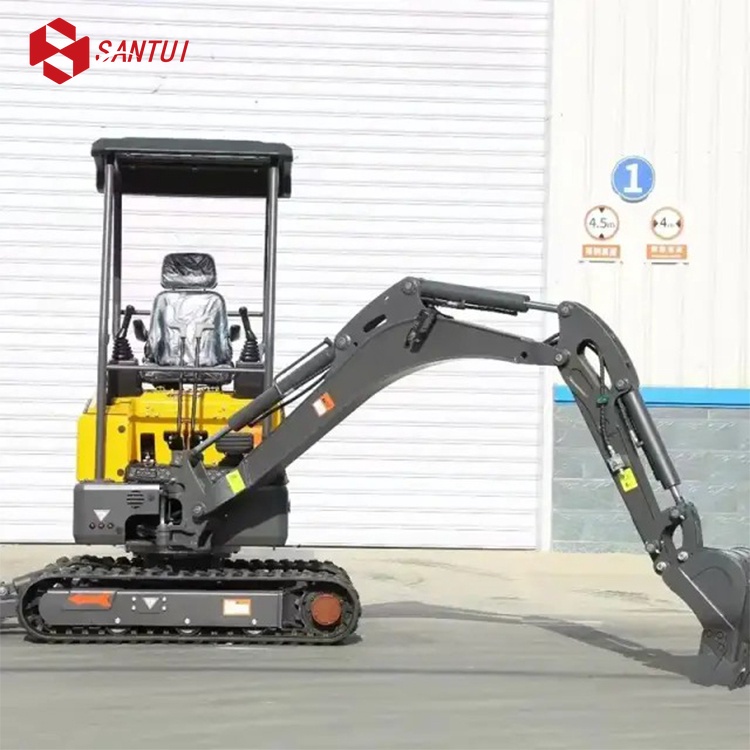

YJ25 Excavator / Brand New Excavator / mini Excavator

Product Description

Bucket capacity	0.045m3	Bulldozer blade width	1250mm
Engine model	Laidong 385	Bulldozer height	206mm
Rated output power/speed	29kw/39 horsepower	Track center distance	1020mm
Maximum driving speed	1.7km/h	Standard track shoe width	230mm
Rotation speed	10rpm	Platform ground clearance	419mm
Maximum climbing ability	30 °	Standard bucket width (with/without edge teeth)	434/395mm
Maximum excavation force	8kN	The total length of the track	1546mm
Total length (transportation)	3110mm	Maximum excavation height	3483mm
Total width	1250mm	Maximum unloading height	2442mm
Total height (with/without ceiling)	2280 (2242) mm	Maximum excavation depth	2291mm
Maximum cleaning depth of bulldozer	290mm	Maximum vertical arm excavation depth	1749mm
Track	Rubber	Maximum excavation distance	3791mm
Work pressure	16MPa	Minimum turning radius at the front end	1394mm
Hydraulic oil tank capacity	19L	Maximum excavation ground distance	3733mm
Engine oil capacity	3.5L	Maximum pushing height	174mm
Fuel tank capacity	11L	Deepest pushing height	196mm
Overall dimensions	3468 * 1250 * 2613mm	Overall weight	1770kg
